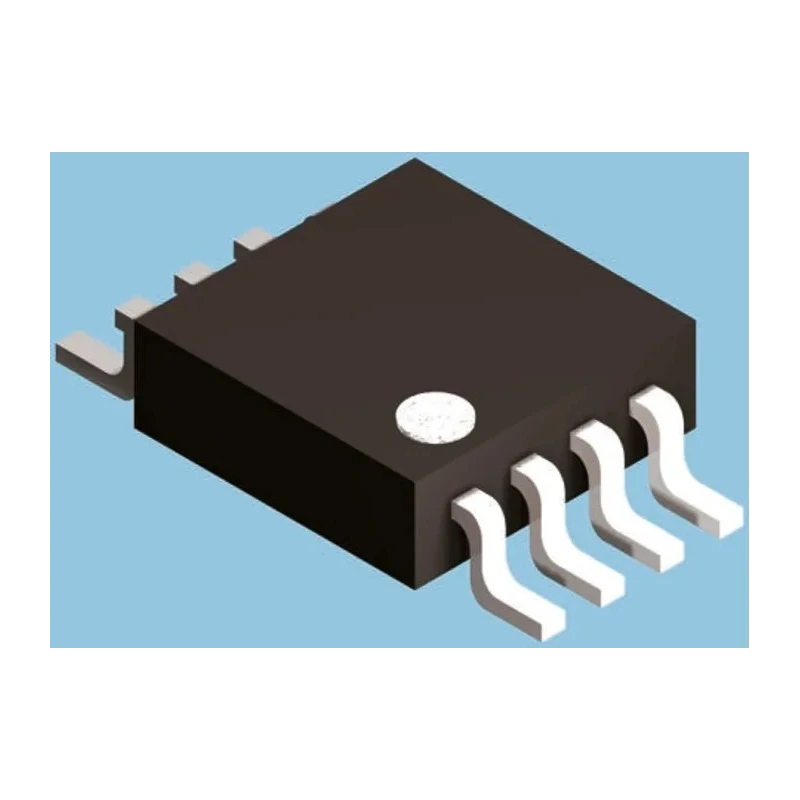

DiodesZetex Operational Amplifier 1 MHz 2-Channel 8-Pin SOP Package 2.5-5.5 V LMV358SG-13
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1.5mm |
| Length | 4.95mm |
| Model | LMV358SG-13 |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | LMV321/324/358 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 10 nA |
| Vos - Input Offset Voltage | 7 mV |
| Slew Rate | 1V/μs |
| Input Offset Current | 50 nA |
Key Features
- This device is packaged in an 8-pin SOP package suitable for surface mounting.
- Designed for general-purpose applications with low input bias and offset currents.
- Operates reliably within a temperature range of -40°C to 85°C.
- Achieves a slew rate of 1 V/μs providing efficient signal response.
- Input offset voltage and input offset current are minimized to 7 mV and 50 nA respectively.
- Ideal for use in industrial, commercial, and instrumentation applications requiring stable dual operational amplifiers.
Product Description
DiodesZetex LMV358SG-13 operational amplifier is a high performance dual-channel amplifier designed for low voltage operation with a supply voltage range from 2.5 V to 5.5 V. With a gain bandwidth product of 1 MHz, this device is suitable for a wide range of general-purpose amplification tasks in electronics.
The 8-pin SOP package ensures compact size and easy surface mounting on PCBs, making it ideal for dense circuit designs. The device exhibits low input bias current of just 10 nA and an input offset voltage of 7 mV, which together contribute to high precision signal processing.
Operating within an extended temperature range of -40°C to 85°C, the LMV358SG-13 is robust enough for harsh industrial and commercial environments. A typical slew rate of 1 V/μs supports efficient signal transitions and enables accurate waveform reproduction.
Physical dimensions are 4.95 mm in length, 3.95 mm in width, and 1.5 mm in height, allowing for space-saving designs. The part belongs to the LMV321/324/358 series, known for reliable operational amplifier performance.
This dual channel operational amplifier is well-suited for applications in industrial control systems, laboratory instrumentation, audio equipment, and telecommunications, where stable and precise amplification is essential.
Dual-channel operation offers versatility for multi-signal tasks. Surface mount SOP package provides ease of assembly and reliability. Low power consumption due to operation at a maximum 5.5 V supply. Wide operating temperature range from -40°C to 85°C for industrial use.
Low input bias and offset currents ensure accurate signal amplification. Explore a wide range of Operational Amplifiers and semiconductor components at EnvMart to find the best fit for your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This operational amplifier operates with a supply voltage range from 2.5 V to 5.5 V.
The gain bandwidth product (GBP) of the LMV358SG-13 is 1 MHz, making it suitable for a variety of general-purpose amplification tasks.
The physical dimensions of this operational amplifier are 4.95 mm in length, 3.95 mm in width, and 1.5 mm in height.
The LMV358SG-13 features dual-channel operation, allowing it to handle multiple signals simultaneously.
The input offset voltage of the LMV358SG-13 is minimized to 7 mV, contributing to its precision in signal processing.
This operational amplifier operates reliably within a temperature range of -40°C to 85°C.
The typical slew rate for this model is 1 V/μs, which supports efficient signal transitions.
It is packaged in an 8-pin SOP (Small Outline Package) suitable for surface mounting.
The input bias current of the LMV358SG-13 is 10 nA, which helps in achieving high precision in signal amplification.
This operational amplifier is part of the LMV321/324/358 series, known for reliable operational amplifier performance.
The input offset current for the LMV358SG-13 is 50 nA, which contributes to its accuracy in amplification tasks.
This operational amplifier is well-suited for industrial control systems, laboratory instrumentation, audio equipment, and telecommunications.
