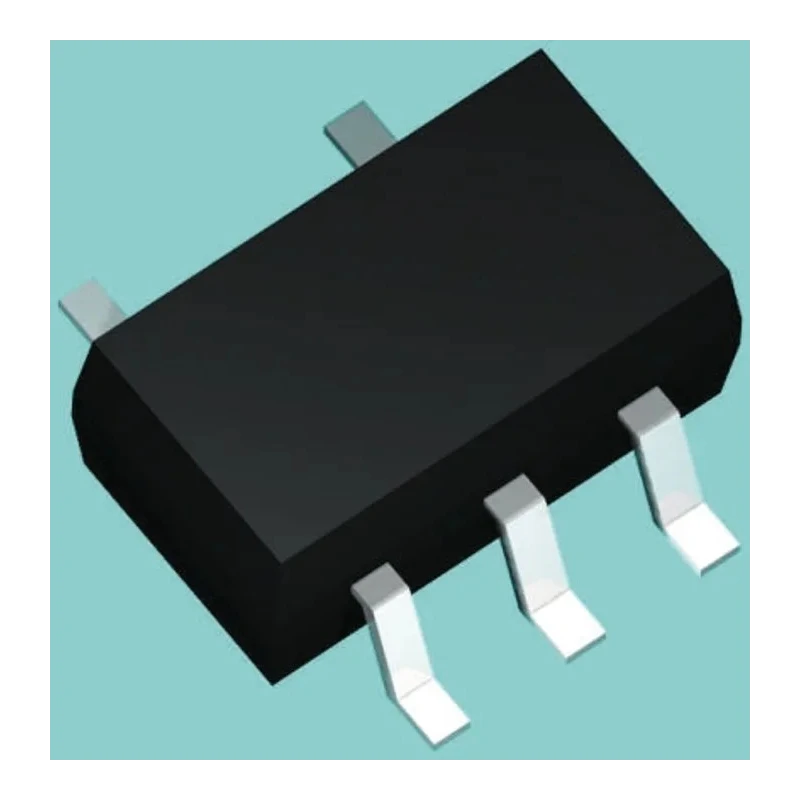

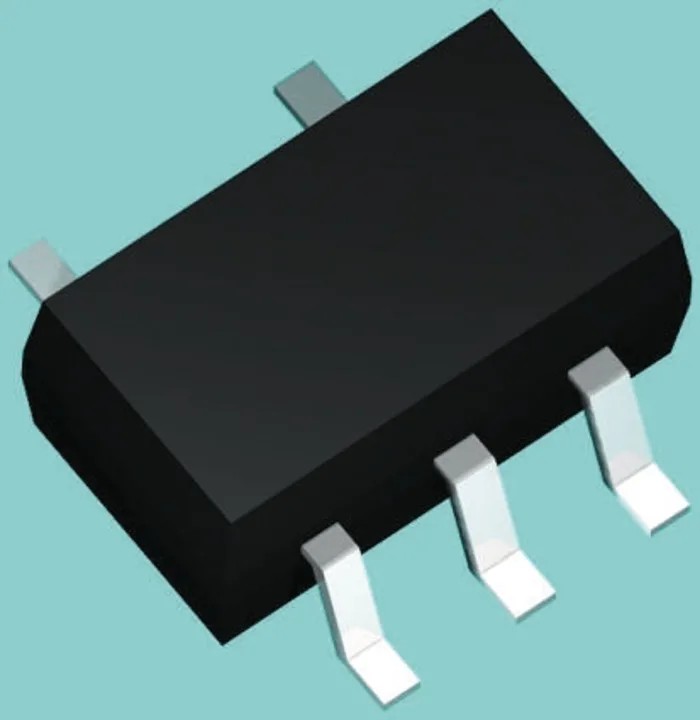

ROHM 4-Element ESD Protection Diode Surface Mount, 30 W Peak Pulse Power, 5-Pin UMD RSA6.1ENTR

ROHM RSA6.1ENTR is a high reliability, 4-element ESD protection diode designed for robust transient voltage suppression in electronic circuits. This surface mount diode operates with a peak pulse power dissipation of 30 W, making it ideal for protecting sensitive semiconductor devices from electrostatic discharge events.

The device features a common anode configuration and a low minimum breakdown voltage of 6.1 V, offering effective bidirectional protection in compact form. It can reliably perform in extreme environments, operating across a wide temperature range from -55°C up to 150°C.

The compact UMD package, measuring 2 mm in length, 1.25 mm in width, and 0.9 mm in height, permits dense PCB installations without sacrificing protection quality. The 5-pin layout and four elements per chip design enhance its efficiency in suppressing transient voltage spikes and reducing leakage currents, which do not exceed 1 microampere.

This ESD protection diode is particularly suitable for industrial electronics, power supply circuits, telecommunication systems, and consumer electronics to safeguard against voltage surges and electrostatic discharges.

This diode features a common anode diode configuration for effective ESD protection. It has a minimum breakdown voltage of 6.1 volts. Operates reliably within a temperature range from -55°C to 150°C. The device includes four elements per chip, which enhances transient voltage suppression.

Its compact UMD package measures 2mm in length, 1.25mm in width, and 0.9mm in height. Maximum reverse leakage current is as low as 1 microampere. Test current is rated at 1 milliampere ensuring performance validation. Designed for surface mount technology to enable easy PCB integration.

Not compliant with automotive standards, suitable for general electronics protection.

ROHM's RSA6.1ENTR diode is a critical component for engineers involved in designing circuit protection and ESD mitigation across various electronics manufacturing sectors. This product is part of EnvMart's ESD Protection Diode category, offering reliable protection solutions for semiconductors and discrete electronics components.
