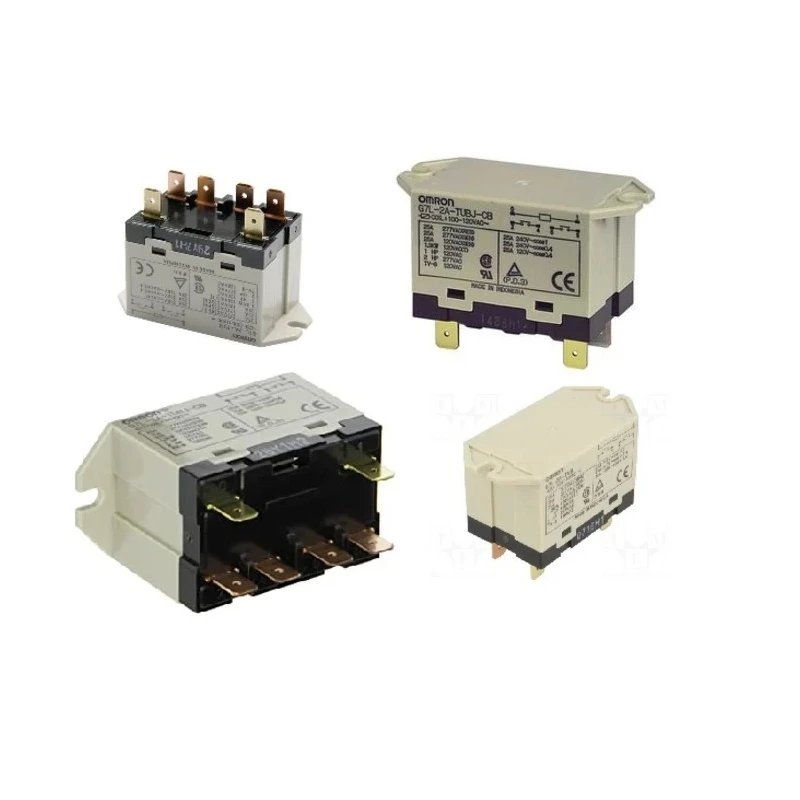

Omron Power Relay DPST 24V DC Coil Voltage 1A Switching Current G7L-2A-TUB DC24
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Omron |
| Height | 15mm |
| Length | 50mm |
| Model | G7L-2A-TUB DC24 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G7L |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1A |
| Terminal type | Screw |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 303Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 240V ac |
| Coil Power | 1.9W |
Key Features
- This relay has a switching current rating of 1A for controlling low-power circuits.
- It features a screw terminal type for secure and easy PCB mounting.
- The coil resistance measures 303 ohms, operating at 1.9 watts coil power.
- Constructed with silver alloy contacts to ensure low contact resistance and durability.
- Supports switching DC voltage up to 60V and AC voltage up to 240V.
- Operates reliably within temperature ranges from -40°C to 70°C.
- The relay dimensions are 50mm length, 15mm height, and 10mm width for compact PCB integration.
- Meets RoHS standards, ensuring compliance with environmental regulations.
Product Description
Omron G7L-2A-TUB DC24 power relay is a dual-pole single-throw (DPST) relay designed for PCB mounting with screw terminals. It operates with a 24V DC coil voltage and provides a switching current capacity of 1 ampere, suitable for controlling various electrical circuits in industrial and automation applications.
Featuring robust silver alloy contacts, the relay ensures reliable switching with a minimum contact resistance of 100 milliohms. Its coil resistance of 303 ohms corresponds to a coil power rating of 1.9 watts, delivering efficient operation. The device supports switching DC voltages up to 60V and AC voltages up to 240V, making it versatile for different electrical systems.
Designed to function within a temperature range of -40°C to 70°C, this relay is well suited for demanding environments. The compact physical dimensions - 50mm length, 15mm height, and 10mm width - enable easy integration into PCB layouts. All insulation materials are flame-resistant, enhancing safety and durability.
This power relay complies with RoHS environmental standards, supporting sustainable use. It is manufactured in Indonesia and aims to improve production efficiency by allowing ready insertion into machinery.
This relay includes a DPST contact configuration suitable for switching multiple circuits simultaneously. The screw terminal mounting simplifies installation and maintenance on printed circuit boards. Silver alloy contacts provide enhanced conductivity and resistance to corrosion.
The coil's electrical specifications ensure long-term reliable operation under continuous duty. Compact size allows the relay to fit into tight PCB spaces for industrial automation designs. Designed for use in electrical, automation, and control systems across various industries.
Explore more Power Relay options and related components in the Electronics & Electricals category at EnvMart to support your industrial automation and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Omron G7L-2A-TUB DC24 power relay has a switching current rating of 1 ampere, suitable for controlling low-power circuits.
This model has dimensions of 50mm in length, 15mm in height, and 10mm in width, allowing for compact PCB integration.
The relay operates with a coil voltage of 24V DC, which is necessary for its activation.
It supports switching DC voltages up to 60V and AC voltages up to 240V, making it versatile for different electrical systems.
This unit features a screw terminal type for secure and easy mounting on printed circuit boards (PCBs).
The G7L-2A-TUB DC24 has a dual-pole single-throw (DPST) contact configuration, allowing it to switch multiple circuits simultaneously.
The coil resistance measures 303 ohms, which corresponds to a coil power rating of 1.9 watts.
The contacts are constructed from silver alloy, which ensures low contact resistance and enhances durability.
It operates reliably within a temperature range of -40°C to 70°C, making it suitable for demanding environments.
Yes, it meets RoHS standards, ensuring compliance with environmental regulations.
This power relay is manufactured in Indonesia.
This relay is designed for use in electrical, automation, and control systems across various industries.
