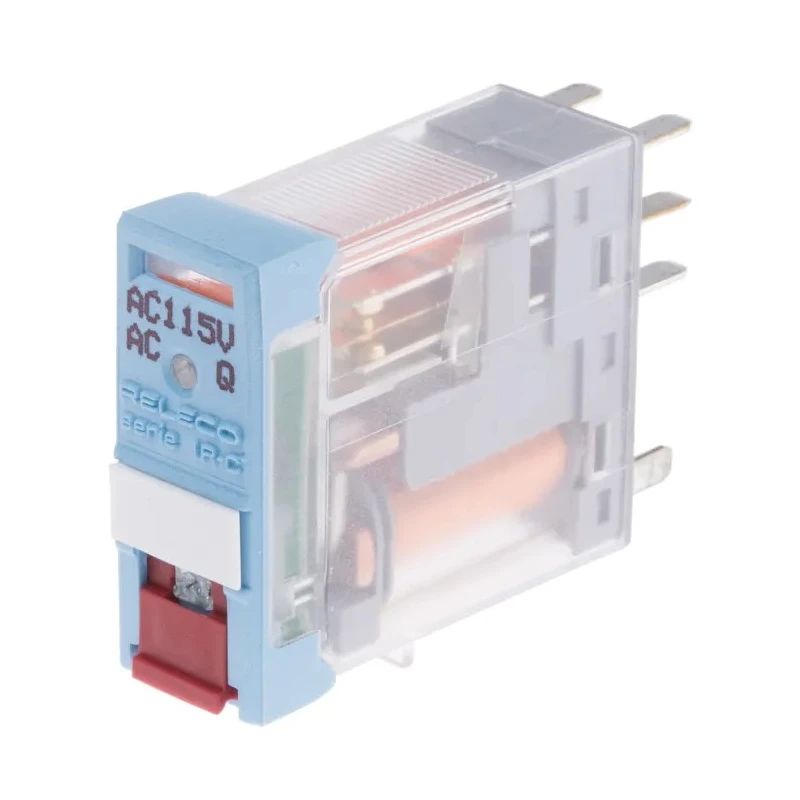

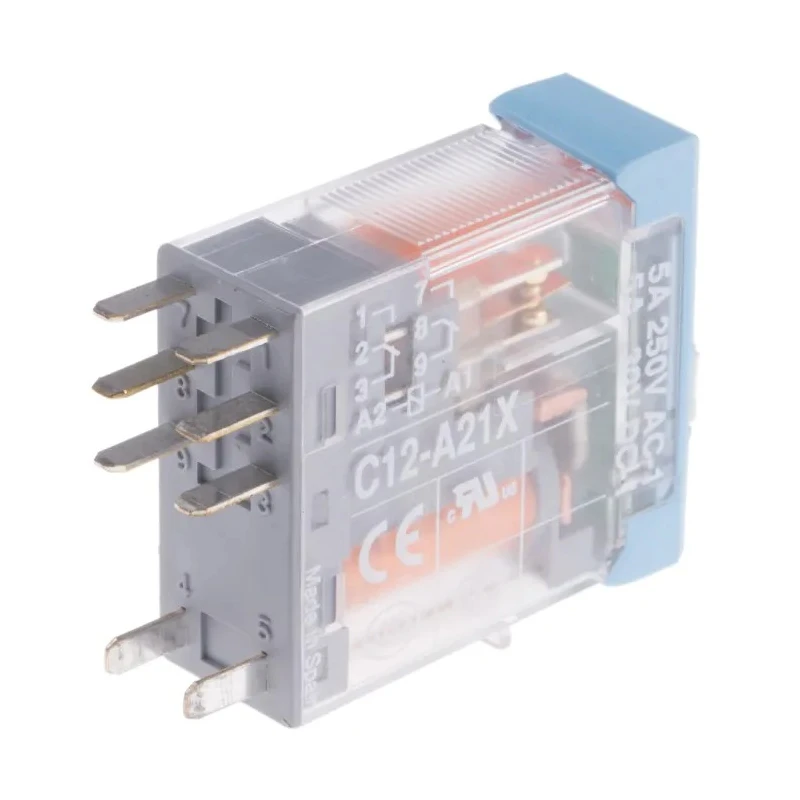

Releco Power Relay PCB Mount DPDT 115V AC Coil 5A Switching Current C12A21X115A

Releco C12A21X115A Power Relay is a highly reliable PCB-mounted power relay designed with a 115V AC coil and capable of switching 5 amperes of current. It features a dual-pole double-throw (DPDT) contact configuration, making it suitable for versatile industrial applications including automation, electrical control systems, and signal conditioning.

The relay mounts onto PCBs using through-hole terminals for secure fit and durability during operation. Its coil voltage is precisely 115V AC, with a coil resistance of 7.3 kΩ and coil power consumption of just 1.1 watts, optimizing energy efficiency without compromising performance.

Operating across a wide temperature range from -20 to +60 degrees Celsius, this relay maintains reliable functionality under varying environmental conditions. It supports a maximum switching AC voltage of 250 volts and a maximum DC switching voltage of 30 volts. The contact material is gold plated which ensures superior electrical conductivity and resistance against corrosion.

The physical dimensions of this compact relay are 28.8 mm in length and 35.4 mm in height, designed to fit standard industrial control panels with minimal space requirements. This product meets multiple international standards including UL, RoHS, IEC, EN, and CSA certifications, guaranteeing compliance and safety.

Additional features include robust industrial terminals, LED indication, and a mechanical flag indicator. It also offers a dual function test button for push-to-test or lift-to-latch operations. Accessories such as 16 mm wide sockets and bridge bars for coil and contact linking are available separately.

This relay is engineered for industrial automation, electrical distribution, manufacturing control, and critical power switching tasks. It is suitable for applications requiring reliable and efficient PCB-mounted contactors with a dual-pole double-throw switching mechanism.

Compact size and thorough certifications make it an ideal choice for engineers and system integrators in demanding environments. Explore more products in the Power Relays category to find complementary components and enhance your electrical system designs with Releco’s trusted solutions.
