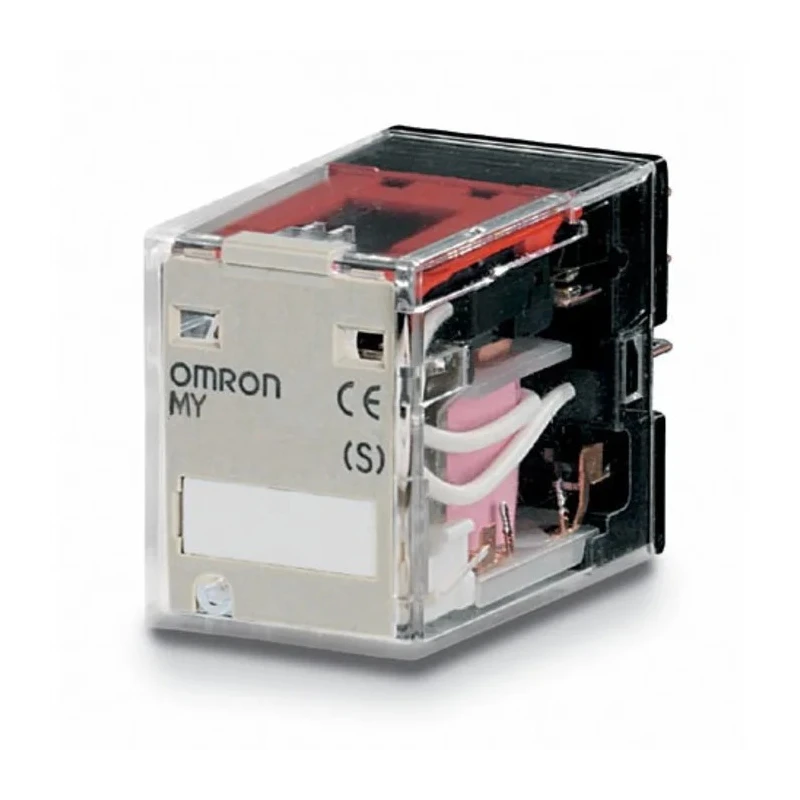

Omron Non-Latching DPDT Power Relay 12V ac Coil 10A Switching Current MY2N AC12(S)

Omron MY2N AC12(S) non-latching relay is a miniature plug-in power relay tailored for industrial automation and electrical control applications. It operates on a 12V AC coil delivering a 10A switching current with double-pole double-throw (DPDT) contact configuration, suitable for diverse switching needs.

The relay’s compact plug-in design (28mm height, 17mm width, 21.5mm length) facilitates easy installation and wiring reduction, enhancing operational efficiency. Silver alloy contact material guarantees high conductivity and minimizes contact resistance to 100 milliohms, ensuring reliable operation over extended usage.

Coil resistance of 46 Ohms and coil power of 1.3W contribute to efficient coil operation. It supports switching voltages up to 250V AC and 125V DC, catering to both AC and DC load switching applications. The relay withstands a broad temperature range of -55°C to 70°C, providing durability in demanding environments.

Compliance with CE, RoHS, and VDE certifications underscores its quality and safety standards. The MY series relays improve sequence control and power applications by reducing wiring work by approximately 60% when combined with compatible sockets.

This relay finds extensive application in industrial automation, HVAC systems, manufacturing controls, and other commercial electrical installations requiring dependable Power Relays with high switching capacity.

Features dual-pole double-throw (DPDT) contacts for versatile switching operations. Operates on 12V AC coil voltage with a coil resistance of 46 Ohms. Supports switching voltage of up to 250V AC and 125V DC. Compact plug-in design measuring 28mm height, 17mm width, and 21.5mm length.

Constructed with silver alloy contacts providing low contact resistance of 100mΩ. Coil power consumption is 1.3W ensuring efficient energizing. Wide operating temperature range from -55°C up to 70°C for harsh environments.

Conforms to CE, RoHS, and VDE standards for quality and safety compliance. Designed for reduced wiring and high conductivity applications in sequence control and power circuits. Ideal for use in industrial, automation, electrical control, and HVAC systems.
