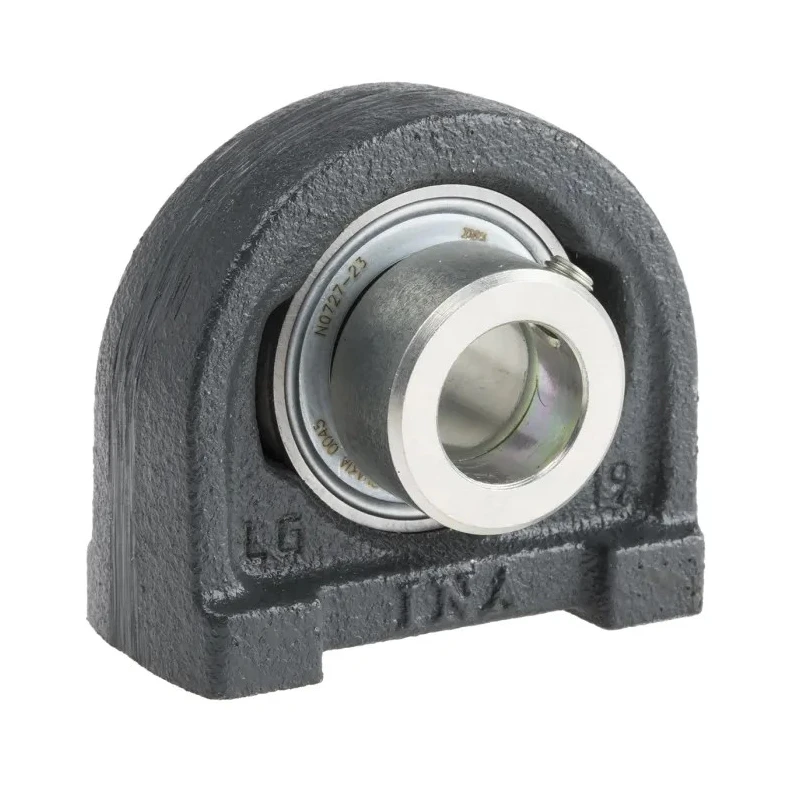

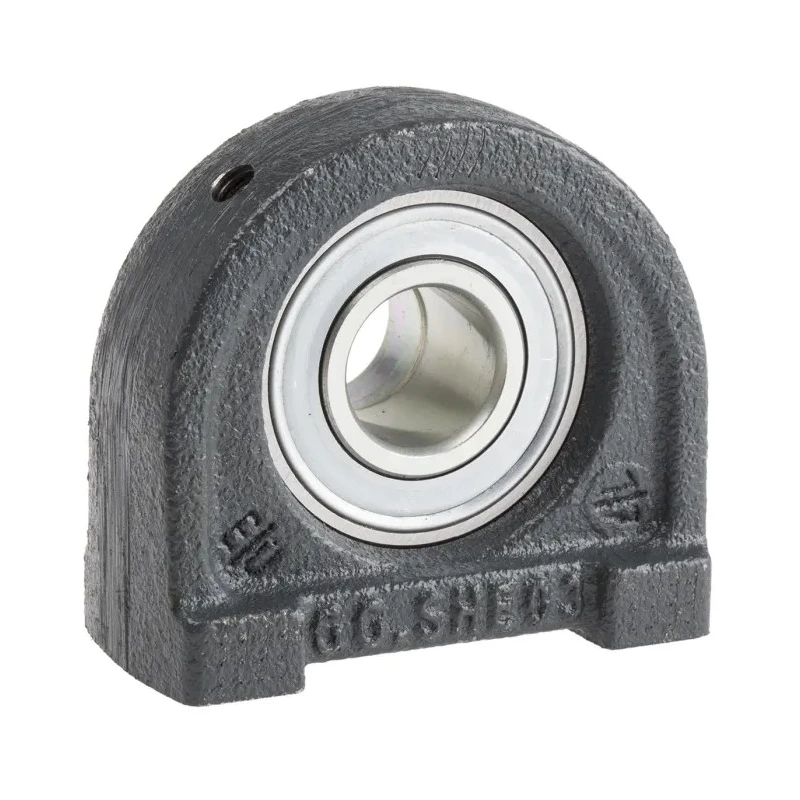

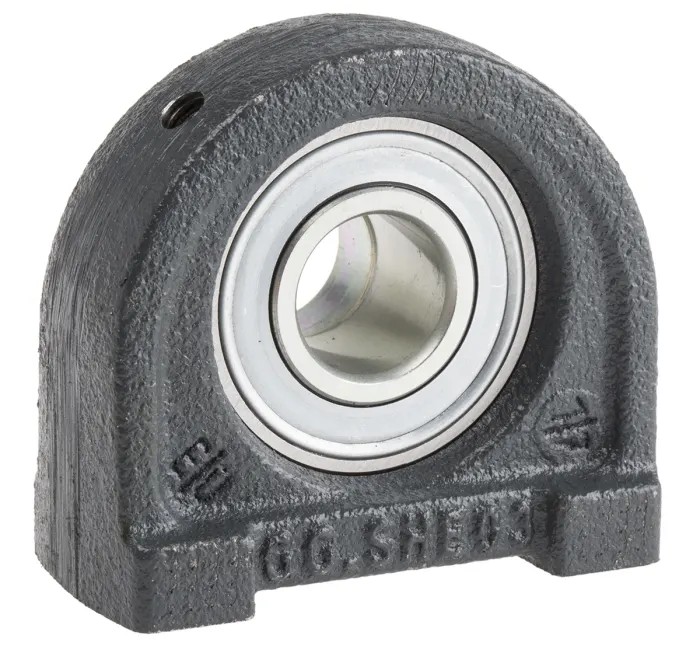

INA Plummer Block House Cast Iron 17 mm ID PSHE17-XL

INA PSHE17-XL Plummer Block House with a 17 mm inside diameter is a cast iron housing unit designed to support rotary bearings in industrial machinery. The robust construction ensures durability in demanding mechanical environments while maintaining precision shaft alignment.

Constructed from high-quality cast iron, this plummer block housing offers a length of 63 mm, a depth of 30 mm, and a height of 57 mm, with a centre height of 30.2 mm. The M8 mounting holes spaced 47 mm centre-to-centre provide secure installation flexibility.

The unit integrates a spherical outer bearing ring surface combined with a concave housing bore. This design compensates for static angular misalignment of the shaft, enhancing operational reliability and performance under diverse conditions.

As part of the INA PSHE series, the PSHE17-XL model is engineered for extended product life and to support energy-saving applications. This housing unit is ready-to-fit and matches INA radial insert ball bearings for optimal function.

Its cast iron material construction makes it suitable for use in industrial manufacturing, mechanical repair, and other heavy-duty rotary bearing applications in areas such as power plants, HVAC, and material handling equipment.

Features a 17 mm inside diameter for precise shaft fitting. Constructed from durable cast iron for long service life. Includes M8 mount holes with 47 mm centre-to-centre spacing. Dimensions include 63 mm length, 30 mm depth, and 57 mm height.

Centre height of 30.2 mm ensures optimal shaft alignment. Designed to compensate for static angular misalignment through spherical bearing outer ring. Suitable for heavy-duty industrial applications requiring sturdy housing units.

Matching bearings and housings optimize function and reliability. Part of INA's PSHE series renowned for extended product life and energy savings. Explore more industrial-grade plummer block housings and related rotary bearing units at EnvMart for reliable mechanical solutions.
