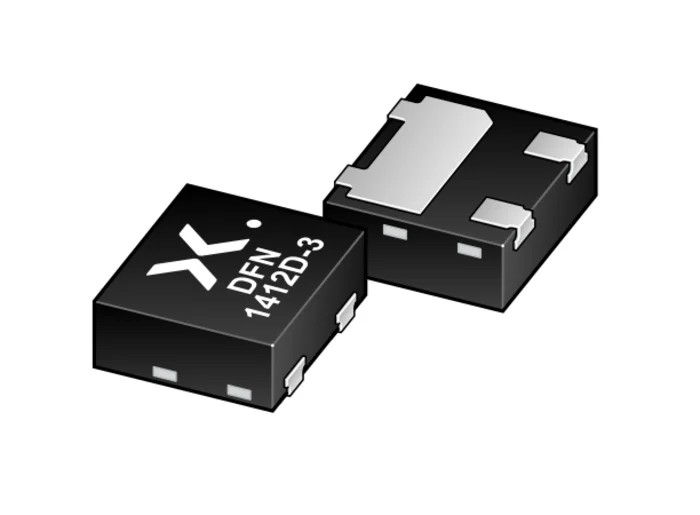

Nexperia Resistor-Equipped Transistor NPN 100 mA 50 V 3-Pin DFN1412D-3 PDTC114EQC-QZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PDTC114EQC-QZ |
| Mount Type | Surface |
| Series | PDTC114E |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1412D-3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | 50V |
| Minimum DC Current Gain hFE | 30 |
| Transistor Polarity | NPN |
| Maximum Emitter Base Voltage VEBO | 10V |
| Maximum Collector Base Voltage VCBO | 50V |
| Automotive Standard | AEC-Q101 |
| Maximum DC Collector Current Idc | 100mA |
| Transistor Configuration | NPN |
| Maximum Transition Frequency ft | 250MHz |
Key Features
- The transistor features built-in resistors to simplify circuit design.
- It supports a maximum DC collector current of 100 mA and maximum collector-emitter voltage of 50 V.
- The device operates reliably between -55°C and 150°C temperatures.
- Its low profile plastic package height is 0.5 mm and has side-wettable flanks.
- Suitable for automatic optical inspection and digital applications.
- Cost-effective alternative for BC857 series in switching and controlling IC inputs.
- Meets RoHS compliance and automotive standard AEC-Q101 for quality assurance.
Product Description
Nexperia PDTC114EQC-QZ is a resistor-equipped NPN transistor designed for surface mount applications in compact 3-Pin DFN1412D-3 plastic package with a low height of 0.5 mm. It supports a maximum DC collector current of 100 mA and a collector-emitter voltage of 50 V, making it suitable for low power switching and digital circuits.
The transistor integrates built-in resistors, reducing component counts and simplifying circuit design, which lowers PCB complexity and manufacturing costs. Its side-wettable flanks facilitate reliable solder joints and support automatic optical inspection (AOI) in manufacturing processes.
With a minimum DC current gain (hFE) of 30 and a maximum transition frequency of 250 MHz, the PDTC114EQC-QZ delivers efficient amplification and switching performance for various electronic components in industrial, automotive, and digital applications.
The device's operating temperature range extends from -55°C to 150°C, ensuring reliable operation in harsh environments. Meeting RoHS compliance and automotive AEC-Q101 standards certifies its quality and suitability for automotive electronics.
The transistor features built-in resistors to simplify circuit design. It supports a maximum DC collector current of 100 mA and maximum collector-emitter voltage of 50 V. Wide temperature range operation from -55°C to 150°C.
Compact 3-Pin DFN1412D-3 plastic package with 0.5 mm height. Side-wettable flanks enable excellent solderability and inspection. Suitable for digital switching and controlling IC inputs. Compliance with RoHS and automotive AEC-Q101 standards.
This transistor is widely used in electronic manufacturing, automotive control systems, industrial equipment, and other applications requiring reliable low current switching and amplification components.
Explore EnvMart's comprehensive catalogue for additional semiconductor components and discrete transistors compliant with automotive and industrial standards.
Explore more products in our Bipolar Transistors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum DC collector current for this model is 100 mA.
It supports a maximum collector-emitter voltage of 50 V.
The operating temperature range extends from -55°C to 150°C.
It comes in a compact 3-Pin DFN1412D-3 plastic package with a height of 0.5 mm.
The minimum DC current gain (hFE) is 30.
The maximum transition frequency is 250 MHz.
Yes, it meets RoHS compliance and the automotive standard AEC-Q101.
This model is an NPN transistor.
The maximum emitter-base voltage (VEBO) is 10 V, and the maximum collector-base voltage (VCBO) is 50 V.
It is suitable for low power switching and digital circuits, as well as automotive control systems and industrial equipment.
The device integrates built-in resistors, which reduce component counts and simplify circuit design.
