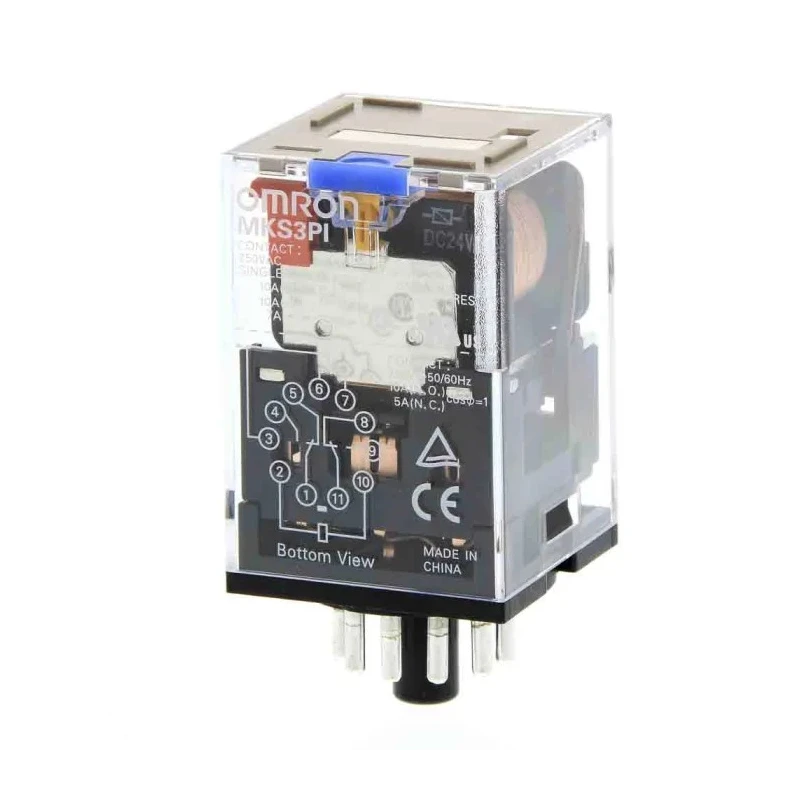

Omron General Purpose Relay 24V Coil Voltage 10A Switching Current 3PDT Contact Configuration MKS3PI DC24

Omron MKS3PI DC24 General Purpose Relay is a high-quality relay designed for robust control and switching tasks in industrial automation, electrical systems, and control cabinets. It features a 24V DC coil and a 3PDT (Triple Pole Double Throw) contact configuration, enabling simultaneous multi-circuit switching for complex control operations.

The relay employs silver alloy contacts capable of handling 10A switching current at both 250V AC and DC voltages, allowing it to support loads up to 150W. Its coil resistance of 430 ohms ensures defined drive characteristics at 24V, with a low coil power consumption of just 1.4W, which reduces energy use and driver power requirements.

Its plug-in terminal type and socket mount design facilitate rapid replacement and straightforward maintenance without tools. Rated for operation between -40°C and 60°C, it performs reliably within standard industrial ambient temperature ranges.

Contact resistance is maintained at 100 milliohms to minimize voltage drop across closed contacts, ensuring efficient switching with minimal losses. The device complies with IEC, RoHS, and UL standards, making it suitable for deployment in regulated industrial environments requiring certified safety and environmental adherence.

Applications include motor control interlocks in automation panels, signal routing in control logic racks, and load shedding or relay-based protection schemes. It is also ideal for DC load switching in battery-backed power systems.

Designed for industrial automation and electrical control applications. Equipped with Silver Alloy contacts to ensure durability and efficient current switching. Supports switching power up to 150W at 250V AC or DC. Low coil power consumption of 1.4W enhances energy efficiency.

Operates reliably in temperatures ranging from -40°C to 60°C. Plug-in socket mount type enables easy installation and maintenance. Contact resistance of 100mΩ minimizes voltage drops and improves performance. Conforms to IEC, RoHS, and UL standards for safety and quality assurance.
