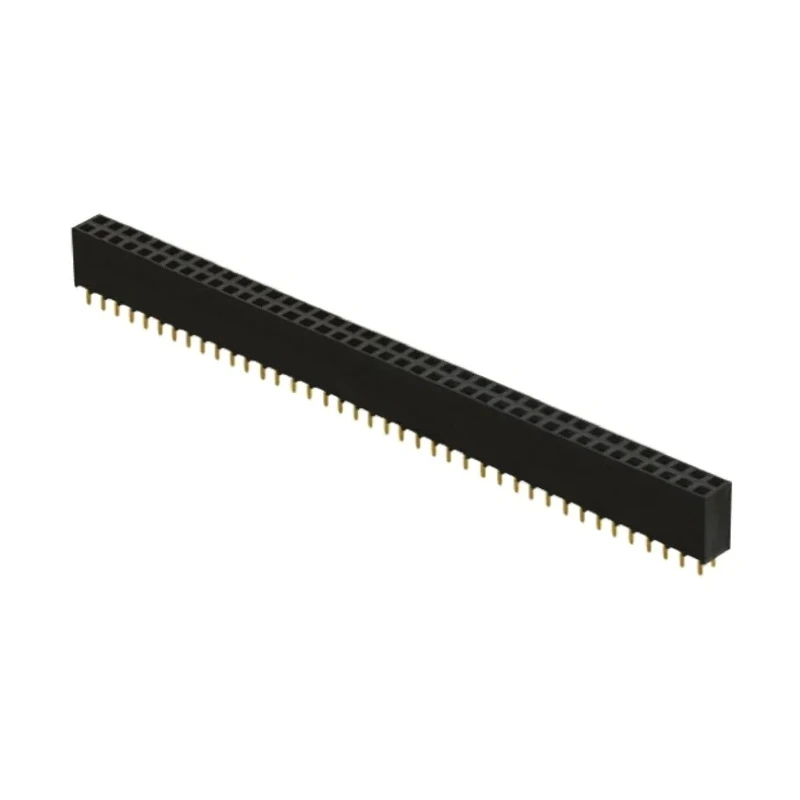

Samtec PCB Socket 100-Contact, 2 Row, 2.54 mm Pitch, Through Hole, Straight Orientation SSW-150-01-G-D

Free Delivery in India | Lowest Global Shipping Charges

Samtec PCB Socket 100-Contact, 2 Row, 2.54 mm Pitch, Through Hole, Straight Orientation SSW-150-01-G-D

Name: Samtec PCB Socket 100-Contact, 2 Row, 2.54 mm Pitch, Through Hole, Straight Orientation SSW-150-01-G-D
Brand: Samtec
SKU: 366085
Price: 15.89 USD
Availability: InStock



Category PCB Sockets Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	550V
Brand	Samtec
Orientation	Straight
Current	6.9A
Model	SSW-150-01-G-D
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Bronze
Series	SSW
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	100
Contact Gender	Female
Connector System	Board-to-Board
Row Pitch	2.5mm

Key Features

The socket has a 2.54 mm pitch and 2.5 mm row pitch for precise alignment.
It supports a current rating of 6.9 A and voltage rating up to 550 V.
Constructed with a liquid crystal polymer housing for durability and stability.
Contacts are phosphor bronze with 0.51 μm gold plating ensuring excellent conductivity and corrosion resistance.
Designed for through hole solder termination type with straight orientation mounting.
Operating temperature range from -55°C to 125°C enhances its use in harsh environments.
Connector system is board-to-board with female contact gender for compatibility.
This SSW series socket is ideal for industrial, electronic assembly, and manufacturing applications requiring high-density connections.

Product Description

Samtec SSW-150-01-G-D PCB Socket is a 100-contact, 2-row, straight through hole socket designed with a 2.54 mm pitch and high-quality liquid crystal polymer housing. Its solder termination type is suitable for reliable board-to-board electrical connections in dense electronic assemblies.

The contacts are made from phosphor bronze with a durable 0.51 µm gold plating, offering excellent conductivity, wear resistance, and low contact resistance. These sockets support a continuous current of 6.9 A and voltage of up to 550 V, making them suitable for demanding electrical load conditions.

With an operating temperature range from -55°C to 125°C, this PCB socket is well suited for use in industrial, laboratory, manufacturing, commercial electronic equipment, and power connector applications. The product’s straight orientation and through hole mount type provide robust mechanical retention and ease of assembly in PCB designs.

The SSW series supports mating with compatible 2.54 mm pitch headers such as TSW series through hole and TSM SMT headers, facilitating versatile board interconnect solutions. The socket's 2.54 mm pitch enables high-density connector configurations.

2-row configuration with female contact gender supports diverse connector pairing. Liquid crystal polymer housing ensures mechanical strength and thermal stability. Gold-plated phosphor bronze contacts provide superior electrical and mechanical performance.

Through hole mounting provides strong and reliable solder joints for long-term use. Suitable for detailed electronic assemblies, industrial electronics, and manufacturing applications. Wide operating temperature range enables use in harsh environments.

Compatible with Samtec TSW and TSM series headers for flexible design options. Explore more PCB Sockets and connectors at EnvMart to find the right components for your industrial electronics, power distribution, and electronic manufacturing needs.
