Microchip Complex Programmable Logic Device ATF750CL-15XU EEPROM 10 Macro Cells 42 I/O 7.5 ns 24-Pin TSSOP

Free Delivery in India | Lowest Global Shipping Charges

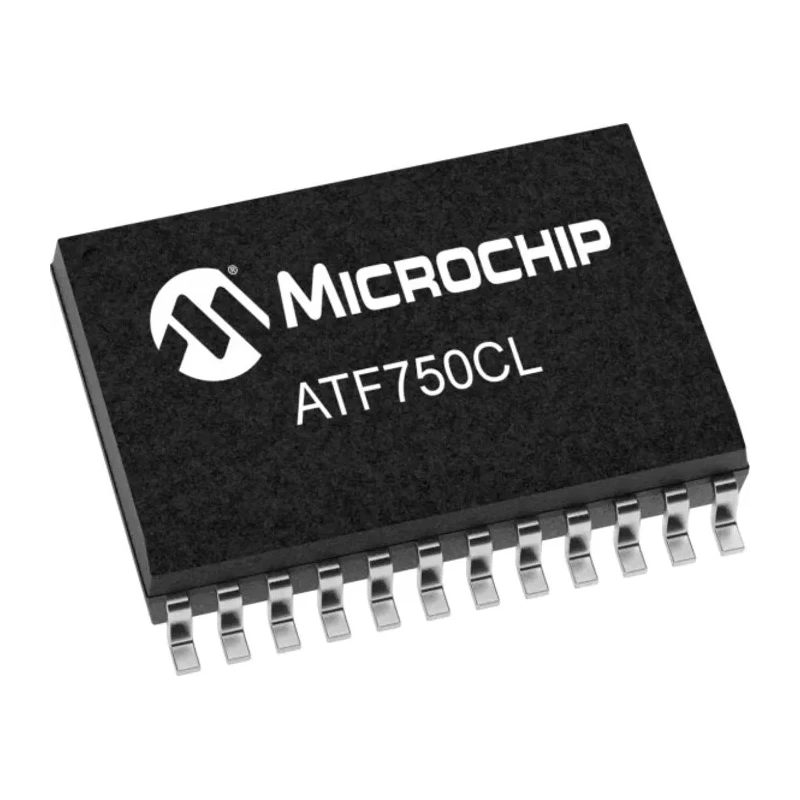

Microchip Complex Programmable Logic Device ATF750CL-15XU EEPROM 10 Macro Cells 42 I/O 7.5 ns 24-Pin TSSOP

Name: Microchip Complex Programmable Logic Device ATF750CL-15XU EEPROM 10 Macro Cells 42 I/O 7.5 ns 24-Pin TSSOP
Brand: Microchip
SKU: 307331
Price: 543.04 INR
Availability: InStock



Category Programmable Logic ICs Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	950μm
Length	7.8mm
Model	ATF750CL-15XU
Mount Type	Surface
Memory type	EEPROM
Series	ATF750C(L)
Maximum Operating Temperature	85°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Pin Count	24
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	4.5V
Maximum Propagation Delay Time	7.5ns
Maximum Operating Frequency	71MHz
Number of Macro Cells	10
Number of User I/Os	42

Key Features

High-density complex programmable logic device with EEPROM memory technology.
Provides 10 macro cells and 42 input/output pins for versatile logic implementation.
Operates with a maximum propagation delay time of 7.5 ns for high-speed performance.
Designed for surface mount with a 24-pin TSSOP package format.
Supports re-programmability for flexible system updates.
Wide operating voltage range from 4.5 V to 5.5 V suitable for various applications.
Temperature tolerance from -40°C to 85°C to ensure reliable operation in diverse environments.
Maximum operating frequency of up to 71 MHz for fast logic processing.

Product Description

The Microchip ATF750CL-15XU is a high-performance complex programmable logic device (CPLD) that leverages EEPROM technology to provide reliable and flexible programmable logic. It incorporates 10 macro cells and 42 user input/output pins, enabling complex logic functions suitable for industrial, manufacturing, and electronic system design applications.

This device supports surface mounting in a compact 24-pin thin shrink small outline package (TSSOP), making it an excellent choice for space-constrained PCB designs. With a maximum propagation delay time of 7.5 ns and operating frequency up to 71 MHz, it ensures swift logic switching and processing.

Designed with a wide supply voltage tolerance from 4.5 V to 5.5 V and a broad operating temperature range between -40°C and 85°C, this CPLD can perform robustly in varying environmental conditions commonly found in industrial and commercial electronics.

The ATF750CL-15XU supports re-programmability, allowing engineers to modify logic configurations after initial programming, thereby enhancing design flexibility and reducing developmental costs.

Typical use cases include embedded system control, digital logic implementation, and rapid prototyping. The device does not conform to automotive standards and lacks in-system programmability and individual output enable control.

High-density CPLD with EEPROM technology. 10 macro cells and 42 user I/O pins for complex logic. Fast switching with 7.5 ns maximum propagation delay. Compact 24-pin TSSOP package ideal for surface mount applications. Wide operating voltage and temperature ranges.

Supports re-programmability for design flexibility. Maximum operating frequency of 71 MHz. Robust for industrial, manufacturing, and electronic applications. Not suited for automotive standard compliance. Explore our comprehensive selection of programmable logic devices and CPLDs at EnvMart for advanced electronic designs and prototyping needs.
