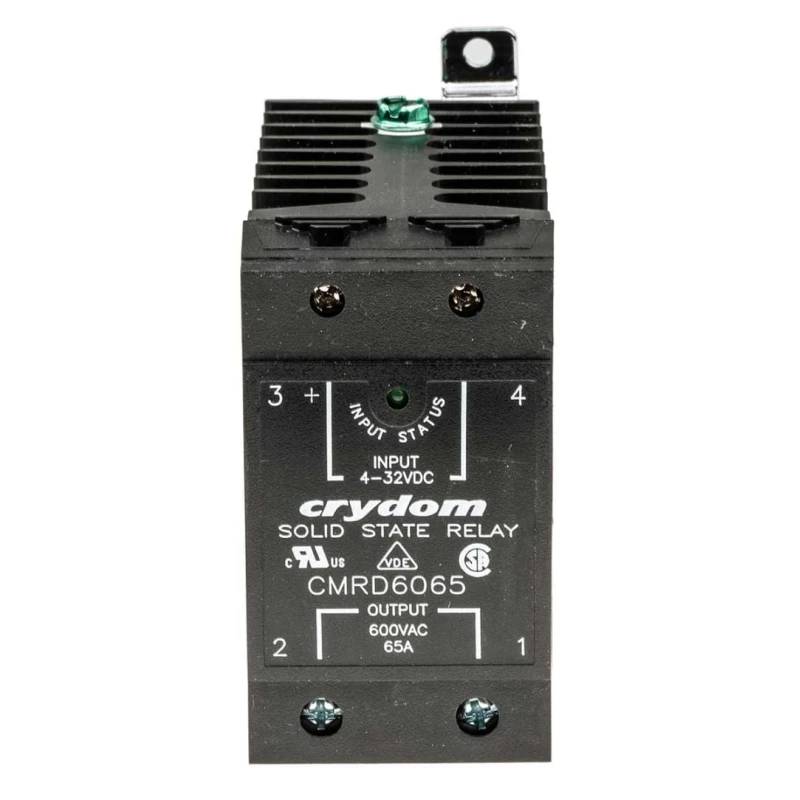

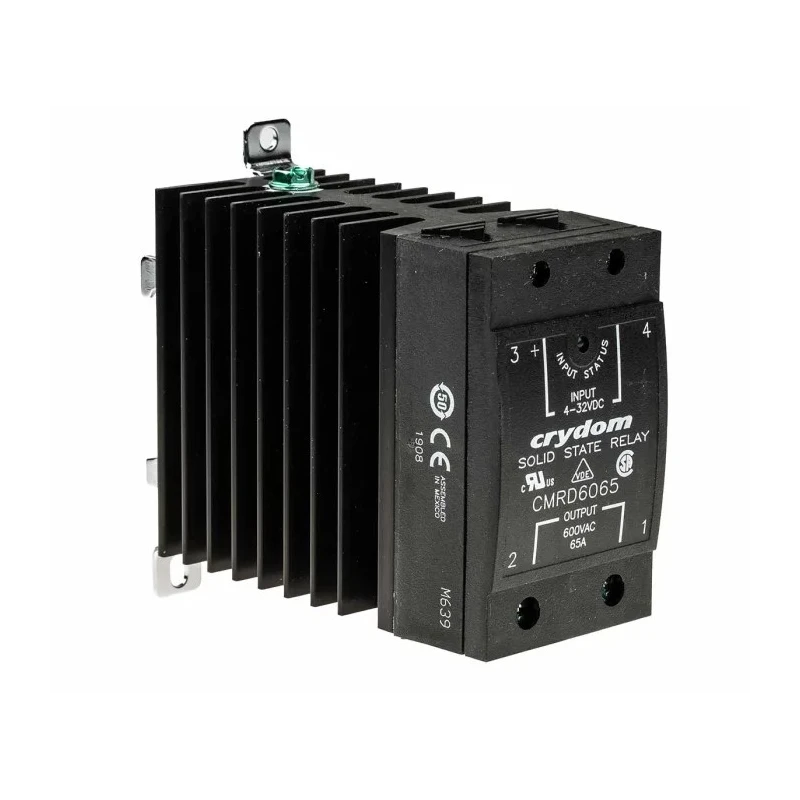

Crydom CMR Series Solid State Relay DIN Rail Mount 65A Load 660V Load 32V Control CMRD6065

The Crydom CMRD6065 Solid State Relay is a robust DIN rail mountable SSR designed for demanding industrial and electrical automation environments. It supports a maximum load current of 65 amperes and functions efficiently with a maximum load voltage rating of 660 volts AC.

This relay operates with a control voltage between 4V DC minimum and 32V DC maximum, featuring an SPST (Single Pole Single Throw) contact configuration that utilizes SCR output technology. The zero cross switching function enhances switching efficiency and reduces electrical noise, which is essential for precision control in manufacturing and HVAC systems.

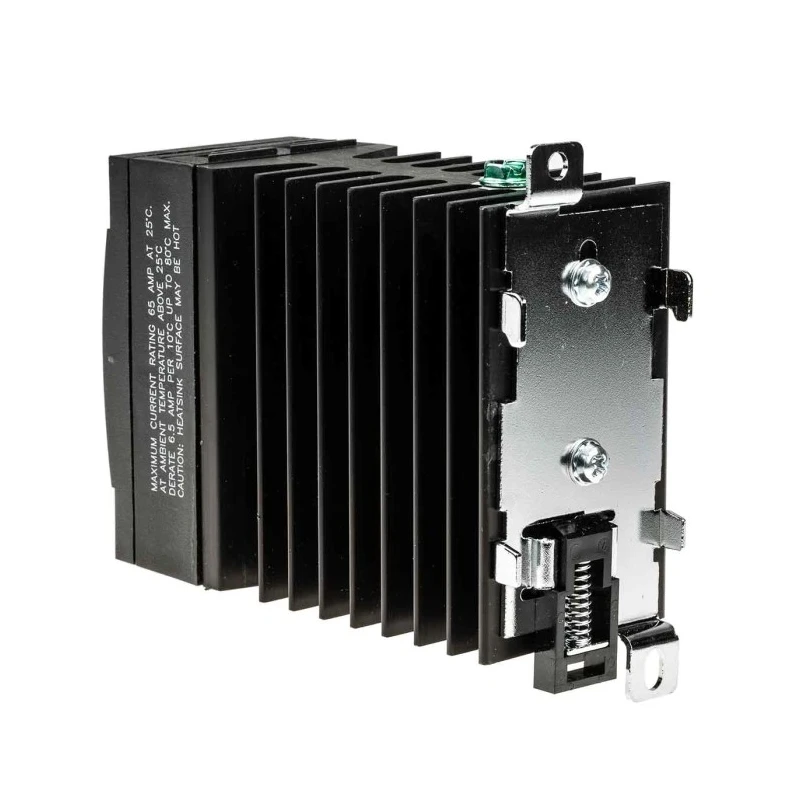

The unit's temperature operating range spans from -40°C to 80°C, providing reliability in diverse industrial conditions. An integral heatsink and an LED status indicator ensure safe, fingerproof operation and clear visual feedback of operational status. Its caged terminals with screw mounting type allow secure wiring installation.

The compact build of the relay offers dimensions of approximately 109.2 mm in height, 44.5 mm in width, and 76.2 mm in depth, optimizing panel space use. Additionally, the relay complies with the RoHS standard, demonstrating environmental safety compliance. Off-state leakage current is minimal at 1mArms, and input-output capacitance is rated at 8pF, supporting low interference communication and switching.

Maximum load current: 65A for heavy-duty applications. DIN rail mount type for easy and secure installation. Wide voltage control range: 4V to 32V DC. SPST contact with SCR output technology. Zero cross switching for noise reduction.

Operating temperature from -40°C to 80°C. Integral heatsink and LED indicator for safety and status display. Compact dimensions suitable for panel mounting.

This solid state relay is ideal for industrial machinery controls, electrical panels, HVAC systems, and manufacturing equipment requiring reliable and efficient switching. Proper thermal management and derating at elevated temperatures should be considered to ensure optimal performance. Explore more products in the Solid State Relay category at EnvMart for your electrical automation needs.
