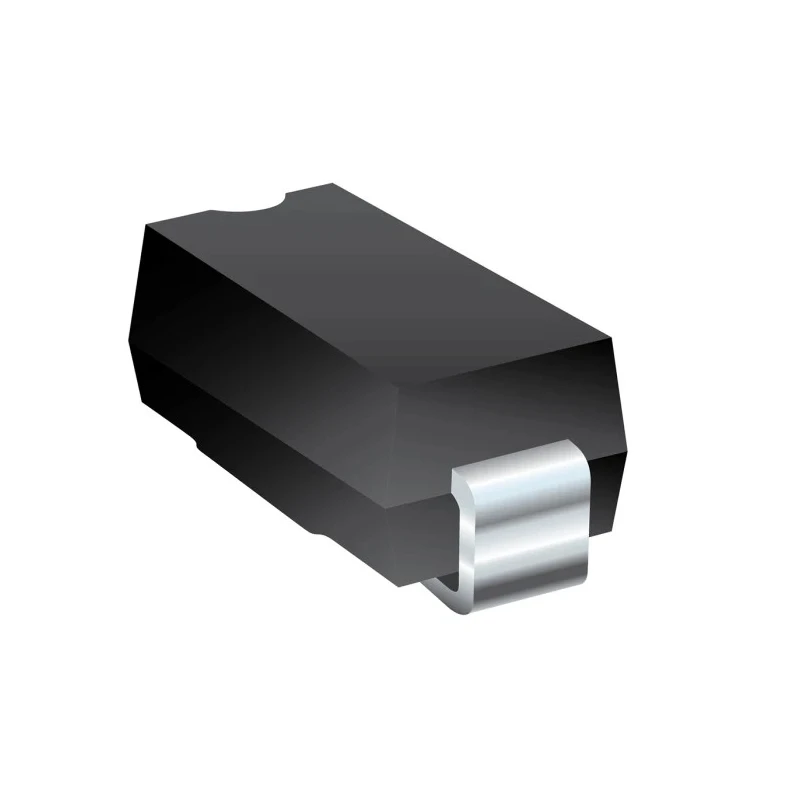

Bourns 1-Element Uni-Directional ESD Protection Diode SMA6J5.0A, 600W, 2-Pin DO-214, Surface Mount, 6.4V Breakdown Voltage
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Bourns |
| Height | 2.08mm |
| Length | 4.5mm |
| Model | SMA6J5.0A |
| Width | 2.79mm |
| Mount Type | Surface |
| Series | SMA |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6.4V |
| Maximum Reverse Stand-off Voltage Vwm | 43V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 10mA |
| Maximum Reverse Leakage Current | 800μA |
| Standoff Voltage | 5 to 43 volts |
Key Features
- The diode features a minimum breakdown voltage of 6.4 volts.
- It has a maximum reverse stand-off voltage of 43 volts.
- Designed for surface mounting with a compact DO-214 package size.
- Operating temperature ranges from -55°C to 150°C, suitable for various industrial environments.
- Compliance with automotive standard AEC-Q101 enhances reliability.
- The device offers fast response times suitable for protection of power buses and I/O interfaces.
- Maximum reverse leakage current is 800μA, ensuring low standby power loss.
- Ideal for protecting telecom, industrial, computer, and consumer electronics from transient voltage spikes.
Product Description
Bourns SMA6J5.0A is a single-element uni-directional transient voltage suppression (TVS) diode designed for ESD and surge protection in sensitive electronic circuits. It features a peak pulse power dissipation capability of 600 watts in a compact 2-pin DO-214 surface mount package, ensuring robust protection while maintaining space-efficient mounting.
The diode has a minimum breakdown voltage of 6.4 volts and a maximum reverse stand-off voltage of 43 volts, providing effective clamp voltage control during transient events. It operates reliably within a wide temperature range from -55°C to 150°C, making it suitable for demanding industrial and automotive applications.
This device meets the stringent automotive standard AEC-Q101 for quality and reliability, and its fast response time minimizes transient disturbances, protecting power buses and I/O interfaces in telecom, computer, industrial, and consumer electronics applications.
Key physical dimensions include a height of 2.08 mm, length of 4.5 mm, and width of 2.79 mm, ensuring easy integration with standard pick-and-place equipment. The flat configuration of the package minimizes roll away during assembly.
The diode features a minimum breakdown voltage of 6.4 volts. Maximum reverse stand-off voltage is 43 volts. Peak pulse power dissipation is 600 watts. Mount type is surface mount with DO-214 package. Temperature range from -55°C to 150°C.
Automotive standard AEC-Q101 certification ensures high reliability. Low maximum reverse leakage current of 800μA. Fast response time ideal for transient voltage suppression.
Bourns SMA6J5.0A surge protection diodes provide critical protection for sensitive electronic components in industrial, automotive, telecommunications, and consumer electronics sectors. Their rugged performance and compact size make them an indispensable component in designing robust electronic systems.
Explore more ESD Protection Diodes and related semiconductors at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The minimum breakdown voltage of this diode is 6.4 volts.
The maximum reverse stand-off voltage for this model is 43 volts.
It has a peak pulse power dissipation capability of 600 watts.
The dimensions of this diode are 2.08 mm in height, 4.5 mm in length, and 2.79 mm in width.
This model operates reliably within a temperature range of -55°C to 150°C.
It supports surface mounting with a DO-214 package type.
The maximum reverse leakage current is 800μA, ensuring low standby power loss.
Yes, it complies with the automotive standard AEC-Q101, enhancing its reliability.
This diode features a single-element uni-directional configuration.
It is suitable for protecting telecom, industrial, computer, and consumer electronics from transient voltage spikes.
This diode has a pin count of 2.
The test current for this model is 10mA.
