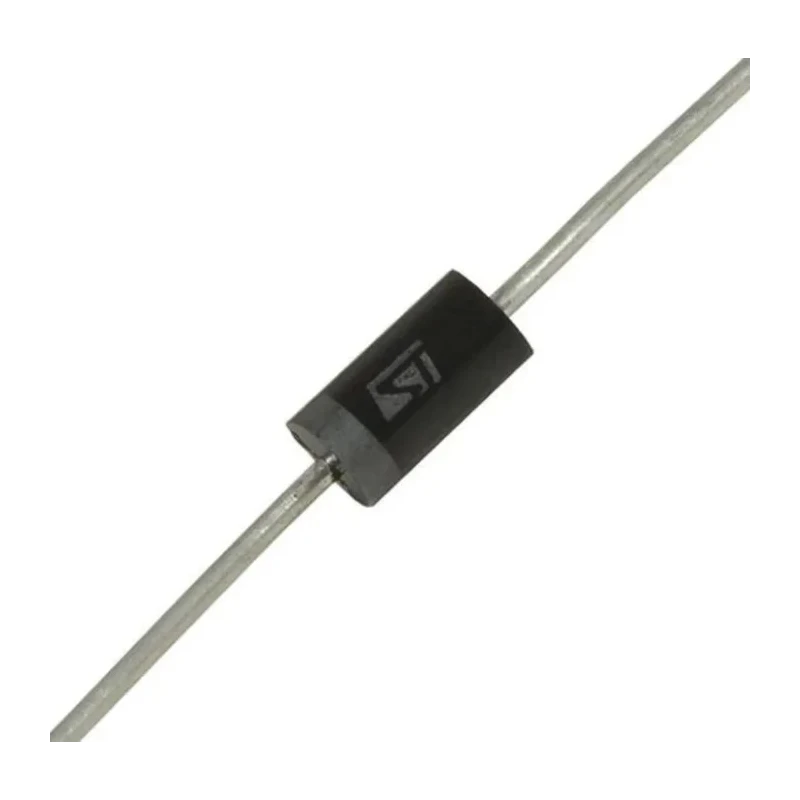

STMicroelectronics 60 V 5 A Schottky Diode Through Hole DO-201AD Package STPS5L60

STMicroelectronics STPS5L60 is a high-performance Schottky diode featuring a 60 V peak reverse voltage and 5 A continuous forward current rating. Packaged in a DO-201AD through hole form factor, this diode ensures excellent thermal efficiency and low forward voltage drop of 520 mV, making it ideal for power rectification tasks.

This device is designed primarily for use in switch mode power supplies, high frequency inverter circuits, and low voltage battery chargers. Its 2-pin, single diode configuration supports robust electrical performance, including handling peak non-repetitive forward surge currents of up to 205 A, which aids in transient load conditions.

The diode’s operating temperature range from -65°C up to 150°C allows it to maintain stability and reliability in varied industrial environments. With physical dimensions of 4.6 mm length, 3.95 mm width, 9.5 mm height, and a 5.3 mm diameter body, it is compact and suitable for dense PCB layouts.

Maximum continuous forward current of 5 A. Peak reverse repetitive voltage rating of 60 V. Low forward voltage drop at 520 mV improves energy efficiency. Pin count: 2, single diode configuration. Supports through hole mounting type.

Operating temperature range from -65°C to 150°C. Peak non-repetitive forward surge current of 205 A. Compact DO-201AD package for space-constrained designs. Suitable for consumer electronics such as DVD players, set-top boxes, and small battery chargers.

Low thermal resistance increases device durability under load.

This Schottky diode is an excellent solution for applications demanding high switching speed and low losses. Its reliable operation in industrial, commercial, and consumer electronics contexts make it a versatile semiconductor component.
