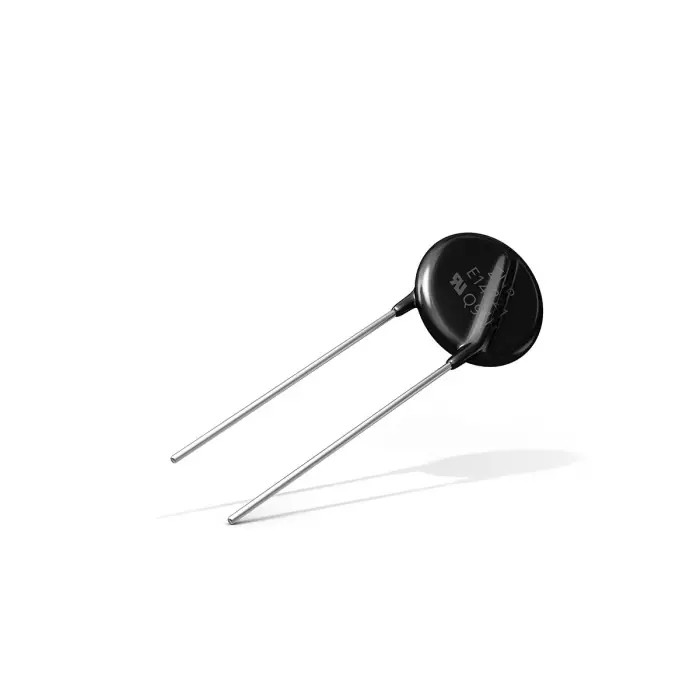

Panasonic E-S1 Surge Absorber 700 pF 100 A Clamping 1815 V Varistor 510 V ERZE14A511SC

Panasonic ERZE14A511SC Surge Absorber is a high-performance transient voltage suppressor from the E-S1 series designed to protect sensitive electronic components in industrial and consumer electronic applications. This varistor has a capacitance of 700 pF and can handle a clamping current of 100 A, making it suitable for safeguarding semiconductors like transistors, diodes, ICs, thyristors, and triacs against voltage surges.

The device exhibits a varistor voltage of 510 V and a clamping voltage rating of 1815 V, which allows it to absorb transient overvoltages effectively while operating up to a maximum AC voltage of 680 V. Its compact cylindrical form factor, featuring a diameter of 16.5 mm and length of 24.5 mm with a thickness and depth of 6.8 mm, supports efficient integration in densely packed electronic assemblies.

Designed for demanding environments, it operates reliably over a wide temperature range from -40°C to 125°C. The surge absorber's substantial energy rating of 620 joules underpins its robust performance for transient suppression in communication, measuring, controller electronics, consumer electronics, and industrial equipment.

The ERZE14A511SC includes straight lead terminations with a 10 mm pitch, facilitating straightforward PCB mounting and connectivity. It meets diverse international standards including GB4943.1, IEC62368-1 G8.2, UL1449, VDE IEC61051-1, CQC, ensuring compliance and quality assurance.

This surge absorber is ideal for protecting communication devices, measuring instruments, household appliances, gas and petroleum appliances, and various control systems from damaging voltage spikes and surges, thereby enhancing system reliability and lifespan.

Features a varistor voltage of 510 V for effective surge absorption. Offers a clamping voltage of 1815 V and clamping current of 100 A. Compact size with a diameter of 16.5 mm and length of 24.5 mm. Operates reliably between -40°C and 125°C temperature range.

Energy rating of 620J ensures high transient absorption capability. Equipped with straight lead termination style and 10 mm lead pitch. Designed to withstand a maximum surge current of 7.5 kA and AC voltage of 680 V. Complies with multiple standards including IEC62368-1, UL, VDE, and CQC.
