| Country of Origin | China |
|---|---|
| Brand | Nexperia |
| Height | 1.6mm |
| Length | 3.7mm |
| Model | BZV55-B4V7,115 |
| Mount Type | Surface |
| Series | BZV55 |
| Maximum Operating Temperature | 200°C |
| Package Type | SOD-80 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 3μA |
| Nominal Zener Voltage Vz | 4.79V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 80Ω |
| Typical Voltage Temperature Coefficient | -1.4mV/K |
| Total power dissipation | ≤ 500 mW |
| Non-repetitive Peak reverse power dissipation | ≤ 40 W |
| Two tolerance series | ±2 % and ±5 % |
| Wide working voltage range | nominal 2.4 V to 75 V (E24 range) |
| onsemi 1, 4.7 V Zener Diode, Single 500 mW 5 % Through Hole 2-Pin SOD-27Brand | onsemi |

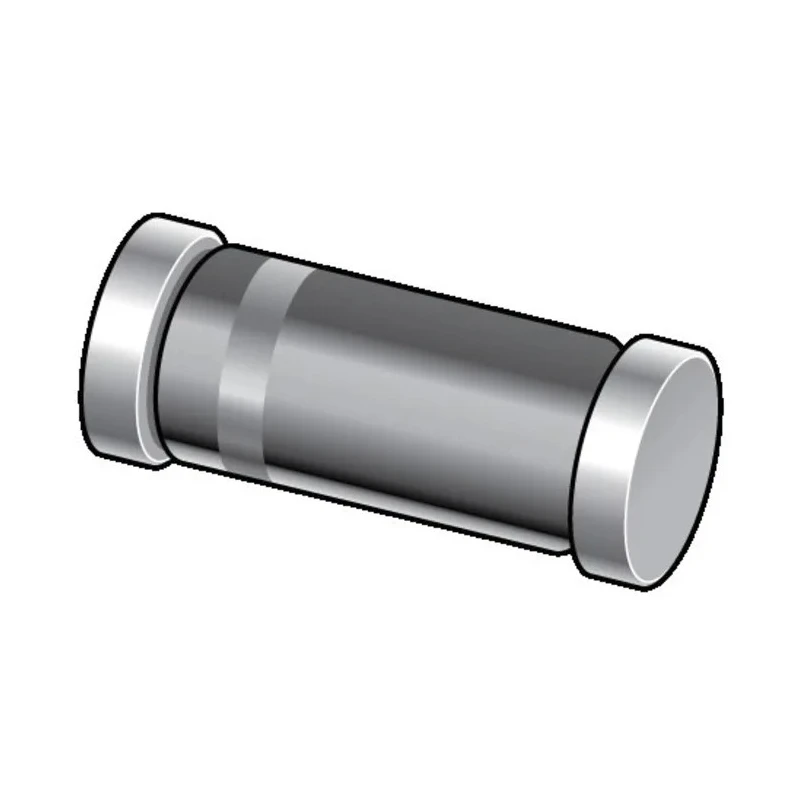

Nexperia BZV55-B4V7,115 is a single element Zener diode designed for voltage regulation applications. It operates at a nominal Zener voltage of 4.79 V and dissipates up to 500 mW of power in a surface mount SOD-80 package.
This voltage regulator diode is ideal for use in compact, high density circuit boards where precise voltage reference and over-voltage protection are required. The device operates reliably over a broad temperature range from -65°C to 200°C and features a tight ±2 % tolerance for accurate voltage regulation.
With a maximum reverse leakage current of just 3 μA and low Zener impedance of 80 Ω, it ensures efficient voltage stabilization at the specified test current of 5 mA. Its hermetically sealed glass surface mount package enhances durability and reliability in industrial, automotive, and general electronic circuit applications.
Nominal 4.79 V Zener voltage with ±2 % tolerance for precision regulation. Maximum power dissipation: 500 mW. Compact surface mount SOD-80 2-pin package suitable for dense PCBs. Operating temperature from -65°C to 200°C provides robust performance in harsh environments.
Low reverse leakage current and Zener impedance improve efficiency. Hermetically sealed glass package protects against environmental impacts. Broad voltage tolerance range accommodates various design needs. Widely used in industrial, automotive, electronic components for voltage reference and over-voltage protection.
Choose Nexperia Zener Diodes for effective, reliable voltage regulation in power management and signal conditioning circuits. EnvMart offers this diode under the BZV55 series, supporting numerous voltage options for versatile electronic design implementations.
