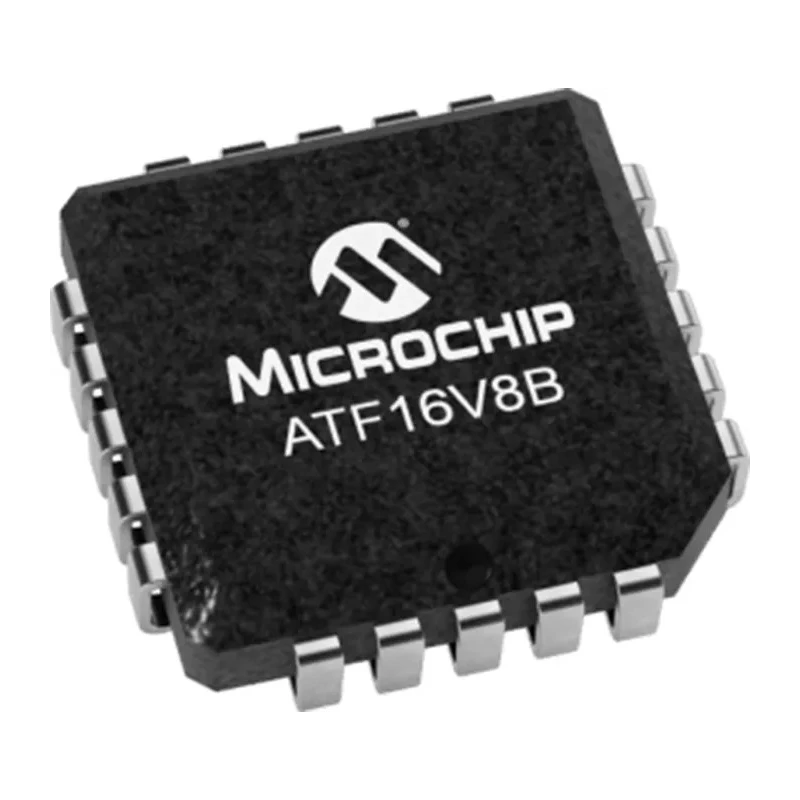

Microchip Complex Programmable Logic Device 16V8 8 Macro Cells 18 I/O 10 ns Propagation Delay Surface Mount ATF16V8B-10JU
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.06mm |
| Length | 9.04mm |
| Model | ATF16V8B-10JU |
| Mount Type | Surface |
| Series | 16V8 |
| Maximum Operating Temperature | 85°C |
| Package Type | PLCC |
| Minimum Operating Temperature | -40°C |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
| Maximum Propagation Delay Time | 10ns |
| Number of Macro Cells | 8 |
| Number of User I/Os | 18 |
| Number of Logic Blocks/Elements | 8 |
Key Features
- Utilizes high-performance CMOS Electrically-Erasable Programmable Logic Device architecture.
- Supports in-system programming for flexible design and rapid iteration.
- Operates within a voltage range of 4.5 V to 5.5 V with typical low-power consumption.
- Features 20-pin PLCC package suitable for surface mounting on printed circuit boards.
- Industrial temperature range from -40°C to 85°C for reliable operation in harsh environments.
- Includes individual output enable control and input/output pull-up resistors for enhanced signal integrity.
- Reprogrammable with more than 100 erase/write cycles and 20-year data retention.
- ESD protection rated at 2000 V ensuring robust handling and improved reliability.
Product Description
Microchip ATF16V8B-10JU is a high-performance Complex Programmable Logic Device (CPLD) from Microchip's 16V8 series, offering 8 macro cells and 18 user input/output pins. It provides a maximum propagation delay of 10 nanoseconds, making it ideal for fast logic applications.
This device utilizes CMOS Electrically-Erasable Programmable Logic Device (EE PLD) technology with advanced flash memory, supporting in-system programmability to enable flexible design updates without device removal. Its 20-pin PLCC package and surface mount type facilitate compact PCB layouts.
Designed for industrial applications, it reliably operates in temperature ranges from -40°C to 85°C and supply voltages from 4.5 V to 5.5 V. The device features low standby power consumption with an automatic power-down mode controlled by input transition detection circuitry, enhancing energy efficiency in idle states.
Additional functionality includes individual output enable control, input and I/O pull-up resistors, and compatibility with CMOS and TTL logic levels. The ATF16V8B-10JU device is reprogrammable, allowing over 100 erase/write cycles and data retention for up to 20 years.
Security and durability are ensured with high-reliability CMOS processing and robust 2000 V electrostatic discharge (ESD) protection. Its industry-standard architecture emulates many 20-pin PALs®, making it a versatile choice for embedded designs requiring programmable logic.
Utilizes high-performance CMOS Electrically-Erasable Programmable Logic technology. Supports in-system programming for ease of development. Operates at industrial temperature ranges from -40°C to 85°C. 20-pin PLCC surface mount package for compact installation.
Low power consumption with automatic standby mode. Reprogrammable with 100+ erase/write cycles and 20-year data retention. 2000 V ESD protection for enhanced device reliability. Compatible with CMOS and TTL logic inputs and outputs.
This Microchip CPLD is widely applied in industrial, electronics, and embedded system projects requiring compact, reliable, and fast programmable logic functions. It supports rapid prototyping and production environments where design flexibility and durability are essential.
Explore more programmable logic devices and other semiconductor components at EnvMart.
Explore more products in our Programmable Logic ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum propagation delay of this model is 10 nanoseconds, making it suitable for fast logic applications.
It operates within a voltage range of 4.5 V to 5.5 V, allowing for flexible integration in various applications.
This device features 8 macro cells, providing a solid foundation for complex logic functions.
The device is designed to operate reliably in temperatures ranging from -40°C to 85°C, suitable for industrial environments.
It comes in a 20-pin PLCC package, which is suitable for surface mounting on printed circuit boards.
This CPLD provides 18 user input/output pins for interfacing with other components.
The ATF16V8B-10JU has an ESD protection rating of 2000 V, enhancing its reliability during handling.
Yes, it supports in-system programming, allowing for flexible design updates without the need to remove the device.
The dimensions of this model are 4.06 mm in height and 9.04 mm in length.
It is reprogrammable with more than 100 erase/write cycles, ensuring longevity and flexibility in use.
This device is compatible with both CMOS and TTL logic levels, making it versatile for various applications.
The automatic power-down mode is controlled by input transition detection circuitry, which enhances energy efficiency during idle states.
