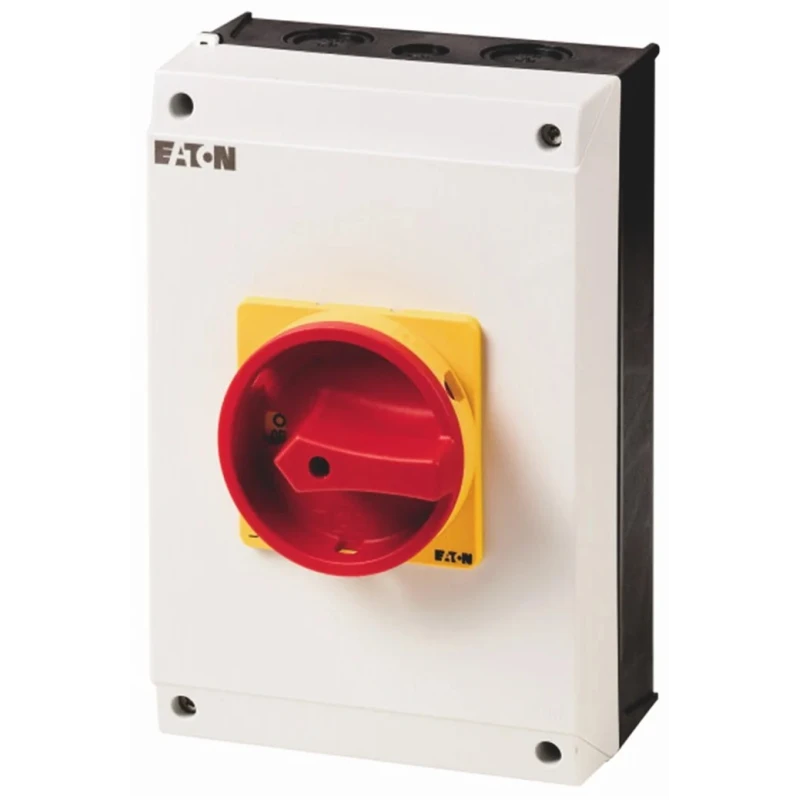

Eaton 2-Pole Surface Isolator Switch IP65 520A 22 kW
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Eaton |
| Length | 240mm |
| Model | IP65 |
| Depth | 125mm |
| IP Rating | IP65 |
| Width | 160mm |
| Mount Type | Surface |
| Series | T5B |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Switching Current | 520A |
| Terminal type | Screw |
| Electrical Phase | 1 |
| Handle Colour | Red |
| Number of Poles | 2 |
| Standards/Approvals | CSA, IEC, UL |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 230V ac |
| Switching Power | 22kW |
| The basic functions | used as a main switch, maintenance switch or manual override switch |
| Eaton 1-Pole Surface Isolator Switch -, IP65, 520A, 22 kWBrand | Eaton |
Key Features
- Provides effective isolation for circuits in industrial and commercial applications.
- Equipped with a red rotary handle and yellow locking ring for secure operation.
- Suitable for 1-phase electrical systems with 520A switching current and 22 kW power capacity.
- Surface mount design with screw terminals ensures easy installation and reliable connections.
- Corrosion-resistant IP65 enclosure protects against dust and low-pressure jets of water.
- Includes built-in earth commoning block and supports locking in the off position.
- Operates within a temperature range of -25°C to 50°C for reliable performance.
- Complies with CSA, IEC, and UL standards, ensuring quality and safety.
Product Description
Eaton 207238 T5B-1-102/I4/SVB 2-Pole Surface Isolator Switch is engineered for electrical isolation and safety in industrial and commercial electrical systems. This isolator switch provides manual circuit isolation through a rotary handle operation, allowing maintenance and emergency stops without exposing operators to live components.
The device features a robust IP65 rated thermoplastic enclosure, offering excellent protection against dust ingress and water jets, making it suitable for harsh environments. The red rotary handle and yellow locking ring provide a clear visual indication and enable locking with up to three padlocks to prevent unauthorized operation.
Designed for single-phase electrical installations, this isolator switch supports a switching current of 520A and switching power of 22 kW. It features screw type terminals for secure and straightforward wiring connections. The unit also incorporates a built-in earth commoning block for safe grounding purposes.
Operating temperatures range from -25°C to 50°C, ensuring reliable switching under varied environmental conditions. The switch meets internationally recognized standards including CSA, IEC, and UL, validating its quality and performance.
This isolator switch is ideal for use in switchgear assemblies, circuit breaker isolation, transmission lines, transformers, and other electrical distribution equipment requiring safe isolation. The product is manufactured in the United Kingdom, reflecting high build quality and compliance with rigorous industrial standards.
Effective circuit isolation for maintenance and emergency shutoff. Thermoplastic IP65 enclosure protects against dust and water ingress. Supports 520A switching current and 22 kW switching power. Red rotary handle with locking capability enhances safety.
Compliant with international safety and performance standards. Suitable for industrial, commercial, and electrical automation applications. Explore Eaton Isolator Switches and related electrical safety components at EnvMart for high-quality industrial electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this isolator switch is 520A.
This model has a power capacity of 22 kW.
It is suitable for single-phase electrical systems.
The enclosure has an IP65 rating, providing protection against dust and low-pressure water jets.
The dimensions are 240mm in length, 160mm in width, and 125mm in depth.
It operates within a temperature range of -25°C to 50°C.
This unit features screw type terminals for secure wiring connections.
Yes, it complies with CSA, IEC, and UL standards.
The handle is red, designed for clear visual indication.
Yes, it supports locking in the off position with up to three padlocks.
It is manufactured in the United Kingdom.
It is intended for use in switchgear assemblies, circuit breaker isolation, and other electrical distribution equipment requiring safe isolation.
