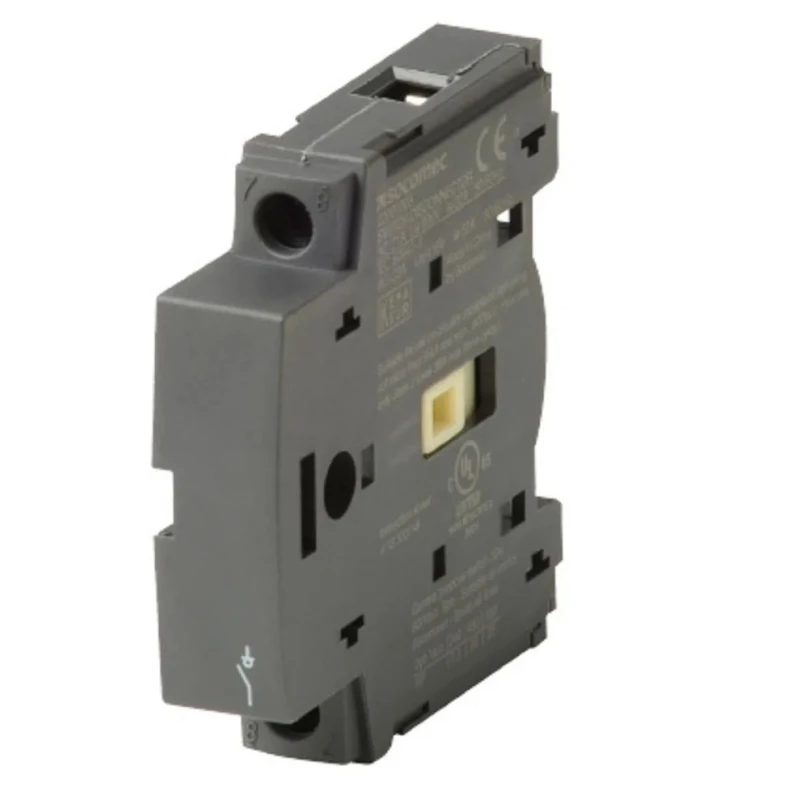

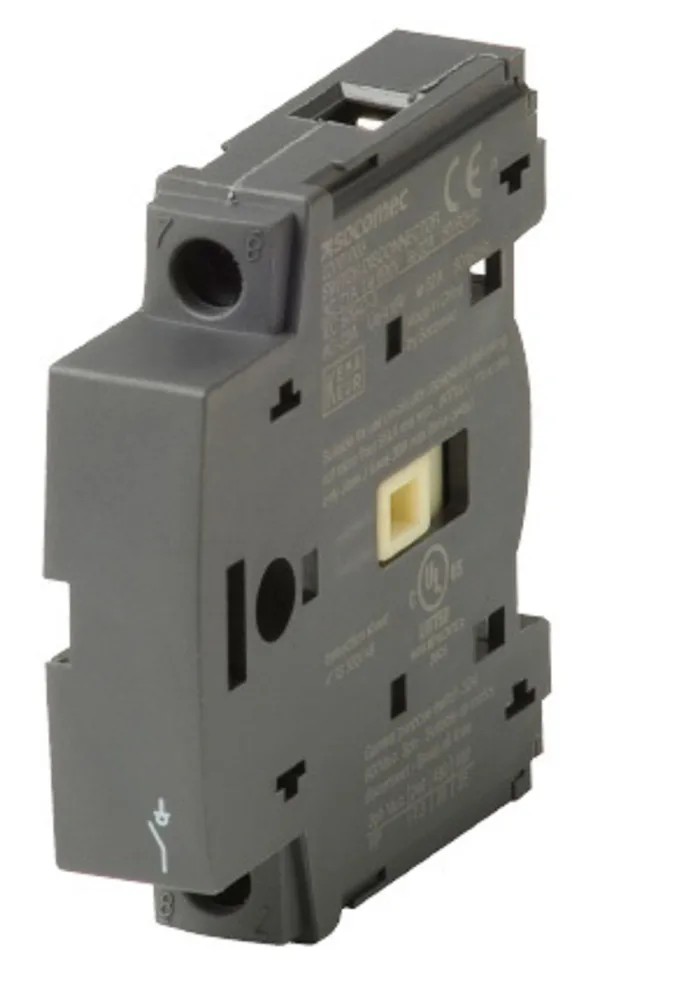

Socomec Sirco M DIN Rail Isolator Switch 1 Pole, IP65, 32A, 15kW, Grey Handle, Screw Terminal,
Specifications
| Country of Origin | China |
|---|---|
| Brand | Socomec |
| Length | 15mm |
| Model | IP65 |
| Depth | 68mm |
| IP Rating | IP65 |
| Width | 2.52mm |
| Mount Type | DIN Rail |
| Series | Sirco M |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Switching Current | 32A |
| Terminal type | Screw |
| Electrical Phase | 3 |
| Handle Colour | Grey |
| Number of Poles | 1 |
| Standards/Approvals | RoHS |
| Switching Power | 15kW |
| - Mounting options | DIN rail, panel or modular panel with 45 mm front cut out |
Key Features
- IP65 protection against dust and water.
- 32A switching current for safe industrial isolation.
- Padlock-compatible robust grey handle.
- DIN rail mounting for flexible installation.
- Reliable screw terminal type for secure connections.
- Operating temperature range from -25°C to 70°C.
- Double break per pole ensures enhanced safety.
- Auxiliary contacts available for expanded functionality.
Product Description
Socomec Sirco M DIN Rail Isolator Switch, model 22001003, is an industrial-grade disconnect switch designed for multipolar isolation and safe breaking under load conditions. Rated for 1 pole and IP65 ingress protection, this device is built to operate reliably in demanding environments, offering robust dust and water resistance.
With a switching current of 32A and maximum power capacity of 15kW, the Sirco M is widely used in machine control and low voltage circuit safety isolation, supporting both three-phase electrical networks and complex industrial systems. The padlock-compatible, ergonomically designed grey handle provides secure manual operation, preventing unauthorized access while maintaining clear visual status for operators.
Installation is facilitated by DIN rail mounting, and the device can be fitted directly onto panels or doors via a modular panel system. Screw terminals ensure firm electrical connections, reducing maintenance needs and risk of accidental disconnection. The auxiliary contact feature allows expansion for signaling or additional safety mechanism integration.
The Sirco M switch is engineered for severe utilization categories, complying with international standards IEC 60947-3, UL508, and UL98. Its double break point per pole and positive break indication contribute to operational safety and reliability. Operating across a temperature range from -25°C to 70°C, this isolator switch is well-suited for varied climates and industrial settings.
Typical use cases include manufacturing plants, automation systems, HVAC installations, water treatment facilities, and commercial electrical distribution systems. Its versatility and compliance with RoHS standards make it a dependable option for environmentally responsible projects.
Browse more industrial Isolator Switches and Socomec Sirco M products in the Switches & Sockets category at EnvMart for robust electrical isolation solutions fit for demanding environments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching power of this isolator switch is 15kW.
The IP rating of this isolator switch is IP65, providing protection against dust and water.
This model has a switching current capacity of 32A.
The dimensions of this isolator switch are 15mm in length, 68mm in depth, and 2.52mm in width.
The operating temperature range for this isolator switch is from -25°C to 70°C.
It can be mounted on a DIN rail, panel, or modular panel with a 45 mm front cut out.
This isolator switch uses screw terminals for secure electrical connections.
Yes, this model is suitable for three-phase electrical networks.
It features a double break per pole and positive break indication for enhanced safety.
It complies with international standards IEC 60947-3, UL508, and UL98, as well as RoHS standards.
The handle of this isolator switch is grey in color.
Typical applications include manufacturing plants, automation systems, HVAC installations, and water treatment facilities.
