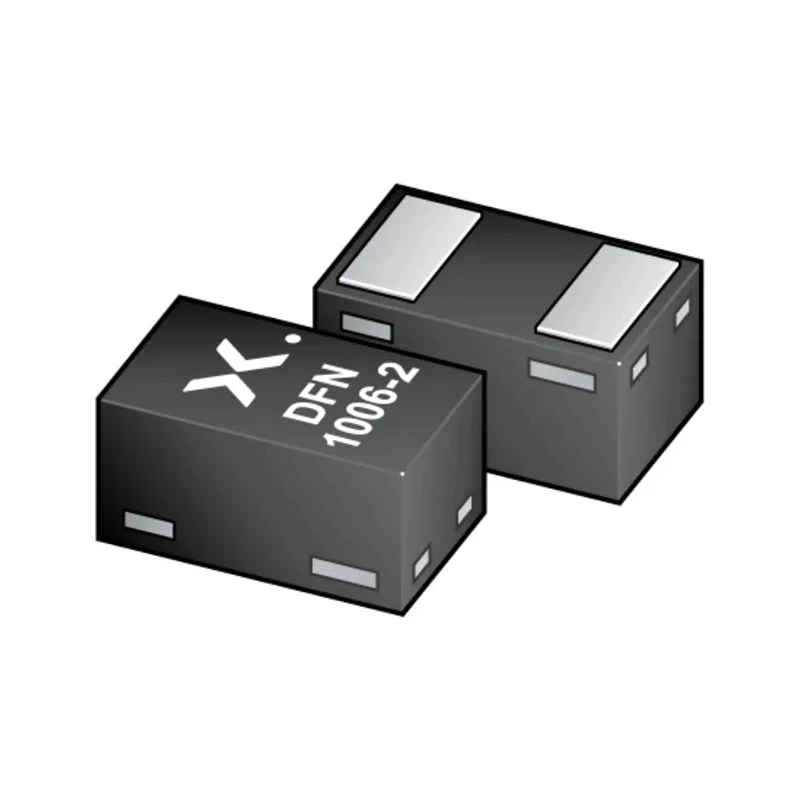

Nexperia Schottky Diode Single 2-Pin Surface Mount SOD-882 70 V 70 mA BAS70L,315

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Schottky Diode Single 2-Pin Surface Mount SOD-882 70 V 70 mA BAS70L,315

Name: Nexperia Schottky Diode Single 2-Pin Surface Mount SOD-882 70 V 70 mA BAS70L,315
Brand: Nexperia
SKU: 302369
Price: 0.06 USD
Availability: InStock



Category Schottky Diode Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	0.47mm
Length	1.02mm
Model	BAS70L,315
Width	0.62mm
Mount Type	Surface
Series	BAS70
Maximum Operating Temperature	150°C
Package Type	SOD-882
Minimum Operating Temperature	-65°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	70mA
Peak Reverse Repetitive Voltage Vrrm	70V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	10μA
Peak Non-Repetitive Forward Surge Current Ifsm	100mA
Maximum Forward Voltage Vf	1V

Key Features

This diode supports continuous forward current up to 70 mA.
Peak reverse repetitive voltage rating is 70 volts ensuring high breakdown voltage.
It provides low forward voltage drop up to 1 volt for efficiency.
Designed for high switching speed and low capacitance in power management applications.
The device operates across a wide temperature range from -65°C to 150°C.
Low leakage current of 10 microamperes reduces parasitic losses in circuits.
Compact SOD-882 package with dimensions 1.02mm length, 0.62mm width, and 0.47mm height.
Complies with automotive standard AEC-Q101 for quality and reliability.

Product Description

Nexperia BAS70L,315 is a Schottky Diode designed for electronic and power management applications requiring a compact, efficient semiconductor device. This single diode in a 2-pin SOD-882 surface mount package offers excellent performance with a maximum continuous forward current of 70 mA and peak reverse voltage of 70 V. It features a low forward voltage drop of 1 V and low leakage current of 10 μA, ensuring high efficiency and reduced power loss.

The diode's integrated guard ring protects against mechanical stress and enhances reliability under harsh operating conditions. It supports a wide range of operating temperatures from -65°C up to +150°C, making it suitable for automotive and industrial environments. Additionally, the BAS70L,315 meets the automotive AEC-Q101 standard, reflecting its high quality and robustness.

This ultra-small, low-profile plastic package (1.02 mm length, 0.62 mm width, 0.47 mm height) enables high-density PCB layout for space-constrained designs. The diode is ideal for reverse polarity protection, low-voltage rectification, DC-to-DC conversion power management, and general-purpose switching applications requiring fast response and low capacitance.

Continuous forward current rating of 70 mA. Peak repetitive reverse voltage of 70 V. Maximum forward voltage of 1 V. Low leakage current of 10 μA. Wide operating temperature range from -65°C to 150°C. Compact SOD-882 surface mount package.

Automotive standard AEC-Q101 compliant. Integrated guard ring for stress protection. Low capacitance for high speed switching.

This diode is broadly used in electronic circuits for power management, especially DC-to-DC converters, reverse polarity protection in automotive electronics, and low-voltage rectification in consumer and industrial products. Engineers benefit from its reliable electrical characteristics and compact footprint in demanding applications.

Explore more semiconductor and power management devices at EnvMart to support your electronic design needs.
