| Country of Origin | China |
|---|---|
| Brand | Nexperia |
| Height | 0.65mm |
| Length | 1.25mm |
| Model | PMEG6002EB,115 |
| Width | 0.85mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-523 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Forward Current | IF ≤ 0.2 A |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 2.5A |
| Maximum Forward Voltage Vf | 600mV |
| Reverse voltage | VR ≤ 60 V |

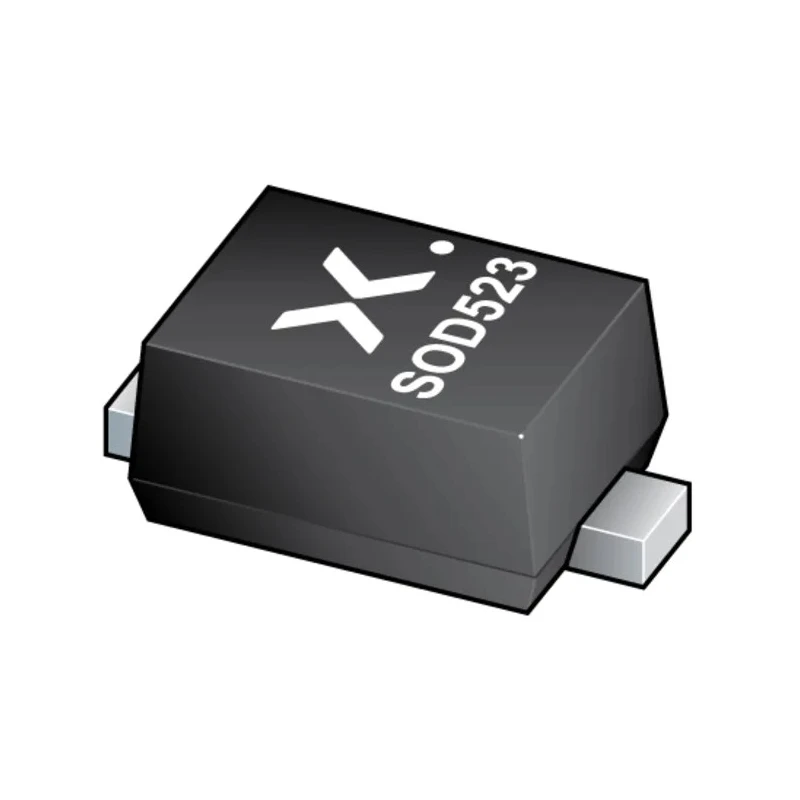

Nexperia PMEG6002EB,115 is a high-efficiency Schottky diode designed for surface mount applications featuring a 2-pin SOD-523 plastic package. Rated for a peak reverse voltage of 60 V and a maximum forward current of 200 mA, it excels in low voltage rectification and power efficiency.
This diode exhibits a low forward voltage of 600 mV, minimizing power loss and heat generation. Its ultra-compact dimensions of 1.25 mm length, 0.65 mm height, and 0.85 mm width enable use in space-constrained electronics. The integrated guard ring provides improved stress tolerance, enhancing device durability.
Operating reliably from -65°C up to 150°C, PMEG6002EB,115 is suitable for a variety of demanding applications including switch mode power supplies, battery chargers, and automotive electronics thanks to its AEC-Q101 compliance.
The diode configuration is single, and its peak non-repetitive forward surge current reaches 2.5 A, accommodating short surge conditions. Maximum continuous forward current of 200 mA. Peak reverse repetitive voltage of 60 V.
Low forward voltage drop of 600 mV for energy-efficient operation. Compact SOD-523 package for surface mounting. Operating temperature range from -65°C to 150°C. Automotive grade AEC-Q101 compliant. Integrated guard ring for stress protection.
Pin count: 2. Single Schottky diode configuration.
This Schottky diode is ideal for industrial electronic manufacturing, laboratory instrumentation, automotive circuits, and consumer electronic designs requiring efficient low voltage rectification and protection. Choose Nexperia PMEG6002EB,115 for reliable, space-saving diode solutions.
