Nexperia Inverter Logic IC CMOS Input Open Drain Output 6 Elements, 14-Pin SO-8 74HC04D,653

Free Delivery in India | Lowest Global Shipping Charges

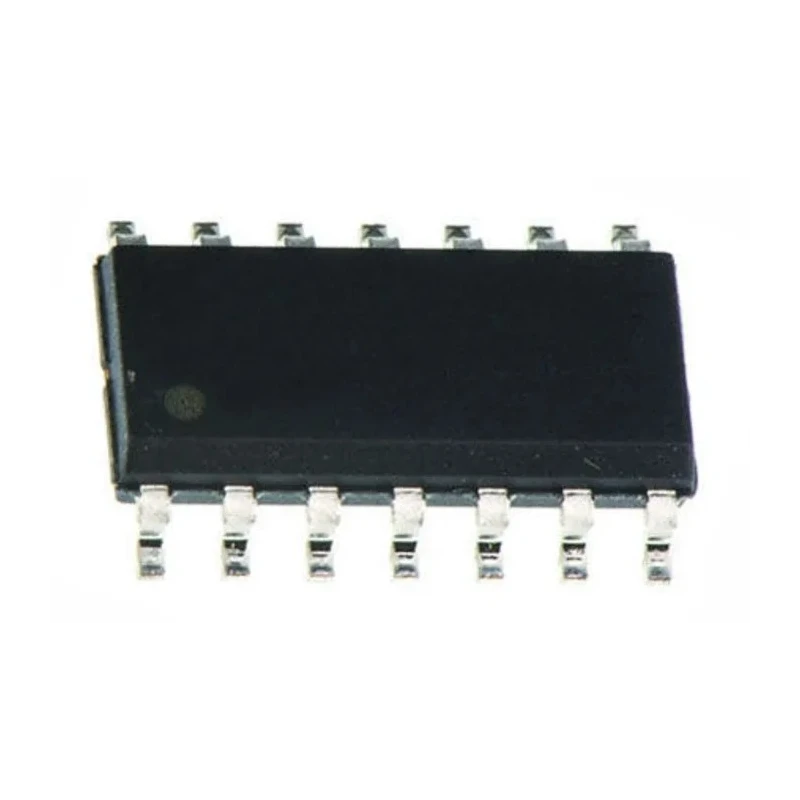

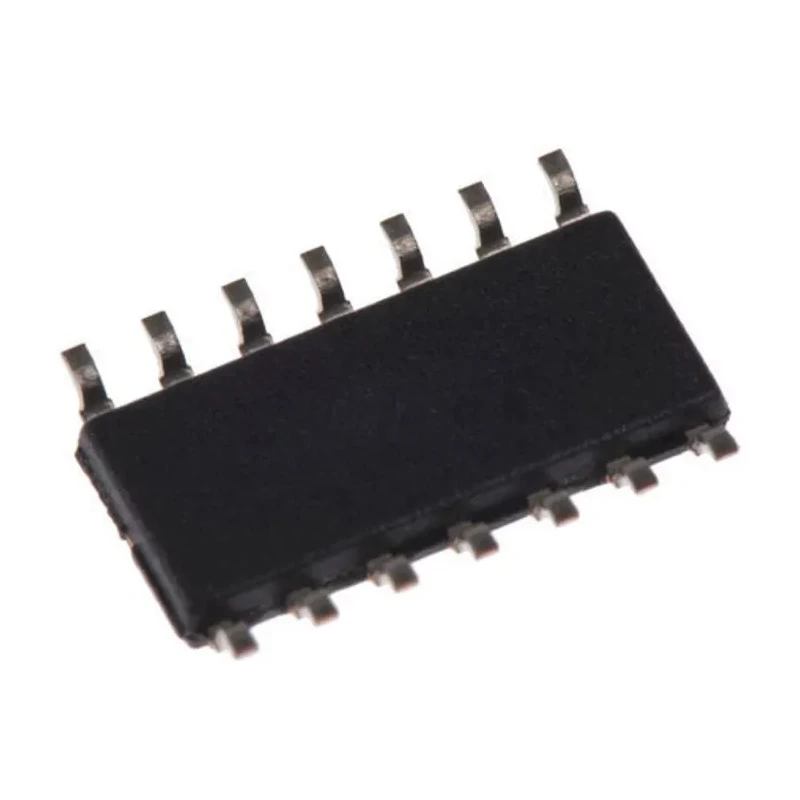

Nexperia Inverter Logic IC CMOS Input Open Drain Output 6 Elements, 14-Pin SO-8 74HC04D,653

Name: Nexperia Inverter Logic IC CMOS Input Open Drain Output 6 Elements, 14-Pin SO-8 74HC04D,653
Brand: Nexperia
SKU: 301557
Price: 0.18 USD
Availability: InStock



Category Inverters ICs Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.45mm
Length	8.75mm
Model	74HC04D,653
Width	4mm
Mount Type	Surface
Compatibility	Input CMOS, Output CMOS
Output type	Open Drain
Series	74HC04
Input Type	CMOS
Maximum Operating Temperature	125°C
Package Type	SO-8
Minimum Operating Temperature	-40°C
Operating Voltage	2 to 6 V
Pin Count	14
Number of Elements per Chip	6
Maximum Supply Voltage	6V
Logic Family	74HC
Logic Function	Inverter
Minimum Supply Voltage	2V
Maximum High Level Output Current	-5.2mA
Maximum Propagation Delay Time @ CL	130ns
Maximum Low Level Output Current	5.2mA
onsemi MC74HC04ADR2G Inverter 6, 14-Pin SOICBrand	onsemi

Key Features

Utilizes silicon gate CMOS technology for high-speed logic operations and low power consumption.
Operates over voltage range from 2 V to 6 V, compatible with standard 74HC logic family.
Maximum propagation delay time is 130 nanoseconds at load capacitance.
Supports operation over -40 °C to 125 °C temperature range, ensuring reliability in harsh conditions.
Comes in a compact SO-8 package measuring 8.75 mm length, 4 mm width, and 1.45 mm height for space-efficient PCB design.
Maximum high level output current of -5.2 mA and low level output current 5.2 mA for robust switching.
Pin count is 14 with surface mount type, enabling easy assembly on modern circuit boards.
Ideal for use in industrial, commercial, and consumer electronic circuits requiring inverter logic functionality.

Product Description

Nexperia 74HC04D,653 is a high-speed CMOS inverter logic IC from the 74HC family, equipped with 6 independent inverter elements. It features CMOS input and open drain output designed for fast switching and low power consumption, making it suitable for various complex digital electronic circuit applications.

Operating efficiently over a supply voltage range of 2 to 6 volts, this device maintains excellent performance with a maximum propagation delay time of 130 ns at typical load capacitances. It supports a wide operating temperature range from -40 °C to 125 °C, providing robust operation in both commercial and industrial environments.

The compact SO-8 package (8.75 mm long, 4 mm wide, 1.45 mm high) with 14 pins allows for convenient surface mount on printed circuit boards, thus aiding in space-saving device layouts.

Electrical characteristics include a maximum high level output current of -5.2 mA and maximum low level output current of 5.2 mA, allowing it to provide good drive strength for downstream components. It is compatible with input and output CMOS logic levels in the 74HC logic family.

High-speed silicon gate CMOS technology. 6 inverter elements integrated in a single chip. Surface mount SO-8 package ensures minimal PCB footprint. Wide temperature and voltage operating ranges for diverse applications. Robust high and low output current ratings.

Compatible with standard CMOS logic input and output levels. Designed for reliable logic inversion tasks in electronics. This Nexperia inverter IC is optimally used in industrial control systems, telecommunications, automotive electronics, and consumer devices requiring dependable logic inversion.
