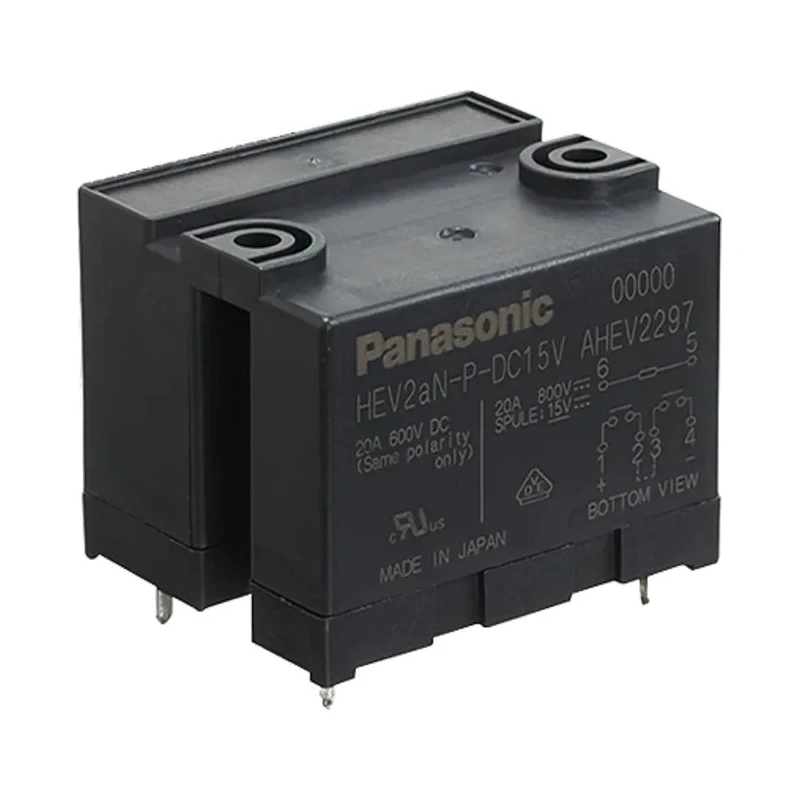

Panasonic PCB Power Relay, 12V dc Coil, 20A Switching Current, DPST HEV2AN-P-DC12V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 39.4mm |
| Length | 50mm |
| Model | HEV2AN-P-DC12V |
| Width | 41mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HE-V |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 20A |
| Contact arrangement | 2 Form A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | VDE, cULus |
| Coil Resistance | 75Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 1kV dc |
| Switching AC Voltage | 1kV ac |
| Coil Power | 1.92W |
Key Features
- Compact size with dimensions 50mm length, 41mm width, and 39.4mm height.
- Suitable for PCB mounting with PCB pin terminal type.
- Operates within temperature range -40°C to 85°C.
- Coil resistance of 75 ohms with coil power consumption of 1.92W.
- Contact material made of silver alloy ensuring low contact resistance of 100mΩ.
- Switching capability up to 1kV DC and 1kV AC.
- Contact arrangement is 2 Form A with DPST configuration.
- Certified and compliant with VDE and cULus standards.
Product Description
Panasonic HEV2AN-P-DC12V PCB Power Relay features a 12V DC coil voltage with a 20A high switching current capacity, designed specifically for PCB mounting applications requiring efficient and reliable power relay functions.
This DPST relay offers a compact form factor measuring 50mm in length, 41mm in width, and 39.4mm in height, making it suitable for high-density circuit designs. The relay coil has a resistance of 75Ω and power consumption of 1.92W, supporting energy-efficient operation.
Engineered to operate reliably within a temperature range from -40°C to 85°C, this relay maintains performance in demanding industrial, automotive, and automation environments. The contact material is silver alloy, providing low contact resistance of 100mΩ for minimal leakage and high conductivity.
It supports switching voltages up to 1kV DC and 1kV AC, making it ideal for photovoltaic power generation systems, battery charge/discharge circuits, inverter controls, and DC load switching applications. The DPST contact configuration (2 Form A) allows simultaneous control of two independent circuits with high electrical isolation.
Compliance with VDE and cULus standards ensures robust safety and performance certifications for industrial and commercial installations. The mounting type is PCB, and termination is via PCB pin, streamlining integration into printed circuit boards.
Compact size with PCB mounting and silver alloy contacts. High switching current of 20A with reliable DPST contact arrangement. Wide operating temperature range from -40°C to 85°C. Low coil power consumption of 1.92W with 75Ω resistance.
Supports high voltage switching of up to 1kV AC and DC. Complies with VDE and cULus safety standards. Ideal for photovoltaic, battery, inverter, and DC load control systems.
This Panasonic PCB Power Relay is designed for electrical, automation, manufacturing, and renewable energy applications demanding precise, durable, and high-current switching capabilities. Explore more high-quality Power Relays and related components on EnvMart for your industrial and commercial electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 20A.
This model measures 50mm in length, 41mm in width, and 39.4mm in height.
The coil voltage for this power relay is 12V DC.
It features a DPST contact configuration with a 2 Form A arrangement.
The relay operates within a temperature range of -40°C to 85°C.
The contact material is made of silver alloy, providing low contact resistance.
The coil resistance is 75 ohms.
This relay supports switching voltages up to 1kV for both AC and DC.
The relay is designed for PCB mounting with PCB pin terminals.
It is certified and compliant with VDE and cULus standards.
The coil power consumption is 1.92W.
This relay is suitable for applications such as photovoltaic power generation systems, battery charge/discharge circuits, inverter controls, and DC load switching.
