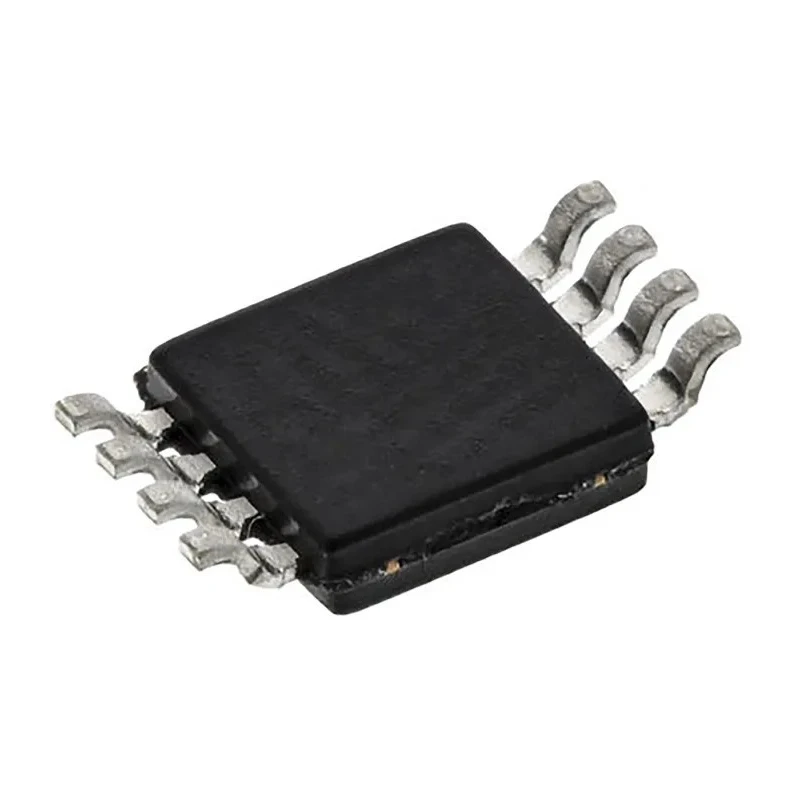

DiodesZetex Operational Amplifier 700 kHz 8-Pin MSOP 36V LM2904M8-13
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 0.95mm |
| Length | 3.1mm |
| Model | LM2904M8-13 |
| Width | 3.1mm |
| Mount Type | Surface |
| Series | LM2902/LM2904 |
| Output Current | 50mA |
| Maximum Operating Temperature | 125°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 700kHz |
| Input Bias Current | -500 nA |
| Vos - Input Offset Voltage | 10 mV |
| Slew Rate | 0.3V/μs |
| Input Offset Current | 150 nA |
Key Features
- Dual-channel configuration suitable for general purpose amplification.
- Surface mount MSOP package for efficient PCB placement.
- Wide supply voltage range from 3 V to 36 V.
- Low input bias current of -500 nA for precision applications.
- Operating temperature span from -40°C to 125°C ensuring robust performance.
- Input offset voltage of 10 mV and input offset current of 150 nA for accuracy.
- Output current capability of 50 mA supports diverse drive requirements.
- Compliance to RoHS and AEC-Q100 automotive standard certifications.
Product Description
DiodesZetex LM2904M8-13 is a high-performance operational amplifier featuring a 700 kHz gain bandwidth product and housed in an 8-pin MSOP surface mount package. It operates across a broad voltage supply range extending from 3 V up to 36 V, making it suitable for a variety of industrial and automotive applications.
This dual-channel operational amplifier offers precise electrical characteristics such as low input bias current at -500 nA, an input offset voltage of 10 mV, and an input offset current of 150 nA, ensuring high accuracy in signal amplification tasks. The device supports an output current of 50 mA, catering well to moderate load requirements.
Engineered to operate reliably in a wide temperature range from -40°C to 125°C, the LM2904M8-13 complies with stringent RoHS environmental standards and the AEC-Q100 automotive quality standard, underscoring its suitability for automotive and high-reliability environments.
The compact MSOP package measures 3.1 mm in length and width, and 0.95 mm in height, offering space-saving advantages on densely populated printed circuit boards. Its surface mount design facilitates automated assembly and efficient manufacturing processes.
Dual operational amplifier channels provide versatile circuit design options. High gain bandwidth product supports fast signal processing up to 700 kHz. Wide voltage supply range enables usage in diverse power conditions.
Robust operating temperature extends device applicability to harsh environments. Low input bias and offset currents contribute to signal fidelity and accuracy. 50 mA output current capability aids in driving loads and buffering signals.
RoHS compliance ensures adherence to environmental regulations. AEC-Q100 certification guarantees automotive reliability and quality. Compact MSOP 8-pin package aids miniaturization and automated assembly.
This Operational Amplifier is ideal for industrial electronics, automotive circuits, instrumentation, and general-purpose amplification needs. Its combination of precision, durability, and compact form factor makes it a reliable choice for designers seeking performance in a small footprint.
Explore more DiodesZetex semiconductor amplifiers on EnvMart for complete electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 700 kHz, allowing for fast signal processing capabilities.
It operates within a supply voltage range of 3 V to 36 V, making it versatile for various applications.
The MSOP package measures 3.1 mm in length, 3.1 mm in width, and 0.95 mm in height, aiding in space-saving designs.
It has an output current capability of 50 mA, which supports diverse drive requirements.
The input bias current for this model is -500 nA, contributing to its precision in amplification tasks.
The input offset voltage is specified at 10 mV, ensuring accuracy in signal amplification.
It operates reliably within a temperature range of -40°C to 125°C, making it suitable for harsh environments.
The LM2904M8-13 complies with the AEC-Q100 automotive quality standard, ensuring reliability in automotive applications.
This model features a surface mount design, which facilitates efficient PCB placement and automated assembly.
The input offset current is 150 nA, which is important for maintaining signal fidelity.
It is compliant with RoHS environmental standards, ensuring it meets regulatory requirements.
This operational amplifier has a dual-channel configuration, allowing for versatile circuit design options.
