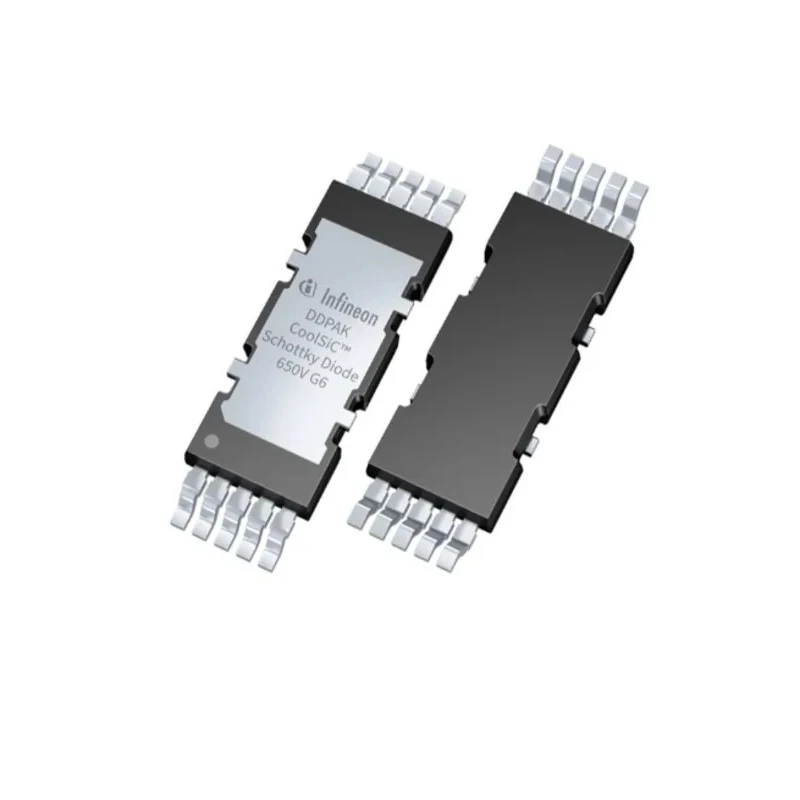

Infineon 650 V 20 A Schottky Barrier Diode Surface Mount TO-263 Package IDDD20G65C6XTMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | IDDD20G65C6XTMA1 |
| Mount Type | Surface |
| Series | IDDD20G65C6 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-263 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | JEDEC (J-STD20 and JESD22) |
| Pin Count | 10 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 650V |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 99A |
| Maximum Forward Voltage Vf | 1.25V |
Key Features
- Equipped with a surface mount TO-263 package suitable for automated assembly.
- Maximum continuous forward current of 20 A ensuring reliable conduction under load.
- Peak reverse repetitive voltage of 650 V for effective blocking in power circuits.
- Peak non-repetitive forward surge current rating of 99 A for transient protection.
- Operating temperature range from -55°C to 175°C allowing use in harsh environments.
- Maximum forward voltage drop of 1.25 V optimizing efficiency and reducing power loss.
- Extremely low peak reverse current of 2 µA minimizing leakage and standby losses.
- Compliant with JEDEC standards J-STD20 and JESD22 for quality and reliability.
Product Description
Infineon IDDD20G65C6XTMA1 is a Schottky Barrier Diode designed for high power and high efficiency applications. Featuring a surface mount TO-263 10-pin Double DPAK package, this diode delivers a maximum continuous forward current of 20 A and peak reverse repetitive voltage of 650 V, making it suitable for robust power electronics functions.
The diode supports a wide operating temperature range from -55°C to 175°C and has a maximum forward voltage drop of 1.25 V, ensuring reduced power dissipation and improved energy efficiency in circuits. It exhibits a very low peak reverse current of 2 µA, reducing leakage and enhancing device reliability.
The device complies with JEDEC standards J-STD20 and JESD22, guaranteeing quality and endurance under industrial conditions. Its 10-pin DDPAK package facilitates top-side cooling, providing optimal thermal management during operation.
This Schottky diode is ideal for use in industrial and commercial applications such as power supply units in PCs, solar energy converters, telecommunications infrastructure, and server power systems.
Equipped with a surface mount TO-263 package suitable for automated assembly. Maximum continuous forward current of 20 A. Peak reverse repetitive voltage of 650 V. Peak non-repetitive forward surge current of 99 A. Extensive operating temperature range from -55°C up to 175°C.
Low forward voltage (1.25 V) contributing to efficiency. Minimal peak reverse current of 2 µA. Compliance with JEDEC standards for reliability. Top-side cooling via Double DPAK package. Widely applicable in power electronics for industrial and commercial use.
Discover more innovative electronic components and related products in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Infineon IDDD20G65C6XTMA1 is 20 A.
This model has a peak reverse repetitive voltage rating of 650 V, making it suitable for robust power electronics applications.
The operating temperature range for this diode is from -55°C to 175°C, allowing for use in harsh environments.
The maximum forward voltage drop of this diode is 1.25 V, which helps optimize efficiency and reduce power loss.
The peak non-repetitive forward surge current rating for this model is 99 A, providing transient protection.
This Schottky diode exhibits a very low peak reverse current of 2 µA, minimizing leakage and standby losses.
The diode is housed in a surface mount TO-263 package, which is suitable for automated assembly.
The TO-263 package of this model has 10 pins.
It complies with JEDEC standards J-STD20 and JESD22, ensuring quality and reliability in industrial applications.
This diode is suitable for use in power supply units in PCs, solar energy converters, telecommunications infrastructure, and server power systems.
The country of origin for the Infineon IDDD20G65C6XTMA1 is India.
The top-side cooling feature of the Double DPAK package facilitates optimal thermal management during operation, enhancing performance.
