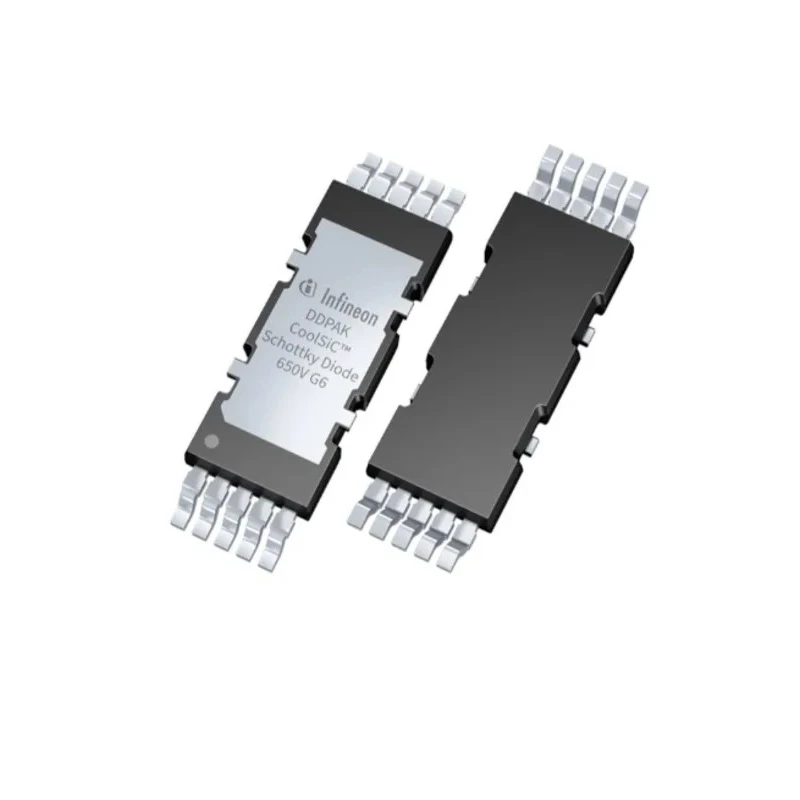

Infineon 650 V 20 A Surface Mount Schottky Barrier Diode 10-Pin TO-263 Package IDDD20G65C6XTMA1

Free Delivery in India | Lowest Global Shipping Charges

Infineon 650 V 20 A Surface Mount Schottky Barrier Diode 10-Pin TO-263 Package IDDD20G65C6XTMA1

Name: Infineon 650 V 20 A Surface Mount Schottky Barrier Diode 10-Pin TO-263 Package IDDD20G65C6XTMA1
Brand: Infineon
SKU: 300540
Price: 9.77 USD
Availability: InStock



Category Schottky Barrier Diode Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Model	IDDD20G65C6XTMA1
Mount Type	Surface
Series	IDDD20G65C6
Maximum Operating Temperature	175°C
Package Type	TO-263
Minimum Operating Temperature	-55°C
Standards/Approvals	JEDEC (J-STD20 and JESD22)
Pin Count	10
Maximum Continuous Forward Current If	20A
Peak Reverse Repetitive Voltage Vrrm	650V
Rectifier Type	Schottky
Peak Reverse Current Ir	2μA
Peak Non-Repetitive Forward Surge Current Ifsm	99A
Maximum Forward Voltage Vf	1.25V

Key Features

Surface mount package type TO-263 ensures easy PCB integration.
Low maximum forward voltage of 1.25 V improves efficiency.
High peak non-repetitive forward surge current of 99 A supports transient loads.
Wide operating temperature range from -55°C to 175°C enables robust industrial use.
Very low peak reverse current of 2 μA reduces leakage losses.
Compliance with JEDEC J-STD20 and JESD22 standards guarantees quality.
Pin count of 10 suitable for complex circuit configurations.
Ideal for high power switching mode power supply (SMPS) and automotive applications.

Product Description

Infineon IDDD20G65C6XTMA1 is a high-performance 650 V 20 A Schottky barrier diode designed for surface mount applications in demanding electronics environments. Packaged in a TO-263 10-pin Double DPAK (DDPAK) format, this device offers enhanced thermal management with top-side cooling technology, making it suitable for high power circuits such as PC power supplies, solar inverters, servers, and telecom equipment.

The diode features a best-in-class forward voltage of 1.25 V and excellent figure of merit (Qc x Vf), resulting in improved efficiency and lower power loss. With a peak non-repetitive surge current capacity of 99 A and a peak reverse current as low as 2 μA, the IDDD20G65C6XTMA1 is engineered for robust, reliable operation across a wide temperature range from -55°C to 175°C.

Its high dv/dt ruggedness of 150 V/ns ensures resistance against voltage spikes in high-frequency switching applications. Compliance with JEDEC J-STD20 and JESD22 standards underlines its quality and reliability for industrial and manufacturing use.

This Schottky diode is ideal for use in industrial and commercial power electronics, including high-performance switching mode power supplies, solar energy systems, telecommunications infrastructure, and automotive electronics, where low forward voltage drop and rapid switching are critical.

Surface mount TO-263 package with Double DPAK design for efficient heat dissipation. Maximum continuous forward current: 20 A. Peak reverse repetitive voltage: 650 V. Maximum forward voltage: 1.25 V. Peak non-repetitive forward surge current: 99 A.

Operating temperature range: -55°C to 175°C. Low peak reverse current of 2 μA. Meets JEDEC (J-STD20 and JESD22) standards. 10-pin configuration optimized for complex circuitry. Set includes one Schottky Barrier Diode with model IDDD20G65C6XTMA1, ready for easy insertion into machinery and electronics assembly, increasing production efficiency.

Explore the full range of Infineon Schottky diodes at EnvMart for high-quality semiconductor components suited for your industrial, laboratory, and electronic systems.
