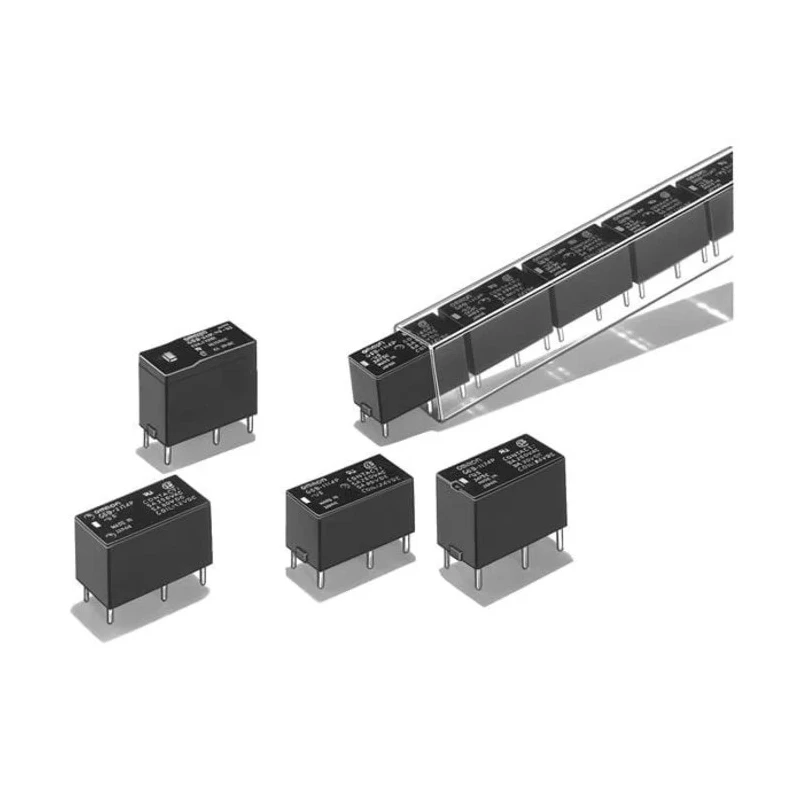

Omron PCB Relay 5V DC Coil 5A Switching Current DPST G6B-2214P-US DC5
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 11mm |
| Length | 20mm |
| Model | G6B-2214P-US DC5 |
| Width | 11mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G6B |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -25°C |
| Switching Current | 5A |
| Terminal type | Solder |
| Contact Resistance | 30mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 83.3Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 380V ac |
| Coil Power | 200mW |
Key Features
- The relay coil operates at 5 volts DC with a coil resistance of 83.3 ohms.
- Designed for switching AC voltages up to 380V and DC voltages up to 125V with a maximum switching power of 1.25 kVA.
- Compact footprint measuring 20mm length, 11mm width, and 11mm height.
- Features silver alloy contact material with low contact resistance of 30 milliohms ensuring reliable electrical conduction.
- Operates effectively in a temperature range from -25°C to 70°C.
- Mount type is PCB with solder terminal connectivity for secure installation.
- Fully sealed construction with high dielectric strength of 3000VAC provides excellent insulation between coil and contacts.
- Suitable for industrial, automation, and electrical control applications requiring precise switching.
Product Description
Omron G6B-2214P-US DC5 PCB Relay is a high-quality power relay featuring a 5V DC coil and 5A switching current with double pole single throw (DPST) contact configuration. It is specifically designed for PCB mounting, ideal for industrial, automation, electrical control, and signal conditioning applications requiring high reliability and precise operation.
This miniature relay offers a coil resistance of 83.3 ohms, coil power of 200mW, and supports switching voltages up to 380V AC and 125V DC with a switching power capacity of 1.25 kVA. The contacts are made from silver alloy, cadmium-free, ensuring longevity and low contact resistance of 30 milliohms.
The relay features high insulation properties, with dielectric strength rated at 3000VAC between the coil and contacts, yielding robust performance under electrical stress. It is rated to operate within an ambient temperature range from -25°C to 70°C, suitable for demanding environments.
The compact relay measures 20mm in length, 11mm in width, and 11mm in height, making it space-efficient for PCB layouts with solder terminal type for reliable connections. This relay adheres to RoHS standards, reflecting its compliance with environmental regulations.
The coil voltage is 5V DC with coil resistance of 83.3 ohms. DPST contact configuration with silver alloy contacts. Switching current capacity of 5A and switching power of 1.25 kVA. Maximum switching voltages: 380V AC and 125V DC.
Operating temperature range from -25°C to 70°C. Compact dimensions: 20mm × 11mm × 11mm (L×W×H). Coil power consumption is 200mW. High dielectric strength of 3000VAC for coil-contact insulation.
This reliable Omron relay is widely used in industrial control systems, electrical automation equipment, HVAC controls, manufacturing processes, and other signal conditioning systems where secure and efficient switching is critical.
Explore more Relays and electrical control components in our Electronics & Electricals catalog at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 5V DC.
This model has a maximum switching current of 5A.
The relay measures 20mm in length, 11mm in width, and 11mm in height.
It features a double pole single throw (DPST) contact configuration.
The relay can switch AC voltages up to 380V and DC voltages up to 125V.
The coil resistance is 83.3 ohms.
It operates effectively in a temperature range from -25°C to 70°C.
This relay is designed for PCB mounting with solder terminal connectivity.
The contacts are made from silver alloy, which ensures low contact resistance.
The relay has a high dielectric strength of 3000VAC between the coil and contacts.
The coil power consumption is 200mW.
Yes, this relay adheres to RoHS standards for environmental compliance.
