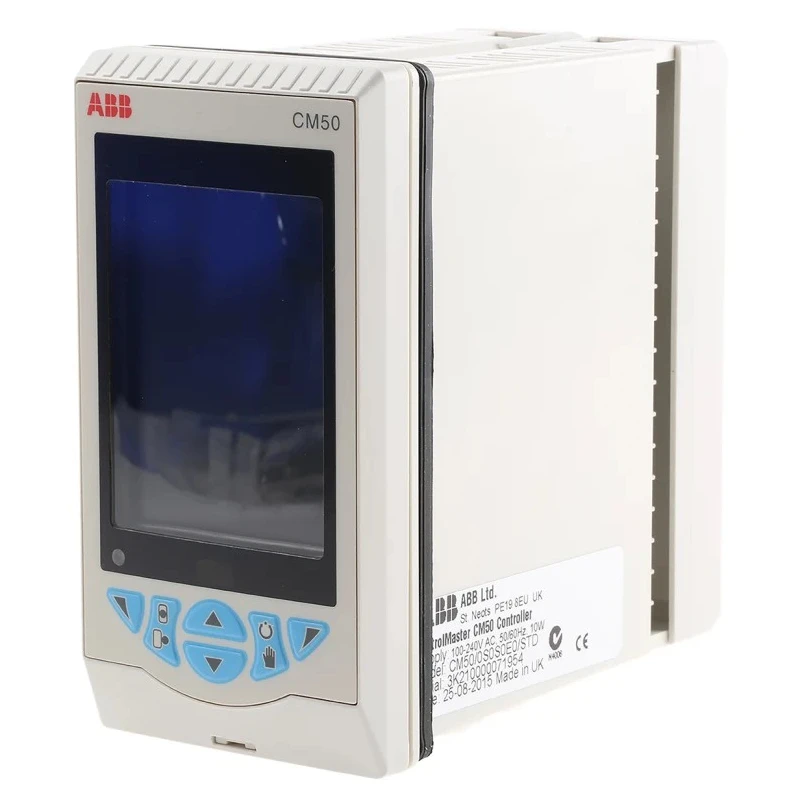

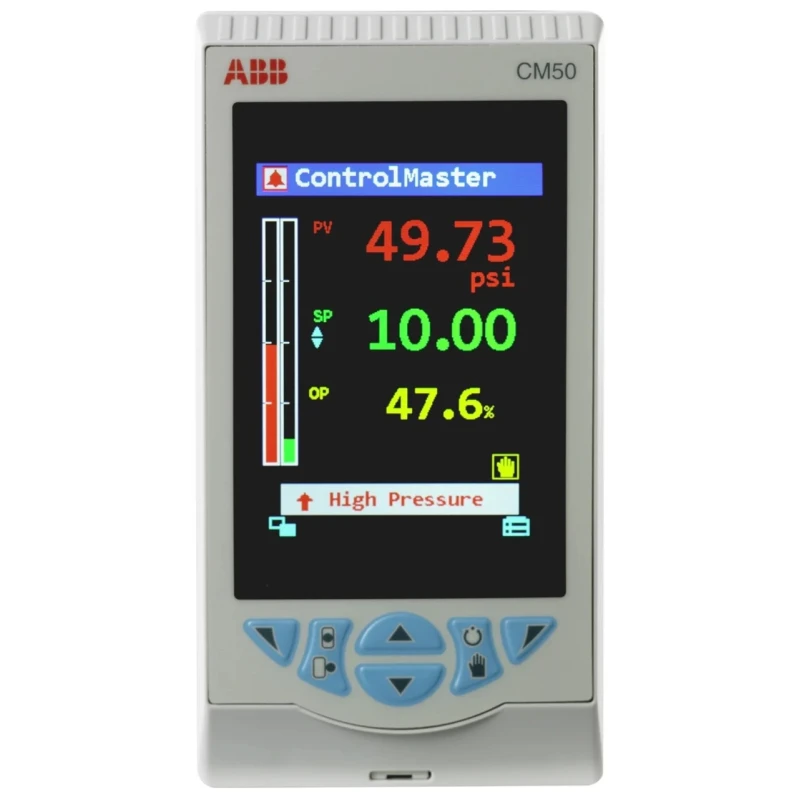

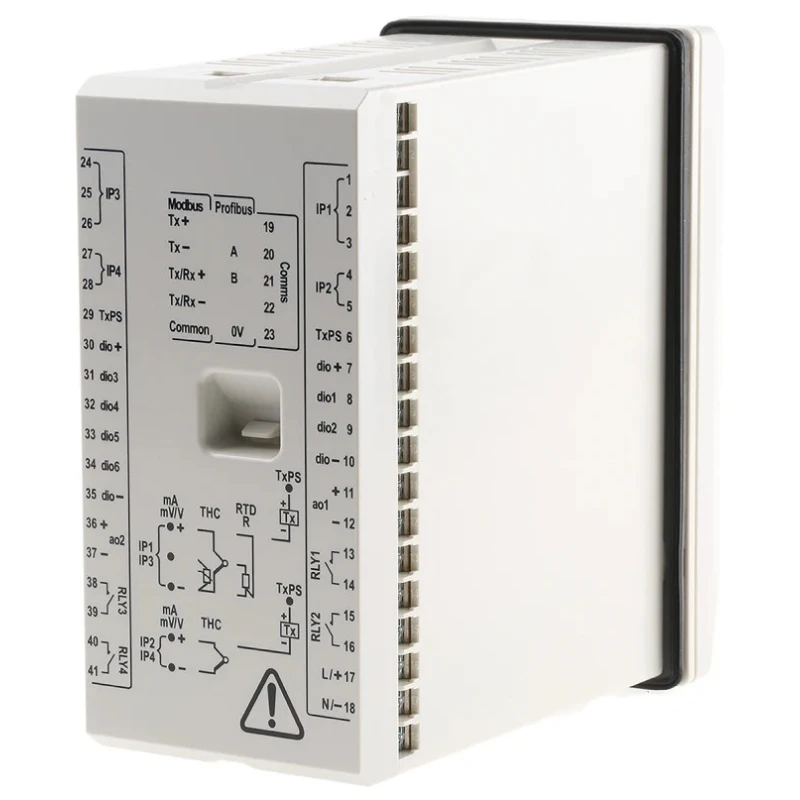

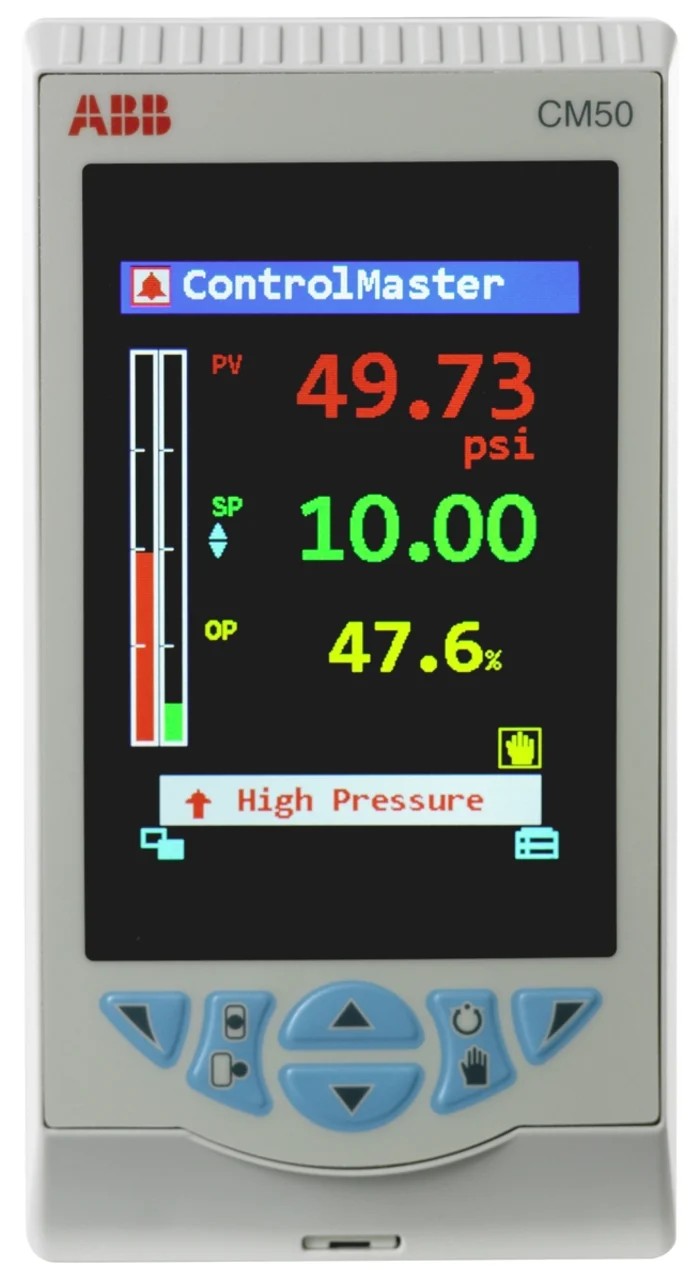

ABB CM50 Panel Mount Controller 2 Input 5 Output Digital Analogue Relay 264V AC On-Off CM50

Free Delivery in India | Lowest Global Shipping Charges

ABB CM50 Panel Mount Controller 2 Input 5 Output Digital Analogue Relay 264V AC On-Off CM50



Category Temperature Controllers Brand ABB Condition New

Specifications

Country of Origin	United Kingdom
Display Type	LCD, Multi Line, TFT
Brand	ABB
Length	76mm
Model	CM50
IP Rating	IP66
Width	14.4mm
Mount Type	Panel Mount
Number of inputs	2
Output type	Digital, Analogue, Relay
Series	CM50
Input Type	Thermocouple
Maximum Operating Temperature	55°C
Control Type	On-Off
Minimum Operating Temperature	0°C
Maximum Current	5A
Number of outputs	5
Maximum Voltage	240V ac
Maximum Supply Voltage	264V ac
Digital Comms	RS485/Modbus, Modbus TCP, Ethernet
Diagnostics	Alarm and Diagnostic Messages Displayed
Panel Depth	123mm

Key Features

Features 2 inputs and 5 outputs for versatile control applications.
Operates on a maximum supply voltage of 264V AC with a maximum current rating of 5A.
Equipped with RS485/Modbus, Modbus TCP, and Ethernet digital communications.
IP66 rated enclosure protects against dust and high-pressure water jets.
LCD multi-line TFT display for clear process monitoring.
Supports thermocouple input type suited for temperature measurement.
Password-protected interface ensures system security against unauthorized access.
Compact dimensions of 76mm width, 144mm height, and 123mm panel depth allow easy panel mounting.

Product Description

ABB CM50 Panel Mount Controller CM50 is a high-functionality process control device integrating 2 analogue/digital inputs and 5 outputs including digital, analogue, and relay types for comprehensive industrial control.

This panel mount controller operates on a 264V AC power supply with a maximum current rating of 5A, ensuring compatibility with typical industrial electrical systems.

The unit features a rugged IP66 rated enclosure, protecting it from dust ingress and high-pressure water jets, suitable for harsh industrial conditions such as water treatment plants, cold storage facilities, and food production machinery.

Its LCD multi-line TFT display facilitates intuitive monitoring and control, while the password-protected interface enhances operational security by preventing unauthorized tampering.

It supports thermocouple input types and delivers reliable on-off control type functionality. Communication capabilities include RS485/Modbus, Modbus TCP, and Ethernet protocols, enabling integration into modern automation and control systems.

Dimensionally compact with a width of 76mm, height of 144mm, and panel depth of 123mm, it fits conveniently into standard control panels, supplied with mounting fasteners for immediate installation.

Diagnostic features offer detailed alarm messages and a log of diagnostic events, improving fault detection and maintenance efficiency.

Commonly used across industrial sectors, the CM50 controller is ideal for applications requiring precise control and monitoring such as industrial automation, process control, water treatment, and temperature regulation in manufacturing lines.

Features 2 inputs and 5 outputs for process control. Operates at 264V AC with 5A max current rating. Communication via RS485/Modbus, Modbus TCP, Ethernet. IP66 rated for high protection in harsh environments. Multi-line TFT LCD display with password protection.

Compact panel mount design with supplied fasteners. Thermocouple input type with on-off control functionality. Detailed alarm and diagnostic message display and logging. Operating temperature range 0°C to 55°C for industrial use.
