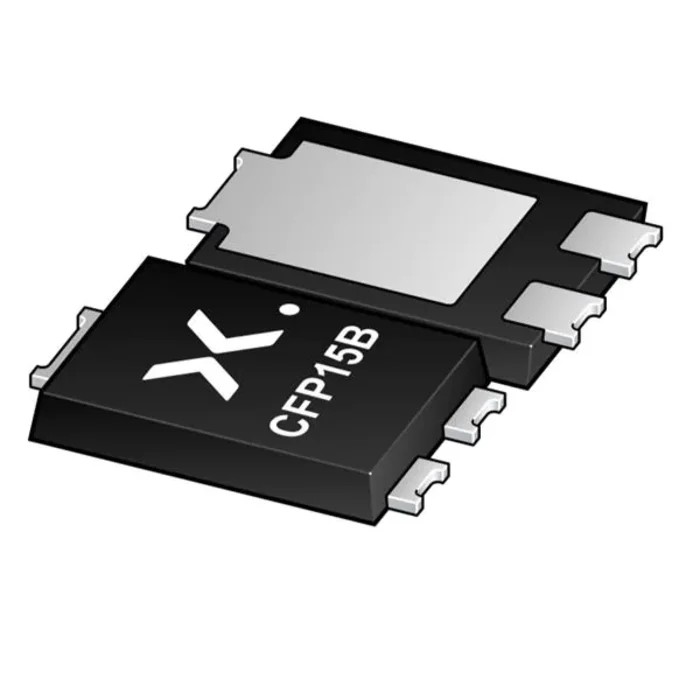

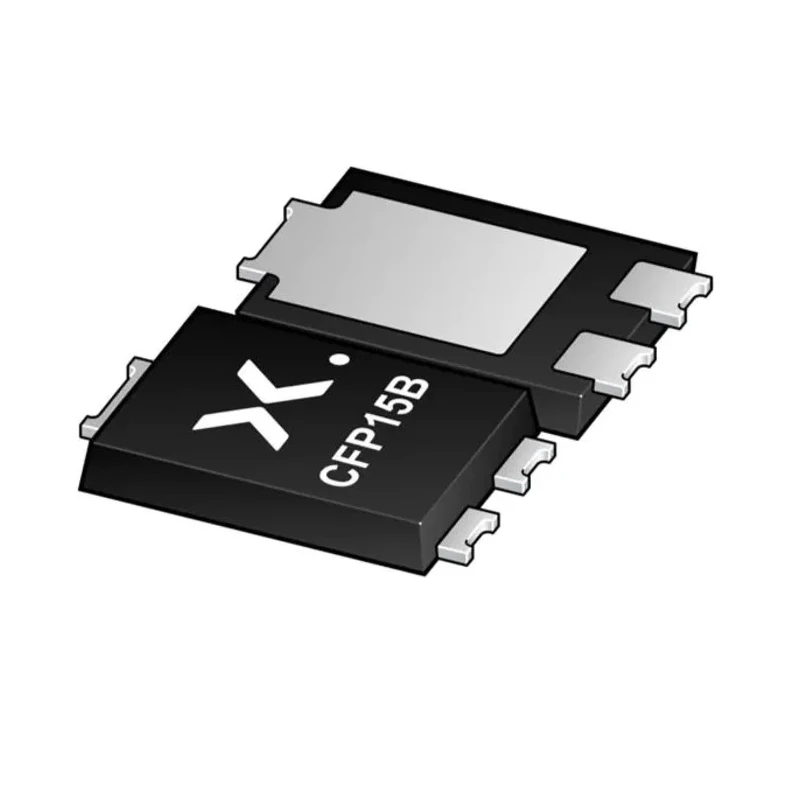

Nexperia 100 V 3 A Surface Mount Schottky Barrier Rectifier Diode CFP3 PMEG100T030ELPE-QZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PMEG100T030ELPE-QZ |
| Mount Type | Surface |
| Series | PMEG |
| Maximum Operating Temperature | 175°C |
| Package Type | CFP3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | AEC-Q101 |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky Barrier |
| Peak Reverse Current Ir | 3mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 710mV |
| Peak Reverse Recovery Time trr | 12ns |
Key Features
- Encapsulated in a CFP3 (SOD123W) small flat lead surface-mounted device.
- Low forward voltage and low reverse leakage current for efficient operation.
- High power capability due to clip-bonding technology.
- Qualified to AEC-Q101 standard, suitable for automotive applications.
- Operates within temperature range from -55°C to 175°C.
- Peak forward surge current rating of 100 A for robust transient handling.
- Fast recovery time of 12 ns to minimize switching losses.
- Recommended for use in DC-to-DC converters, automotive LED lighting, and reverse polarity protection.
Product Description
Nexperia PMEG100T030ELPE-QZ is a high efficiency 100 V 3 A Schottky Barrier Rectifier Diode designed for surface mounting in electronic circuits. Encapsulated in the compact CFP3 (SOD123W) plastic package, it offers low forward voltage drop (710 mV typical) and low leakage current resulting in improved power efficiency and thermal performance.
This device is constructed using clip-bonding technology, providing high power capability and durability for industrial and automotive environments. It operates reliably between -55°C to 175°C, meeting AEC-Q101 automotive quality standards which ensures suitability in harsh conditions.
The diode features a fast peak reverse recovery time of 12 ns and a high peak forward surge current of 100 A for transient events, making it ideal for switch mode power supply designs and freewheeling diode applications. Automotive uses include LED lighting circuits, reverse polarity protection, and high efficiency DC-to-DC converters.
Its 3-pin CFP3 surface mount configuration allows compact PCB layouts with efficient thermal management. This rectifier supports single diode configuration usage scenarios requiring robust and efficient rectification with minimal power loss.
Encapsulated in CFP3 small and flat lead SMD plastic package. Low forward voltage improves energy efficiency. Low reverse leakage current and low Qrr contribute to minimal power loss. High surge current capability enhances transient tolerance.
Qualified to meet stringent automotive AEC-Q101 standard. Wide operating temperature range for varied industrial applications. Supports automotive LED lighting and DC-to-DC converter applications. Fast recovery time reduces switching losses in power electronics.
This diode is ideal for industrial, automotive, electronics manufacturing, and laboratory applications where reliable high-speed rectification is needed. Browse the Electronics & Electricals category on EnvMart for related semiconductor components including rectifiers, Schottky Diodes, and power electronics devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this diode is 175°C.
It has a peak forward surge current rating of 100 A, which allows for robust transient handling.
The typical forward voltage drop is 710 mV, contributing to its energy efficiency.
The peak reverse recovery time for this diode is 12 ns, which helps minimize switching losses.
This diode is encapsulated in a CFP3 (SOD123W) surface mount package.
The minimum operating temperature is -55°C, making it suitable for harsh environments.
It is qualified to the AEC-Q101 standard, which ensures its suitability for automotive applications.
The maximum continuous forward current is 3 A, allowing for efficient operation in various applications.
This diode is configured as a single diode, suitable for various rectification scenarios.
The peak reverse current is rated at 3 mA, contributing to its efficient performance.
It is recommended for use in DC-to-DC converters, automotive LED lighting, and reverse polarity protection.
The clip-bonding technology enhances the power capability and durability of the diode, making it suitable for industrial and automotive environments.
