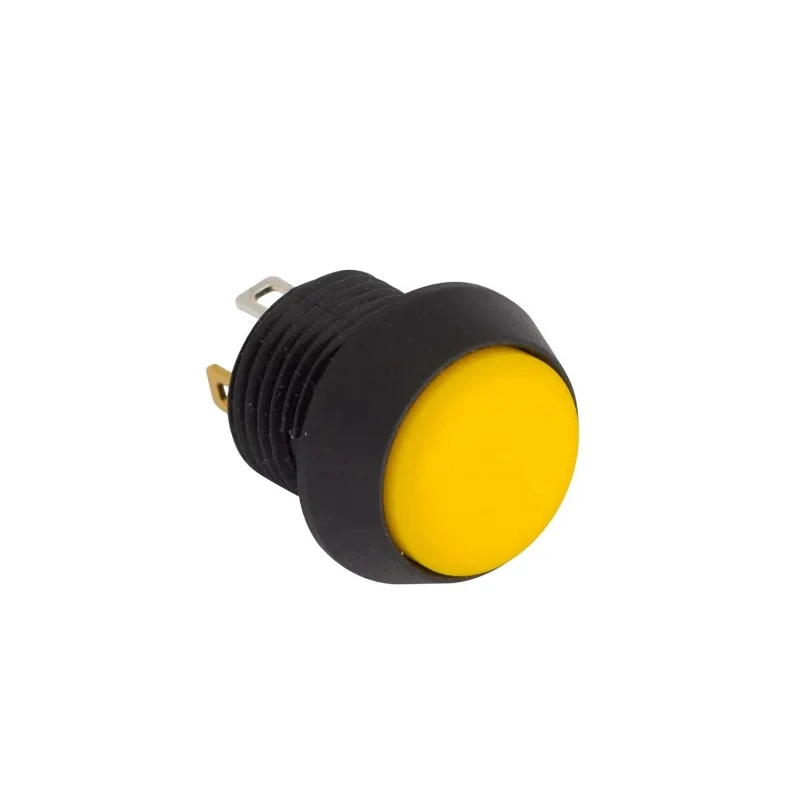

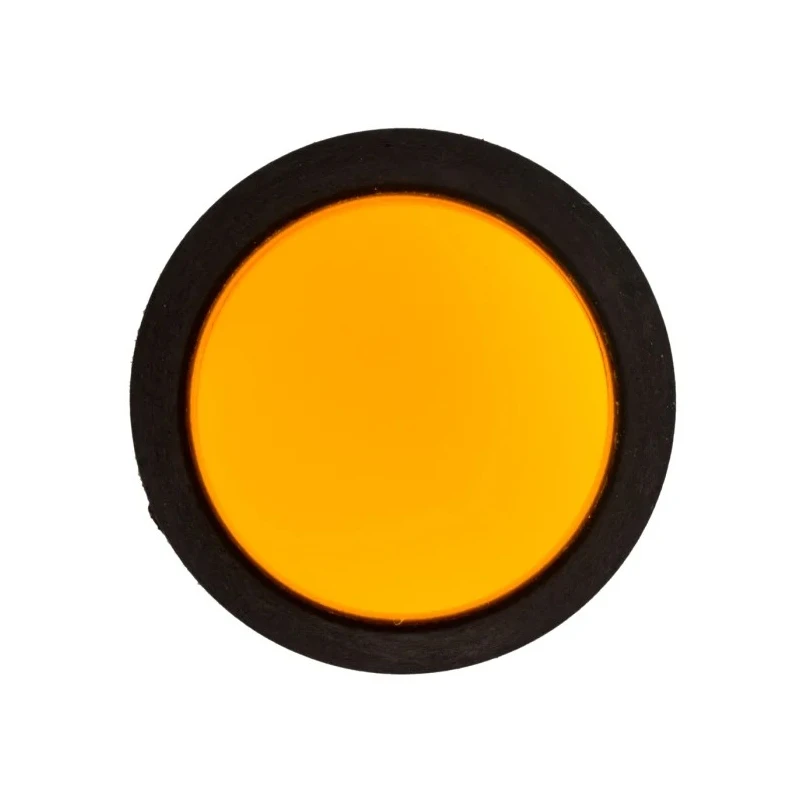

EOZ FL Series Illuminated Push Button Switch, Momentary, Panel Mount, Yellow LED, 13.5 mm Cutout, SPST, IP67, 2.5 kV FL13LY5

The EOZ FL13LY5 is an illuminated push button switch designed for industrial and commercial panel applications. It operates momentarily with a SPST switch configuration, providing tactile feedback and reliable control. Featuring a yellow LED, the entire front cap is fully illuminated for clear visibility and enhanced operator awareness.

This switch is panel mounted and fits into a 13.5 mm cutout, compatible with standard panel thicknesses from 1 mm to 6 mm. The design ensures vandal resistance and environmental protection with an IP67 rating, making it suitable for harsh operating environments including industrial automation, electrical equipment cabinets, and control panels.

Its robust construction includes gold plated nickel contact terminals and silver plated nickel LED terminals, which ensure long-lasting performance and corrosion resistance. Operating temperature ranges from -40°C up to +85°C empower it to perform reliably in extreme climates.

The switch withstands a contact AC voltage rating of 2.5 kV and a contact current of 65 mA, meeting rigorous industrial standards. The actuator style is a cap type with a plug-in terminal interface sized 2.8 x 0.5 mm for quick and secure installation.

This product complies with RoHS directives, reflecting environmentally responsible manufacturing practices. The EOZ FL series stands out as the first small-sized push button offering full face illumination, accommodating both single and dual illumination options for varied signalling demands.

The switch delivers IP67 ingress protection for dust-tight and water-immersion resistant performance. Operating temperature suitability from -40 to 85 degrees Celsius allows extensive environmental deployments. Terminal and contact materials use precious plating for durability and conductivity.

Ideal for industrial, laboratory, manufacturing, and automation sectors, this illuminated push button switch supports safety and precision control needs. Its compact size and robust features make it a reliable choice for electrical switch panels and control units.
