| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PDTC144EQB-QZ |
| Mount Type | Surface |
| Series | PDTC144E |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1110D-3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | 50V |
| Minimum DC Current Gain hFE | 80 |
| Transistor Polarity | NPN |
| Maximum Emitter Base Voltage VEBO | 10V |
| Maximum Collector Base Voltage VCBO | 50V |
| Automotive Standard | AEC-Q101 |
| Maximum DC Collector Current Idc | 100mA |
| Transistor Configuration | NPN |
| Maximum Transition Frequency ft | 230MHz |

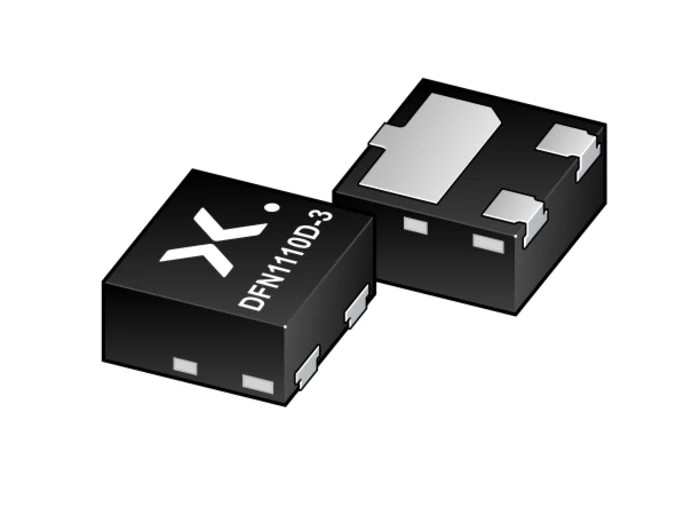

Nexperia PDTC144EQB-QZ resistor-equipped NPN transistor is engineered for digital electronic applications requiring a compact and efficient switching solution. This transistor comes housed in a low-profile 3-pin DFN1110D-3 leadless surface-mounted device, enabling flexible and compact PCB designs.
It supports a maximum DC collector current of 100 mA and a collector-emitter voltage rating of 50 V, making it suitable for switching and amplification tasks in various electronic circuits. The built-in resistors reduce the need for external components, simplifying circuit design and decreasing assembly costs.
The device is designed with a low package height of 0.5 mm and includes side-wettable flanks to support reliable soldering and inspection processes such as automatic optical inspection (AOI). Its broad operating temperature range from -55°C to 150°C ensures functioning under demanding environmental conditions.
Compliance with RoHS and automotive standard AEC-Q101 certifies this transistor's suitability for automotive and industrial applications. The PDTC144EQB-QZ is a cost-saving alternative to the BC857 series in digital applications, ideal for controlling integrated circuit inputs and switching loads.
Maximum DC collector current of 100 mA. Maximum collector-emitter voltage of 50 V. Compact DFN1110D-3 3-pin surface-mount package. Built-in resistors for simplified circuitry. Low profile with 0.5 mm package height. Wide operating temperature range from -55°C to 150°C.
RoHS compliant and meets automotive AEC-Q101 standard. Supports automatic optical inspection (AOI) compatibility. Ideal for digital switching and controlling IC inputs.
Ideal for use in industrial, automotive, and commercial digital electronics, this transistor facilitates efficient design workflows and reliable operation. For more products in semiconductor discrete components and Bipolar Transistors, explore the EnvMart catalog.
