| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PDTC114YQBZ |
| Mount Type | Surface |
| Series | PDTC114Y |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1110D-3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | 50V |
| Minimum DC Current Gain hFE | 100 |
| Transistor Polarity | NPN |
| Maximum Emitter Base Voltage VEBO | 6V |
| Maximum Collector Base Voltage VCBO | 50V |
| Automotive Standard | AEC-Q101 |
| Maximum DC Collector Current Idc | 100mA |
| Transistor Configuration | NPN |
| Maximum Transition Frequency ft | 230MHz |

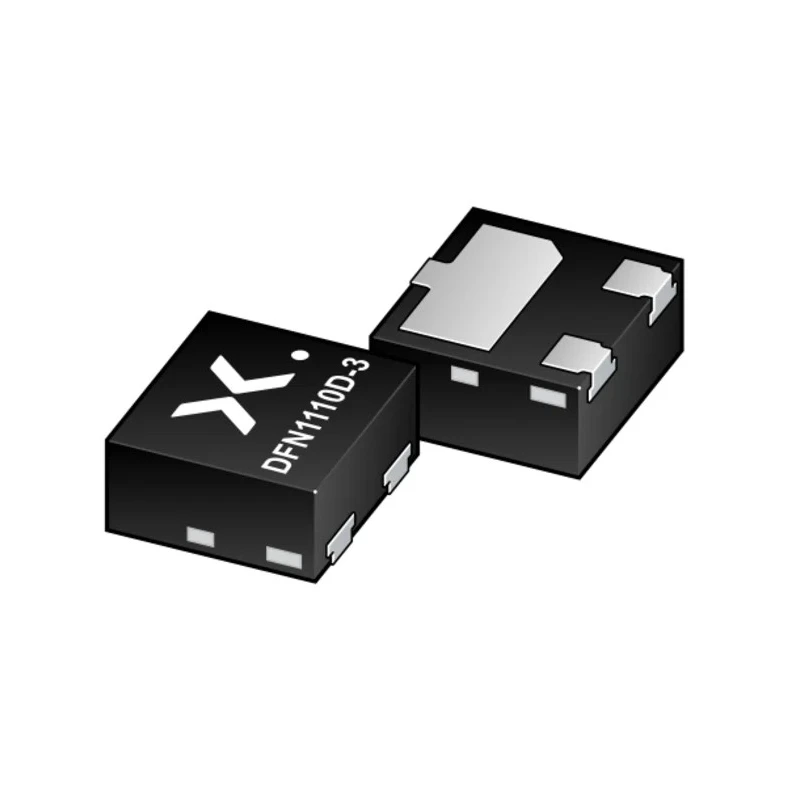

The Nexperia PDTC114YQBZ is a resistor-equipped NPN transistor designed for compact and cost-efficient digital and switching applications. This device supports a maximum DC collector current of 100 mA and can sustain collector-emitter voltages up to 50 V, housed in an ultra-small 3-pin DFN1110D-3 surface mount plastic package with side-wettable flanks for advanced solder joint inspection.
Incorporating built-in resistors, this transistor reduces the overall component count on your PCB, simplifying circuit design and lowering pick and place costs. Its low profile of 0.5 mm height is ideal for space-constrained assemblies and automatic optical inspection processes.
Operating over a broad temperature range from -55°C to 150°C and maintaining performance up to a transition frequency of 230 MHz, it is suitable for demanding industrial, automotive, and consumer electronics environments.
Compliant with RoHS regulations and the stringent automotive standard AEC-Q101, this transistor is also a cost-saving option for replacing BC857 series transistors in digital switching and input control applications.
This product is surface mount compatible, enabling efficient assembly of printed circuit boards across various electronics manufacturing sectors. Integrated resistor simplifies circuit design and lowers component count. Compact DFN1110D-3 package supports automatic optical inspection (AOI).
High maximum currents and voltages support various switching applications. Wide operating temperature range supports automotive and industrial usage. Conforms with RoHS and AEC-Q101 automotive standards ensuring reliability.
Minimal emitter-base voltage and robust gain provide stable performance. Low package height reduces profile for compact electronics assemblies. Improves manufacturing efficiency with surface mount design. Cost-effective alternative for BC857 transistor series in digital electronics.
Suitable for controlling IC inputs and switching loads in electronic circuits.
Explore more Nexperia Bipolar Transistors and resistor-equipped transistor products at EnvMart for trustworthy semiconductor components optimized for your industrial, automotive, and laboratory applications.
