Nexperia Resistor-Equipped PNP Transistor -100 mA, -50 V, 3-Pin DFN1412D-3 PDTA143ZQCZ

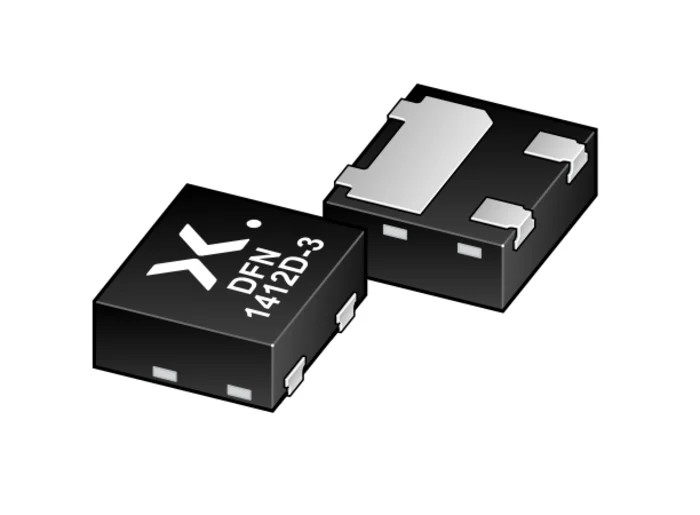

Nexperia PDTA143ZQCZ is a resistor-equipped PNP bipolar transistor designed for surface mounting in an ultra small 3-pin DFN1412D-3 package with a low profile of 0.5 mm. This transistor supports maximum DC collector current of -100 mA and a maximum collector-emitter voltage (Vceo) of -50 V, suitable for compact digital and switching applications.

The transistor integrates built-in resistors, which simplifies circuit design and reduces the overall component count, aiding in cost saving and efficient manufacturing processes. The device also features side-wettable flanks to improve solderability and is suitable for automatic optical inspection (AOI).

Operating temperature range spans from -55°C to 150°C, making it robust for various industrial, automotive, and electronic applications adhering to the strict AEC-Q101 automotive standard and RoHS environmental compliance.

Typical applications include controlling IC inputs, switching loads, and digital signal processing in compact electronic devices. Its small surface mount package reduces PCB area and enables high-density designs.

Built-in resistors simplify the circuitry. Compact DFN1412D-3 3-pin plastic package with side-wettable flanks. High reliability with RoHS compliance and automotive AEC-Q101 standard. Wide temperature operation range from -55°C to 150°C.

Supports compact digital and switching load applications. Cost-effective alternative to traditional discrete transistor solutions. Ideal for surface mount assembly and automated production. Low profile package height of 0.5 mm suitable for space-constrained designs.

Use this transistor in electronic, automotive, telecommunications, and industrial control systems requiring efficient, miniaturized PNP transistor solutions. Explore more Bipolar Transistors and semiconductor components on EnvMart for your design and manufacturing needs.
