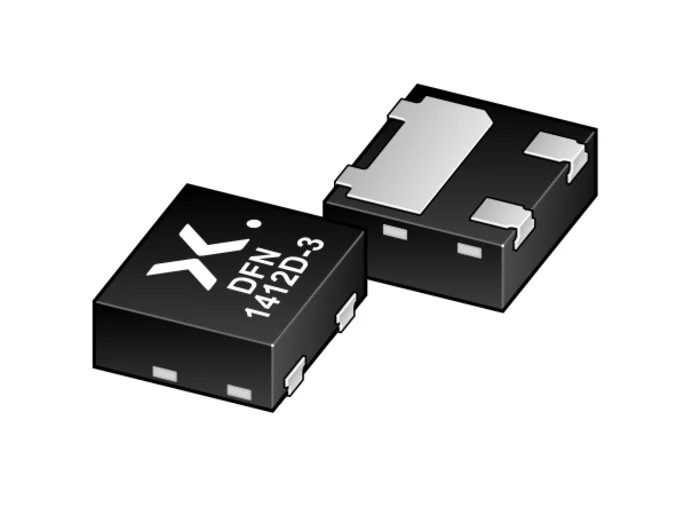

Nexperia Resistor-Equipped PNP Transistor, -100 mA DC Collector Current, -50 V Collector Emitter Voltage PDTA143ZQC-QZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PDTA143ZQC-QZ |
| Mount Type | Surface |
| Series | PDTA143Z |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1412D-3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | -50V |
| Transistor Polarity | PNP |
| Maximum Emitter Base Voltage VEBO | -10V |
| Automotive Standard | AEC-Q101 |
| Maximum DC Collector Current Idc | -100mA |
| Transistor Configuration | PNP |
Key Features
- 100 mA maximum DC collector current capability ensures efficient load switching.
- Collector-emitter voltage rating of -50 V suitable for a range of applications.
- Built-in resistors simplify circuit design and reduce component count.
- Ultra-low package height of 0.5 mm ideal for compact PCB assemblies.
- Supports surface mount technology with 3-pin DFN1412D-3 plastic package featuring side-wettable flanks.
- Operating temperature range from -55°C to 150°C ensures reliability in harsh conditions.
- Meets RoHS compliance and automotive AEC-Q101 standard for quality assurance.
- Ideal for digital switching, load control, and controlling IC inputs in industrial and automotive electronics.
Product Description
Nexperia PDTA143ZQC-QZ resistor-equipped PNP transistor incorporates integrated resistors within a compact 3-pin DFN1412D-3 surface mount package. It offers a maximum DC collector current of 100 mA and a collector-emitter voltage rating of -50 V, delivering reliable switching capability for digital electronics and load control circuits.
The device simplifies circuit design by reducing the number of external components, lowering pick-and-place costs, and providing a low profile of just 0.5 mm height. Its surface mount plastic package with side-wettable flanks facilitates automated soldering and inspection processes such as automatic optical inspection (AOI).
The transistor supports a wide operating temperature range from -55°C to 150°C, making it suitable for demanding industrial and automotive environments. Certification to RoHS and conformity to the AEC-Q101 automotive standard ensure compliance with stringent environmental and quality requirements.
This Nexperia transistor is widely used in controlling integrated circuit inputs, switching loads, and as a cost-effective alternative to the BC857 series in various digital applications.
100 mA maximum DC collector current capability ensures efficient load switching. Collector-emitter voltage rating of -50 V suitable for a range of applications. Built-in resistors simplify circuit design and reduce component count.
Ultra-low package height of 0.5 mm ideal for compact PCB assemblies. Supports surface mount technology with 3-pin DFN1412D-3 plastic package featuring side-wettable flanks. Operating temperature range from -55°C to 150°C ensures reliability in harsh conditions.
Meets RoHS compliance and automotive AEC-Q101 standard for quality assurance. Ideal for digital switching, load control, and controlling IC inputs in industrial and automotive electronics.
This product is suitable for industrial, automotive, and electronic manufacturing applications requiring compact, reliable transistor solutions. Explore similar Bipolar Transistors and semiconductors in the EnvMart catalog for your electronic component sourcing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum DC collector current for this model is -100 mA.
The collector-emitter voltage rating is -50 V, making it suitable for various applications.
This transistor comes in a DFN1412D-3 surface mount package.
The operating temperature range is from -55°C to 150°C, ensuring reliability in harsh conditions.
Yes, it meets RoHS compliance and conforms to the AEC-Q101 automotive standard.
The package height is ultra-low at just 0.5 mm, making it ideal for compact PCB assemblies.
This model has a pin count of 3.
It is a PNP transistor, designed for various digital switching and load control applications.
It incorporates integrated resistors that simplify circuit design and reduce the overall component count.
It is ideal for digital switching, load control, and controlling IC inputs in industrial and automotive electronics.
The maximum emitter-base voltage (VEBO) is -10 V.
The country of origin for this transistor is India.
