Nexperia Resistor-Equipped Transistor PNP, -100 mA, -50 V, 3-Pin DFN1412D-3 PDTA143ZQCZ

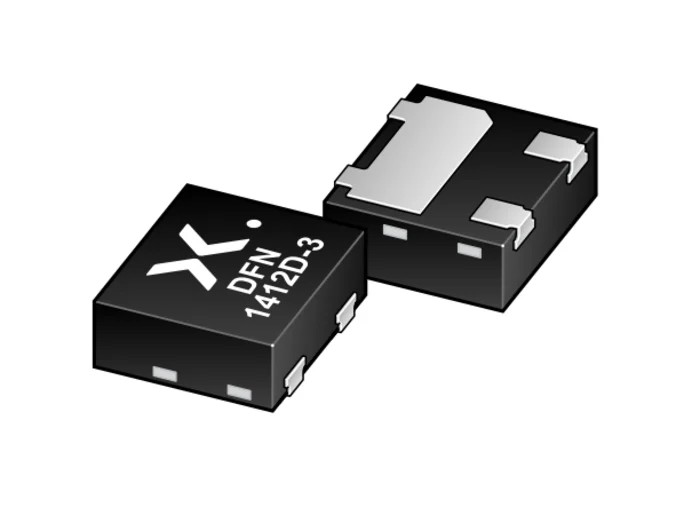

The Nexperia PDTA143ZQCZ Resistor-Equipped Transistor is a PNP transistor designed for compact and efficient circuit applications. Featuring a 3-pin DFN1412D-3 leadless surface-mounted device package with side-wettable flanks, it offers a low profile height of 0.5 mm, making it ideal for high-density PCB layouts.

This transistor supports a maximum DC collector current of -100 mA and a maximum collector emitter voltage of -50 V, with a maximum emitter base voltage of -10 V, ensuring reliable operation in various digital and switching tasks. It operates efficiently across a broad temperature range from -55°C up to 150°C, meeting automotive-grade requirements (AEC-Q101) and RoHS compliance.

Incorporating built-in resistors, the PDTA143ZQCZ simplifies circuit design by reducing external component needs and lowering pick-and-place costs. Its plastic package with side-wettable flanks improves solder joint inspection using automatic optical inspection (AOI) methods.

This device is suitable for controlling IC inputs and switching loads in digital electronic applications, providing a cost-effective alternative to the BC857 transistor series. Compact 3-pin DFN1412D-3 package for surface mount technology (SMT).

100 mA output current capacity. Built-in resistors for reduced component count. Low profile height of 0.5 mm supporting AOI solder inspection. Wide operating temperature range from -55°C to 150°C. RoHS compliant and meets automotive standard AEC-Q101.

Optimized for digital applications, IC input control, and load switching.

This transistor is ideal for industrial electronics, automotive digital systems, and various commercial electronic manufacturing applications. Explore other Bipolar Transistors and discrete semiconductor devices in the EnvMart catalog for your specific needs.
