| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PDTA143EQB-QZ |
| Mount Type | Surface |
| Series | PDTA143E |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1110D-3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | -50V |
| Transistor Polarity | PNP |
| Maximum Emitter Base Voltage VEBO | -10V |
| Automotive Standard | AEC-Q101 |
| Maximum DC Collector Current Idc | -100mA |
| Transistor Configuration | PNP |

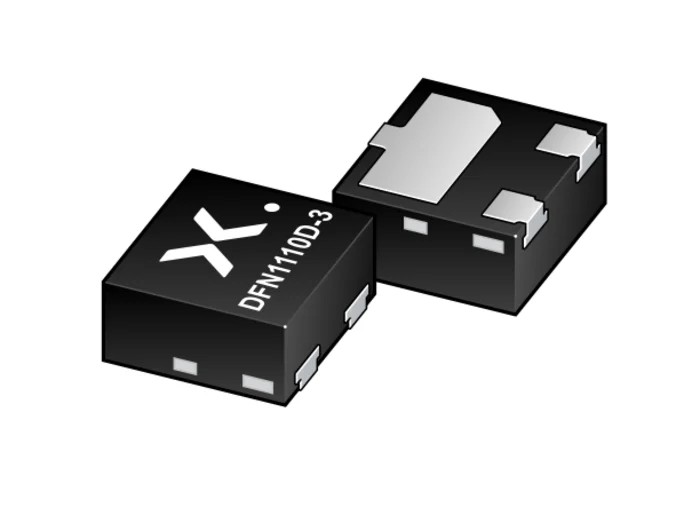

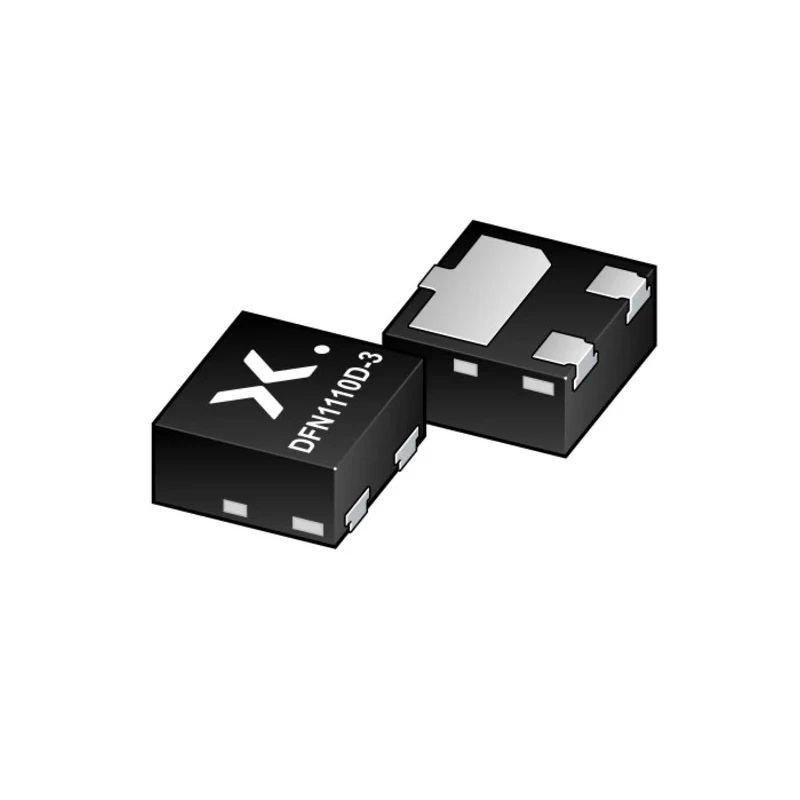

The Nexperia PDTA143EQB-QZ is a resistor-equipped transistor (RET) designed as a PNP bipolar transistor with a maximum collector current of 100 mA and collector emitter voltage rating of 50 V. It comes in an ultra-small, leadless DFN1110D-3 plastic package with side-wettable flanks, providing a low profile height of only 0.5 mm suitable for high-density circuits and surface mount technology.
Incorporation of built-in resistors within this transistor reduces the overall component count in designs and simplifies circuit complexity, leading to cost savings and efficiency improvements in manufacturing - including reductions in pick-and-place costs. The package design enables compatibility with automatic optical inspection (AOI) systems, ensuring reliable solder joint inspection during production.
Designed primarily for digital switching applications, the PDTA143EQB-QZ is a cost-effective alternative to the BC857 transistor series, offering precise transistor polarity (PNP) and configuration suitable for controlling IC inputs and switching electronic loads.
Operating temperature range extends from -55 °C to 150 °C, meeting the requirements for automotive environments under AEC-Q101 qualification and RoHS compliance, making it suitable for automotive and industrial applications.
100 mA maximum DC collector current capability ensures robust switching performance. Collector emitter voltage rating of 50 V supports a wide range of low-power circuits. Surface mount DFN1110D-3 package is ideal for compact electronic assemblies.
Integrated resistors reduce external components and simplify design. Low package height of 0.5 mm minimizes PCB footprint for high-density boards. Automotive standard AEC-Q101 certified to assure quality in rigorous applications.
Wide operating temperature range supports industrial and automotive use. Suitable for digital logic switching and load control functions. Enables cost and space savings for manufacturing and assembly processes.
Overall, the Nexperia PDTA143EQB-QZ transistor offers an advanced, compact, and efficient solution for semiconductor-based switch designs in various industrial, automotive, and digital system applications. Explore the comprehensive range of Bipolar Transistors and discrete semiconductor components in EnvMart for your project needs.
