Nexperia Resistor-Equipped PNP Transistor PDTA124XQBZ 100 mA, 50 V, 3-Pin DFN1110D-3

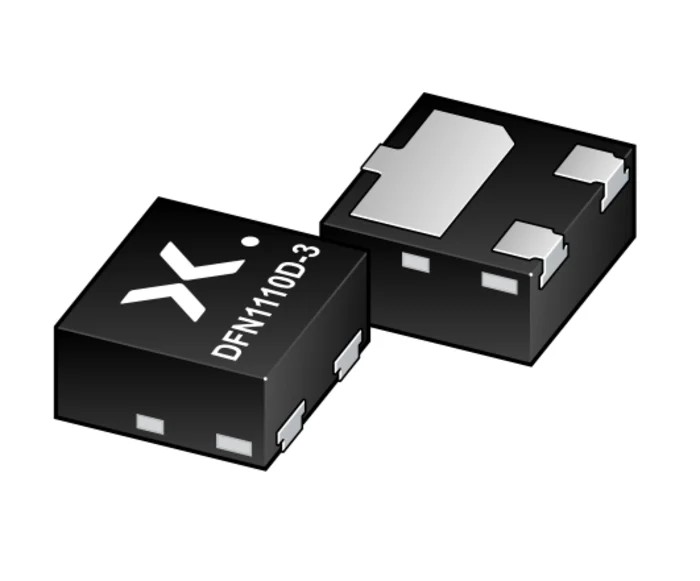

The Nexperia PDTA124XQBZ is a resistor-equipped PNP transistor designed to enhance digital circuit efficiency. It provides a maximum DC collector current of -100 mA and a maximum collector emitter voltage of -50 V, housed within an ultra-compact 3-Pin DFN1110D-3 plastic surface mount package with a low profile height of 0.5 mm.

This transistor features built-in resistors, reducing the overall component count and simplifying circuit layouts, which results in cost savings and improved manufacturing efficiency. The device is compliant with RoHS standards and automotive industry requirements, certified under the AEC-Q101 standard, ensuring reliability in automotive and industrial applications.

Operating across a wide temperature range from -55°C to 150°C, the PDTA124XQBZ transistor is suitable for controlling integrated circuit inputs and switching loads in various digital applications. The side-wettable flanks of the package facilitate automatic optical inspection (AOI) of solder joints, supporting high-volume manufacturing processes.

It serves as a cost-effective alternative to the BC857 transistor series, enabling designs that benefit from integrated resistors for streamlined functionality. Its compact size and high performance make it ideal for use in industrial electronics, automotive controls, and other manufacturing sectors requiring efficient bipolar transistors.

Supports a maximum collector current of 100 mA for versatile load handling. Maintains performance at voltages up to 50 V collector-emitter. Bearing AEC-Q101 automotive certification for rigorous quality assurance. Low-profile DFN1110D-3 package compatible with surface mount technology.

Enhanced manufacturing efficiency with built-in resistors and side-wettable flanks. Explore the extensive selection of Bipolar Transistors at EnvMart for industrial, automotive, and digital circuit solutions.
