| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PDTA124EQCZ |
| Mount Type | Surface |
| Series | PDTA124E |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1412D-3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | -50V |
| Transistor Polarity | PNP |
| Maximum Emitter Base Voltage VEBO | -10V |
| Automotive Standard | AEC-Q101 |
| Maximum DC Collector Current Idc | -100mA |
| Transistor Configuration | PNP |

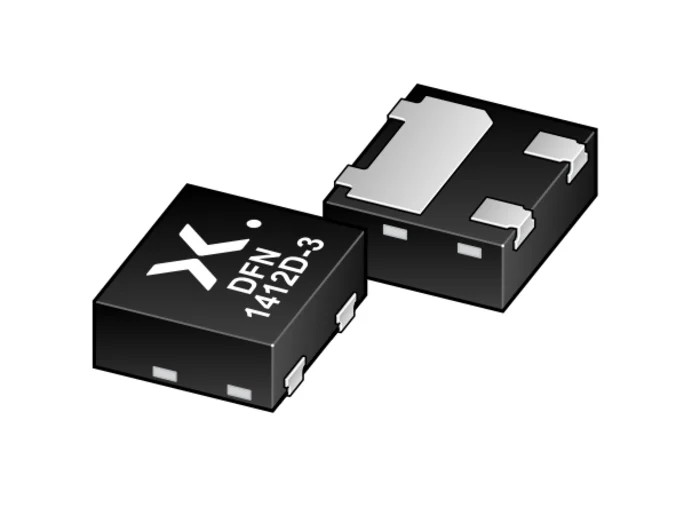

Nexperia PDTA124EQCZ resistor-equipped transistor is a PNP configuration device designed for surface mount applications. It provides a maximum DC collector current of -100 mA and a collector emitter voltage rating of -50 V. Encapsulated in an ultra small 3-pin DFN1412D-3 plastic package with side-wettable flanks, it features built-in resistors which simplify circuit design and reduce the number of external components needed.
This transistor has a low package height of 0.5 mm, making it suitable for compact modern electronic designs and automated manufacturing processes including automatic optical inspection (AOI) of solder joints. It operates reliably in a temperature range from -55°C up to 150°C, covering demanding industrial and automotive environments.
The device is RoHS compliant and meets the AEC-Q101 automotive standard, ensuring quality and reliability for automotive and other high-reliability applications. It acts as a cost-saving alternative to the BC857 series in digital electronics, especially useful for controlling integrated circuit inputs and switching various loads.
Ultra small 3-pin DFN1412D-3 plastic package with side-wettable flanks. Built-in resistors reduce external component count and circuit complexity. Low height package of 0.5 mm suitable for surface mount technology. Supports automated optical inspection for solder joint quality.
Wide operating temperature from -55°C to 150°C. Compliant with RoHS and automotive AEC-Q101 standards. Cost-effective alternative for BC857 series transistors in digital circuits. Designed for controlling IC inputs and switching loads.
This resistor-equipped transistor is widely used in industrial, automotive, communication, and consumer electronics sectors. Its compact size and integrated resistors help reduce PCB space and manufacturing costs. Environmentally compliant, it fits the growing demand for reliable, efficient, and miniaturized semiconductor components. Browse additional Bipolar Transistors and discrete semiconductor components on EnvMart for complementary solutions.
