| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PDTA114EQC-QZ |
| Mount Type | Surface |
| Series | PDTA114E |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1412D-3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | -50V |
| Transistor Polarity | PNP |
| Maximum Emitter Base Voltage VEBO | -10V |
| Automotive Standard | AEC-Q101 |
| Maximum DC Collector Current Idc | -100mA |
| Transistor Configuration | PNP |

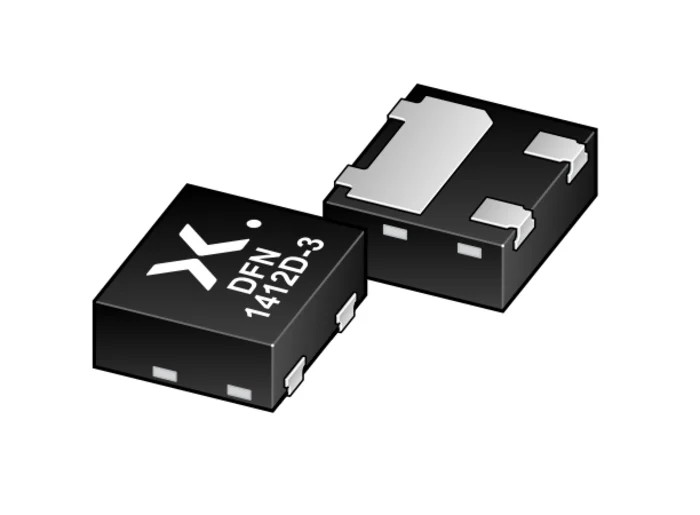

Nexperia PDTA114EQC-QZ resistor-equipped PNP transistor is engineered for compact, efficient digital and automotive electronic applications. It features a 3-pin DFN1412D-3 leadless surface mount package with a low profile of 0.5 mm, facilitating dense PCB layouts and automated optical inspection.
Designed with integrated resistors, this transistor simplifies circuit design and reduces the number of external components, lowering manufacturing costs and enhancing reliability. It supports a maximum DC collector current of 100 mA and a collector emitter voltage of 50 V, suitable for moderate power switching tasks.
Its extended operating temperature range from -55°C to 150°C enables use in harsh environments common in automotive and industrial sectors. The device meets stringent RoHS environmental standards and the automotive-grade AEC-Q101 certification, ensuring durability and compliance.
Typical applications include controlling IC inputs, switching loads, and acting as a cost-effective alternative to the BC857 transistor series in advanced digital circuits.
The plastic package with side-wettable flanks enhances solder joint quality and supports reliable automated inspection processes. Its small footprint and smart design are excellent for high-density PCB integration.
Features a maximum DC collector current of 100 mA. Collector emitter voltage rating up to 50 V ensures stable operation. Integrated resistors reduce component count and simplify designs. Compact low-profile DFN1412D-3 package enables dense PCB layouts.
Wide operating temperature range from -55°C to 150°C for harsh environments. Complies with RoHS and automotive AEC-Q101 standards. Plastic package with side-wettable flanks for enhanced solder joint quality. Suitable for digital, automotive, and industrial electronic applications.
