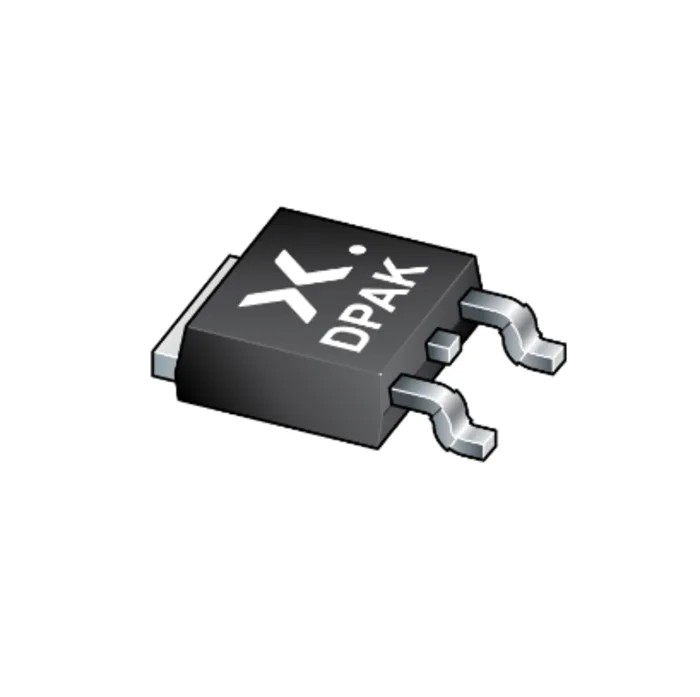

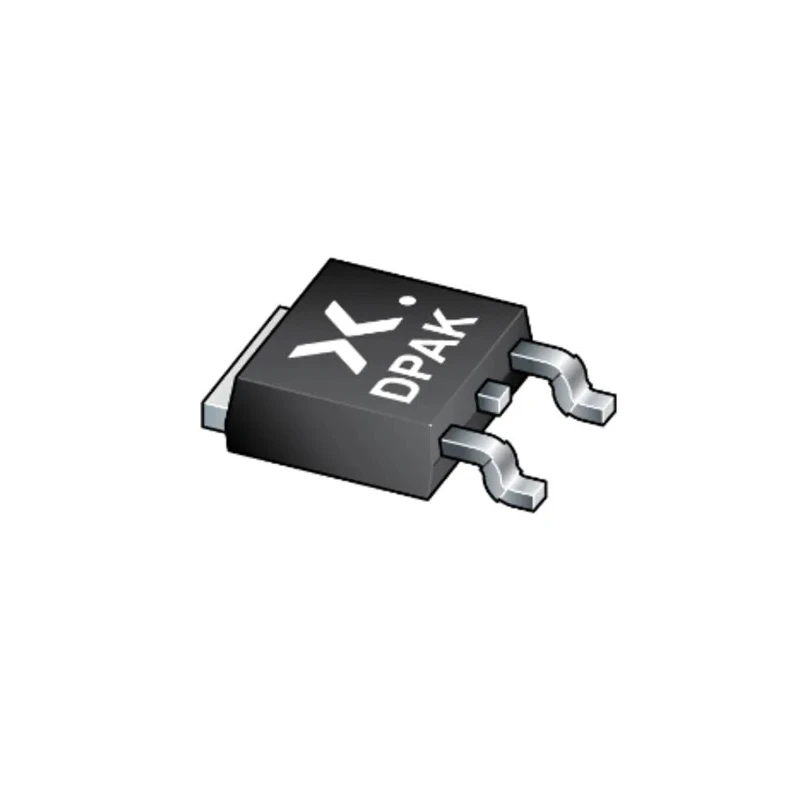

Nexperia High Power NPN Transistor 4 A 45 V 3-Pin DPAK Surface Mount TO-252 Package MJD148J

Nexperia MJD148J is a high performance NPN bipolar transistor designed for power applications. This transistor is housed in a compact 3-pin DPAK (TO-252) surface mount package that supports efficient mounting to printed circuit boards. It features a maximum DC collector current capacity of 4 A and collector-emitter voltage rating of 45 V, making it suitable for various industrial and automotive electronic circuits.

The device excels with a maximum power dissipation of 15 W, which allows it to handle substantial load currents while maintaining thermal stability. Its low collector-emitter saturation voltage reduces power losses, contributing to overall system efficiency. The transistor operates reliably over a wide temperature range from -55°C to 150°C, enabling use in harsh environments.

Designed for fast switching, the MJD148J supports a maximum transition frequency of 3 MHz, suitable for switching regulators, motor drives, and other power control applications. The minimum DC current gain (hFE) of 30 ensures consistent amplification. It is compliant with the AEC-Q101 automotive standard, assuring high quality and reliability in automotive electronics.

These features make the MJD148J ideal for industrial, automotive, and consumer electronic applications where high power and efficiency are required. Its surface mount TO-252 package supports compact design and easy assembly on PCBs.

Additional attributes include emitter-base voltage tolerance of 6 V and a 3-pin configuration that optimizes footprint and electrical connectivity. This transistor is commonly used in power amplifiers, switching circuits, and various control devices.

High thermal power dissipation capability of 15 W for efficient heat management. Low collector-emitter saturation voltage ensuring energy efficiency. Fast switching speeds suitable for power applications. Wide operating temperature range from -55°C to 150°C.

Package designed for surface mounting with 3 pins in DPAK (TO-252) format. Minimum DC current gain of 30 for reliable amplification performance. Emitter-base voltage rating up to 6 V for stable operation. Maximum transition frequency of 3 MHz supporting moderate-speed switching.

Complies with AEC-Q101 automotive standard for quality assurance. EnvMart offers this Nexperia transistor suitable for semiconductor component needs in industrial electronics, automotive control systems, and power management circuits.
