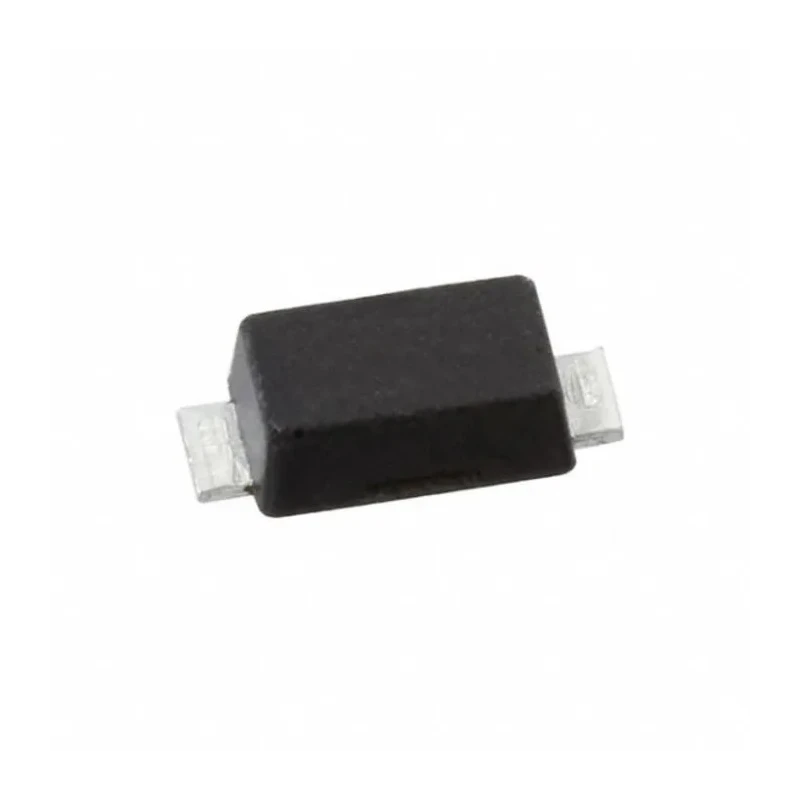

STMicroelectronics 200 V 1 A Rectifier & Schottky Diode Surface Mount SOD-123FL STTH1R02ZFY
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | STTH1R02ZFY |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-123FL |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Peak Non-Repetitive Forward Surge Current Ifsm | 25A |
| Maximum Forward Voltage Vf | 1V |
Key Features
- This diode features ultrafast recovery for energy recovery applications in automotive environments.
- The SOD-123FL package helps save space on PCBs with a flat design.
- It is suitable for reverse battery protection in automotive applications.
- The device supports a wide operating temperature range from -40°C to 175°C.
- The diode has low conduction losses and negligible switching losses.
- Maximum forward voltage is 1 V with a peak non-repetitive forward surge current of 25 A.
- RoHS compliant and ECOPACK2 certified for environmental protection.
- Designed to withstand high junction temperatures and harsh automotive conditions.
Product Description
STMicroelectronics STTH1R02ZFY Rectifier & Schottky Diode in a SOD-123FL surface mount package rated for 200 V and 1 A maximum continuous forward current. The diode is engineered for ultrafast recovery, making it ideal for automotive energy recovery and reverse battery protection functions. It features very low conduction and switching losses, contributing to efficient operation in demanding electronic circuits.
Its package design optimizes space-saving on printed circuit boards (PCBs), facilitating compact assemblies. The dependable performance across a temperature range of -40°C to 175°C supports deployment in harsh environments, particularly automotive systems.
This component is RoHS compliant and aligns with ECOPACK2 standards, supporting environmentally responsible electronics design. The device’s AEC-Q101 qualification certifies it for automotive applications, ensuring durability and quality.
Key electrical characteristics include a maximum forward voltage of 1 V and a peak non-repetitive forward surge current of 25 A, providing robustness against current spikes. This diode delivers high junction temperature tolerance and negligible switching losses for long operational life.
This diode offers ultrafast recovery performance suitable for energy recovery in automotive electronics. Designed for space-saving with a flat SOD-123FL surface mount package. Ideal for reverse battery protection in automotive applications.
Wide operating temperature range from -40°C to 175°C. Low conduction and switching losses improve overall efficiency. Maximum forward voltage of 1 V supports stable circuit operation. Peak forward surge current rating of 25 A enhances protection against transient currents.
RoHS and ECOPACK2 compliant for environmentally friendly manufacturing. AEC-Q101 qualified for assured automotive-grade reliability.
Used extensively in industrial, automotive, and electronic circuit designs requiring reliable rectification and low-loss switching, this diode is a critical component for energy recovery and reverse polarity protection.
Explore additional power semiconductor components and reliable diodes in the Semiconductor category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the STMicroelectronics STTH1R02ZFY is 1 A.
This model has a peak reverse repetitive voltage rating of 200 V.
The maximum forward voltage of this diode is 1 V.
The peak non-repetitive forward surge current rating is 25 A.
The operating temperature range is from -40°C to 175°C.
The diode is packaged in a SOD-123FL surface mount type, which is designed for space-saving on PCBs.
Yes, the STTH1R02ZFY is RoHS compliant, ensuring it meets environmental standards.
It is suitable for energy recovery applications in automotive environments and for reverse battery protection.
This model is compliant with RoHS and is ECOPACK2 certified for environmental protection.
Key features include ultrafast recovery, low conduction and switching losses, and high junction temperature tolerance.
The country of origin for this diode is India.
AEC-Q101 qualification certifies this diode for automotive applications, ensuring reliability and durability under harsh conditions.
