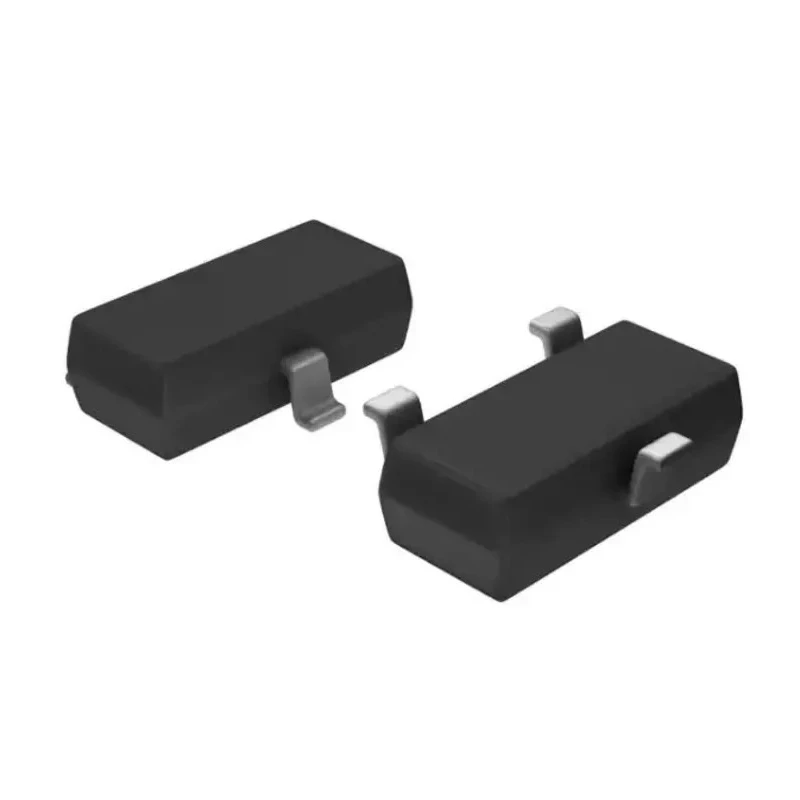

STMicroelectronics 40 V 300 mA Schottky Barrier Schottky Diode SOT-23 BAT54FILMY

STMicroelectronics BAT54FILMY Schottky Diode SOT-23 is a high-performance diode intended for automotive and general surface mount applications, providing reliable and efficient switching at voltages up to 40 V and a continuous forward current rating of 300 mA.

This Schottky barrier diode is AEC-Q101 qualified, meeting stringent automotive standards for quality and durability. Its low conduction and reverse losses reduce power dissipation, making it suitable for energy-efficient electronic circuits.

Featuring extremely fast switching and negligible recovery times, this diode ensures minimal switching losses, ideal for high-speed switching and rectification tasks. Its low forward voltage drop of 900 mV contributes to reduced energy loss in operation.

The device is housed in a compact SOT-23 surface mount package, enabling space-saving PCB designs in automotive, industrial, communication, and consumer electronics sectors.

The BAT54FILMY operates within a temperature range of -40°C to 150°C, supporting robust performance in harsh environmental conditions. It is compliant with RoHS regulations and ECOPACK2 standards, ensuring environmental safety and sustainability.

Additional features include a peak non-repetitive forward surge current of 1 A and low capacitance characteristics, enhancing performance in high-frequency applications.

This diode is PPAP capable, facilitating automotive production quality assurance processes. It is widely used in automotive electronic modules, power supplies, and switching circuits requiring fast, reliable diode performance.

Designed for automotive small signal applications with AEC-Q101 qualification. Low conduction and reverse losses for efficient performance. Negligible switching losses with extremely fast switching capability. Surface mount package type SOT-23 for compact PCB design.

Operates in a wide temperature range from -40°C to 150°C. Compliant with RoHS and ECOPACK2 environmental standards. Low forward voltage drop of 900 mV ensuring energy efficiency. Capable of handling a peak non-repetitive forward surge current of 1 A.

Low capacitance diode suitable for high-frequency applications. PPAP capable for automotive industry production processes. Explore more electronic components, semiconductors, and Schottky Diodes at EnvMart.
