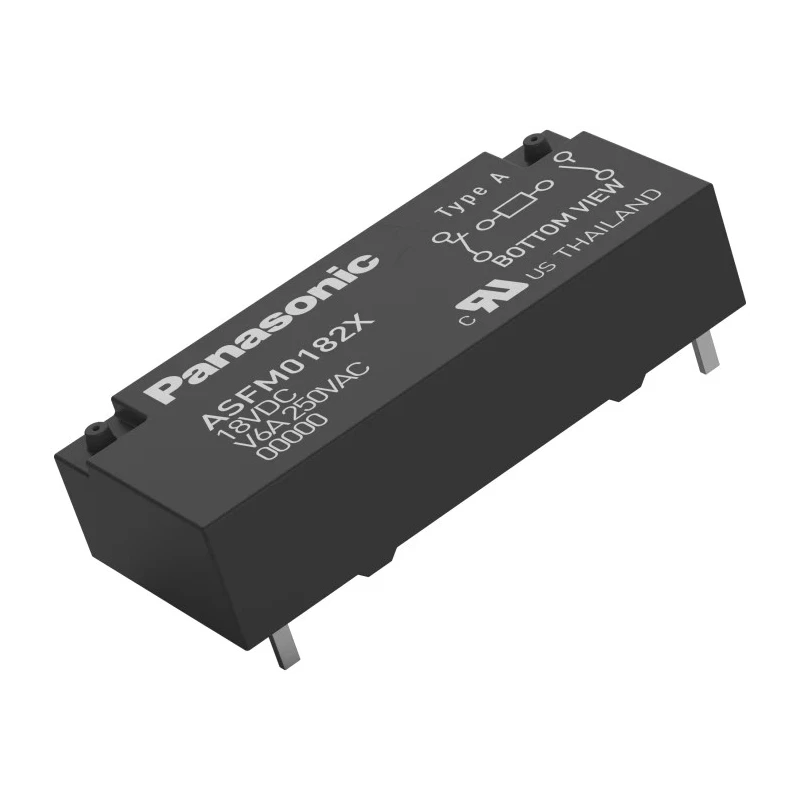

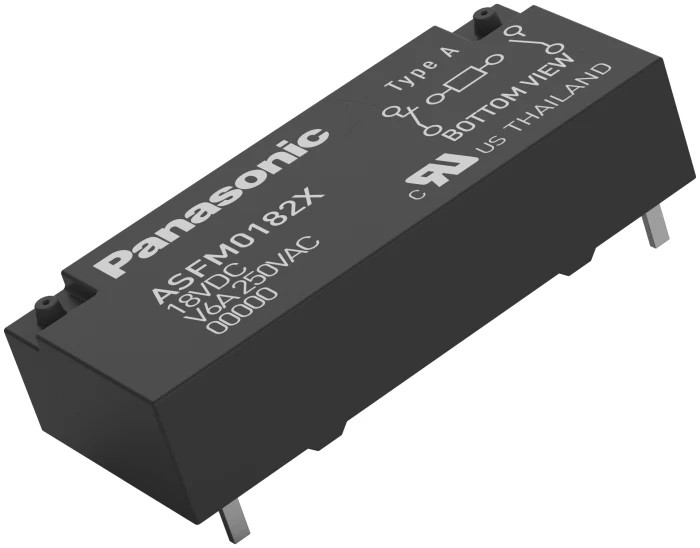

Panasonic SFM 18V dc Safety Relay PCB Mount, Contact Current 6A, Power Consumption 270mW ASFM0185S

Panasonic ASFM0185S is a precision flat-type safety relay designed for use with an 18V dc coil voltage, optimized for applications requiring reliable safety switching. It is primarily utilized in safety relay units, programmable logic controllers (PLC), robots, and machine tools where precise and dependable control is necessary.

This relay features a PCB mount type with solder pin terminals for secure installation. It offers dual contact configurations of SPNC and SPNO to accommodate various switching requirements. The compact dimensions of 15.5mm length, 33mm width, and 13.9mm height allow integration into space-constrained industrial environments.

With a coil power consumption of only 270mW, the relay ensures efficient energy use while providing a contact current rating of 6A supporting both DC switching voltage up to 125V and AC switching voltage up to 250V. The relay operates reliably within a wide temperature range from -40°C to a maximum of 85°C, suitable for harsh industrial conditions.

Compliance with RoHS standards guarantees the eco-friendly design of the relay, preventing hazardous substances in its construction. The device's sealed design provides additional protection against environmental factors, enhancing reliability and longevity in demanding applications.

Common industrial and automation use cases include incorporation into safety relay systems, manufacturing process equipment, robotics, and other automated machinery where safety and precision switching are critical.

Operates reliably within a temperature range of -40°C to 85°C. Supports switching voltages up to 125V dc and 250V ac for versatile electrical control. Features compact dimensions and low coil power consumption of 270mW. Equipped with solder pin terminals for secure PCB mounting.

RoHS compliant ensuring environmental safety. Sealed construction for durability in industrial environments. Rated contact current of 6A for reliable switching performance.
