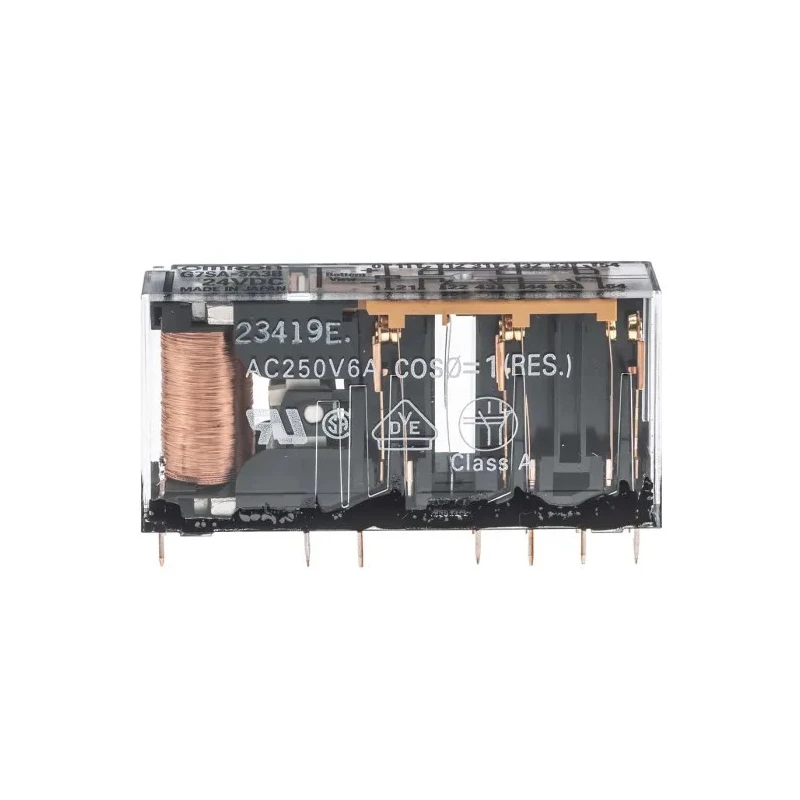

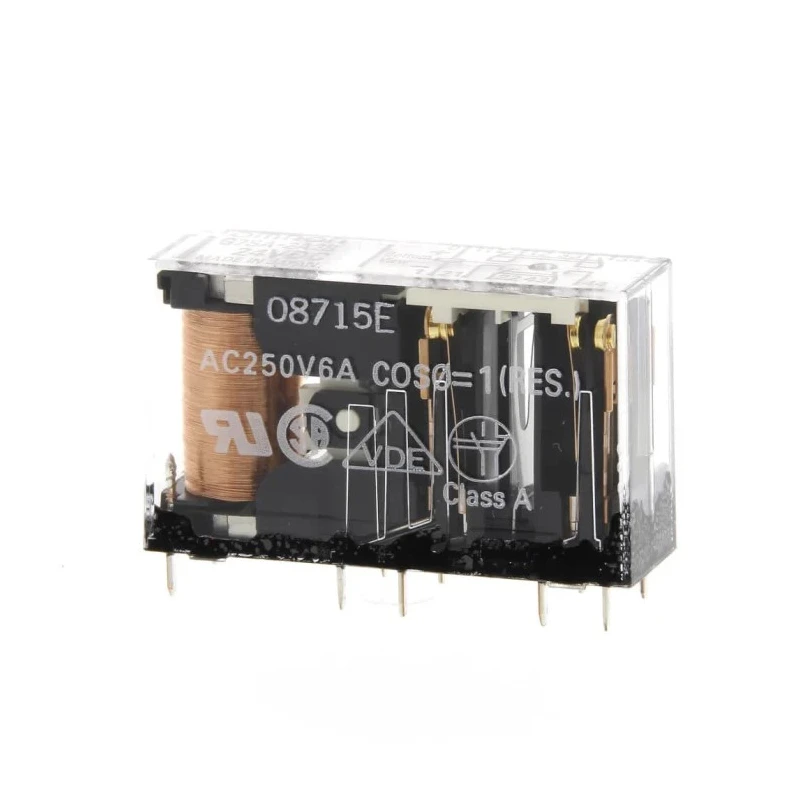

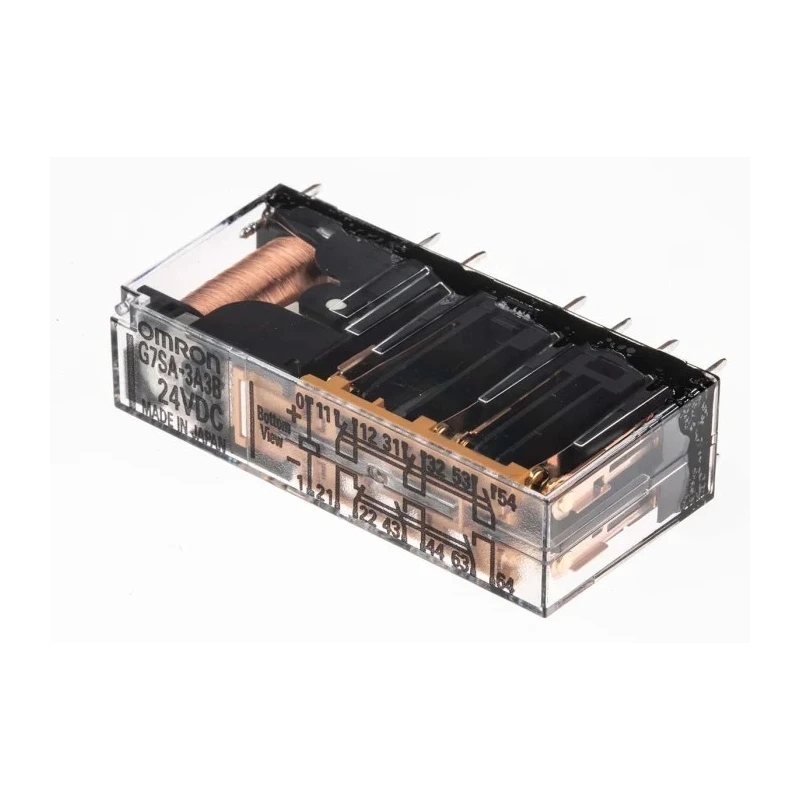

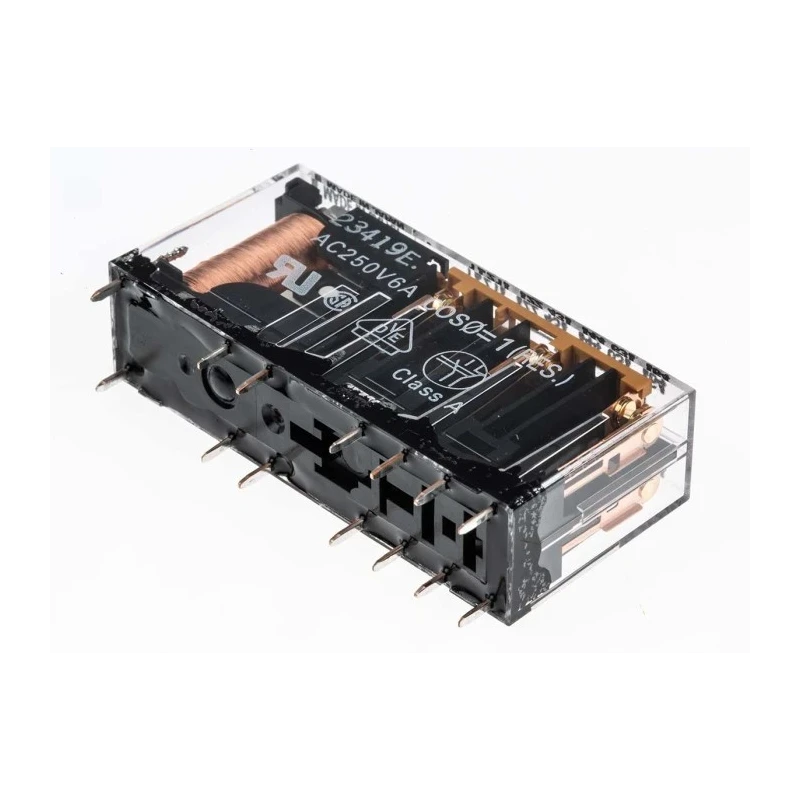

Omron PCB Force Guided Relay, 24V DC Coil Voltage, 6-Pole, 3PDT G7SA-3A3B 24VDC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 24mm |
| Length | 50mm |
| Model | G7SA-3A3B 24VDC |
| Depth | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G7S |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | 3PDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Number of Poles | 6 |
| Coil Resistance | 1.152kΩ |
| Coil Power | 800mW |
| Finder 50, 24V Safety Relay, 6 Safety Contacts, 6Brand | Finder |
| Omron G7SA, 12V Safety RelayBrand | Omron |
Key Features
- Features reinforced insulation between input and output poles for enhanced safety.
- Capable of handling 36,000 operations per hour for high reliability.
- Mechanical durability rated for 10 million cycles ensuring long service life.
- Built to withstand shock and vibration for use in harsh environments.
- Operates efficiently with an operating time of 20ms and a response time of 10ms.
- Ideal for use in safety and interlock systems including emergency shutdowns.
- Compact PCB mount design measuring 50mm length, 24mm height, and 13mm depth.
- Silver alloy contact material ensures corrosion resistance and conductivity.
Product Description
Omron G7SA-3A3B 24VDC PCB Force Guided Relay is a specialized industrial relay featuring a 24V DC coil voltage and a 6-pole, 3PDT contact configuration designed to provide reliable and safe switching mechanisms on printed circuit boards.
This relay incorporates force-guided contacts which synchronize contact movements to prevent hazardous states arising from partial contact openings or closings, making it ideal for critical safety applications such as interlock switches, emergency shutdown systems, and light curtains.
The relay exhibits reinforced insulation between input and output poles, greatly reducing electrical hazards. It is capable of handling a carry current rating of 6A with high mechanical durability, rated at 10 million cycles, and resists shock and vibration, demonstrating resilience in demanding industrial environments.
Its fast operating time of 20 milliseconds and a quick response time of 10 milliseconds facilitate rapid switching actions critical for safety and automation control systems. The compact dimensions (50mm length, 24mm height, and 13mm depth) make it suitable for PCB mounting in space-constrained industrial control panels and equipment.
The contacts are made of silver alloy to ensure excellent conductivity and resistance to corrosion, enhancing longevity and reliability of the relay. Typical applications include the oil and gas industry, medical devices, and railway infrastructure where fail-safe and rapid switching are paramount.
Reinforced insulation between input and output poles enhances operator safety. Reliable switching performance with 36,000 operations per hour capability. Mechanical lifecycle rated for 10 million cycles for extended use.
Robust design withstands shock and vibration in industrial environments. Fast response and release times enable safety-critical automatic operation. Compact PCB mount form factor for integration into control systems. Silver alloy contacts provide durability and corrosion resistance.
Suited for applications in oil and gas, medical equipment, and railway systems. Explore the range of Omron relays in EnvMart's Electronics & Electricals category for reliable automation and safety solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this model is 24V DC.
It features a 6-pole, 3PDT contact configuration.
The maximum operating temperature is 85°C.
It is rated for 10 million mechanical cycles, ensuring a long service life.
This model has dimensions of 50mm in length, 24mm in height, and 13mm in depth.
It is designed for PCB mounting.
The response time is 10 milliseconds, allowing for rapid switching actions.
It can handle a carry current rating of 6A.
The contacts are made of silver alloy, which provides corrosion resistance and conductivity.
The minimum operating temperature is -40°C.
The operating time is 20 milliseconds, facilitating efficient operation.
It is commonly used in safety applications like interlock switches and emergency shutdown systems, particularly in industries such as oil and gas, medical devices, and railway infrastructure.
