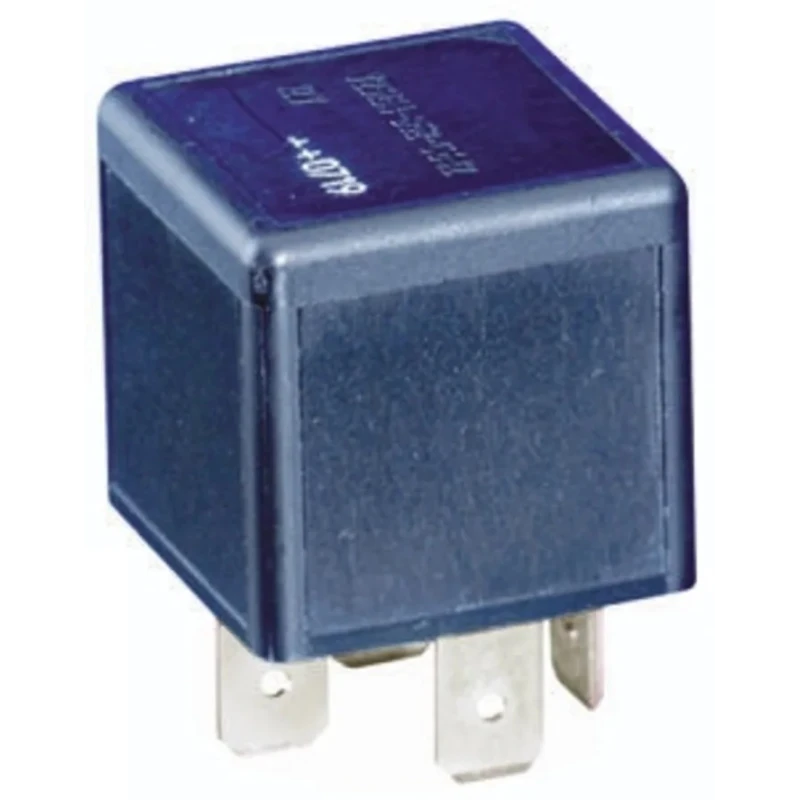

TE Connectivity Automotive Relay Mini ISO F4 Series, 24V DC Coil, 60A Switching Current, SPDT, Plug-In Terminal 1-1414167-0
Specifications
| Country of Origin | Portugal |
|---|---|
| Brand | TE Connectivity |
| Height | 24.9mm |
| Length | 25.9mm |
| Depth | 25.9mm |
| Contact Material | Silver |
| Series | F4 |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Plug-In |
| Number of Poles | 1 |
| Coil Resistance | 268Ω |
| Coil Power | 2.1W |
| Isolation Coil To Contact | 500Vrms |
Key Features
- Compact Mini ISO F4 series relay with plug-in terminals ensures easy installation.
- Silver contact material enhances conductivity and durability.
- Coil power consumption is 2.1W with coil resistance of 268 ohms.
- Operating temperature range spans from -40°C to 125°C for versatility.
- Isolation coil to contact voltage is rated at 500 Vrms, ensuring safety.
- Single pole double throw (SPDT) contact configuration provides flexible circuit control.
- Applications include ignition lock systems, lamp load control, ABS, fuel pumps, and electric power steering.
- Manufactured in Portugal, meeting high-quality automotive standards.
Product Description
TE Connectivity 1-1414167-0 automotive relay Mini ISO F4 Series is designed for automotive use with a 24V DC coil voltage and 60A switching current. This robust relay supports various automotive applications including ignition lock, headlamp load control, exhaust emission control, ABS, fuel pumps, electric power steering, wiper control, car alarms, and blower fans.
The relay features a non-latching single pole double throw (SPDT) contact configuration, constructed with durable silver contact material ensuring reliable electrical performance. Its compact size of 25.9 mm length, 24.9 mm height, and 25.9 mm depth allows space-saving installation with plug-in terminals. The coil consumes a power of 2.1W and has a coil resistance of 268 ohms.
Operating temperature ranges from -40°C to 125°C, making it suitable for harsh automotive environments. Isolation between coil and contacts is rated at 500 Vrms providing enhanced safety. The Mini ISO F4 series relay is protected against dust (IP54), ensuring longevity in tough conditions.
Manufactured in Portugal, this high-quality TE Connectivity relay meets stringent automotive reliability standards. It benefits automotive system designers seeking dependable relay solutions for critical vehicle functions.
Compact Mini ISO F4 series with plug-in terminals for easy integration. Silver contact material for superior conductivity and lifespan. Non-latching SPDT contact configuration for flexible signal switching. Wide operating temperature range suitable for automotive conditions.
Coil power of 2.1W with 268Ω coil resistance. 500 Vrms isolation voltage ensures safe operation. Applications include multiple automotive control systems and safety features. Dust-protected housing for enhanced durability.
Made in Portugal reflecting premium manufacturing standards.
Explore EnvMart's range of Automotive Relays for reliable electrical system components and advanced vehicle control solutions. Discover premium TE Connectivity products engineered for performance and durability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay has a switching current capacity of 60A, making it suitable for various automotive applications.
The coil voltage for this automotive relay is 24V DC.
It features a single pole double throw (SPDT) contact configuration, allowing flexible circuit control.
The relay has dimensions of 25.9 mm in length, 24.9 mm in height, and 25.9 mm in depth.
The operating temperature range for this relay spans from -40°C to 125°C, suitable for harsh automotive environments.
The coil resistance of this relay is 268 ohms.
The coil power consumption is 2.1W.
The isolation voltage between the coil and contacts is rated at 500 Vrms, ensuring safe operation.
The contacts are made of silver, which enhances conductivity and durability.
This relay uses plug-in terminals for easy installation.
This relay is manufactured in Portugal, reflecting high manufacturing standards.
This relay is suitable for various automotive applications including ignition lock systems, lamp load control, ABS, fuel pumps, and electric power steering.
