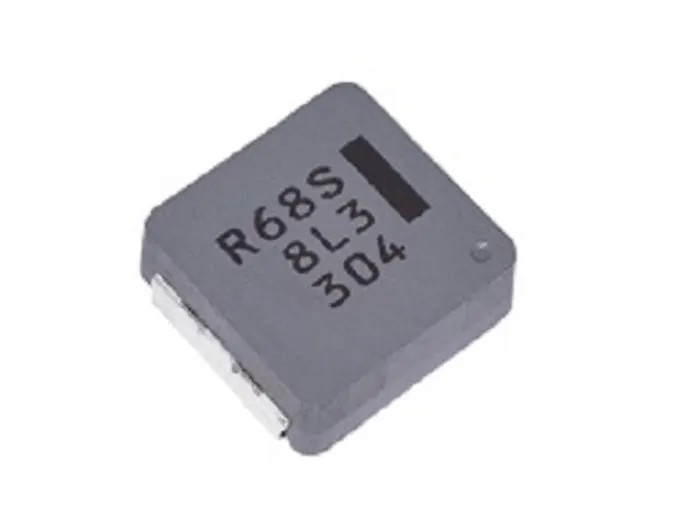

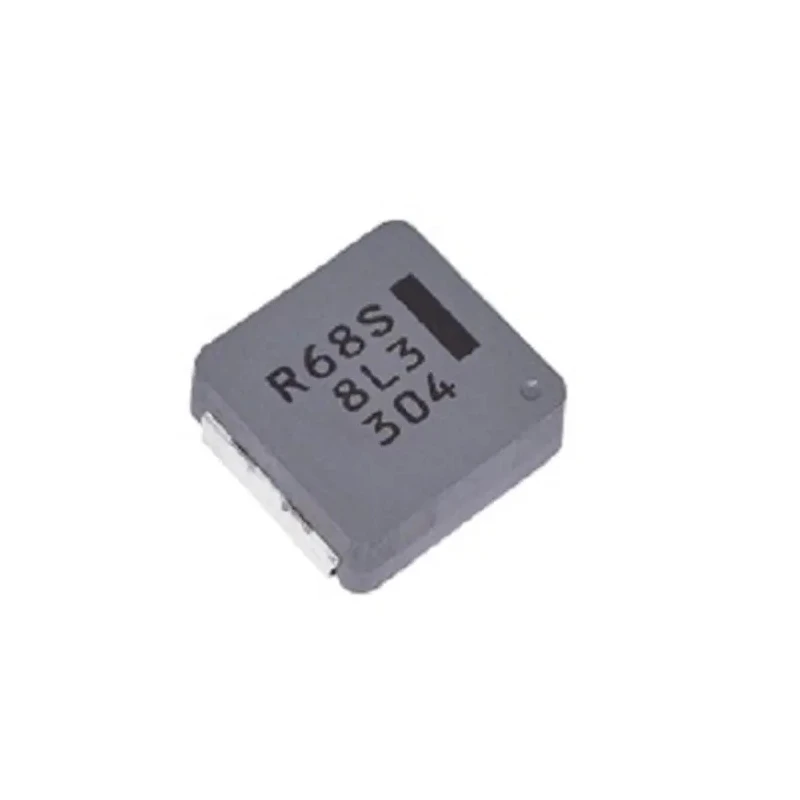

Panasonic Shielded Wirewound Surface Mount Inductor with Metal Composite Core 680nH ±20% 32.3A Idc ETQP5M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 5mm |
| Length | 10.9mm |
| Model | ETQP5M |
| Depth | 10mm |
| Packaging | Tape & Reel |
| Series | ETQP5M |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 680nH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 32.3A |
| Pin Count | 2 |
| Maximum DC Resistance | 1.83mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with metal composite core for high heat resistance and reliability.
- Capable of operation up to 150°C including self heating effects.
- Features shielded construction to minimize electromagnetic interference.
- Complies with automotive standard AEC-Q200 for quality and durability.
- Low inductance tolerance at ±20% ensures stable performance.
- Wirewound construction offers excellent inductance stability with ferrous alloy magnetic material.
- Surface mount package with tape and reel packaging for automated assembly.
- High vibration resistance due to newly developed integral construction.
Product Description
Panasonic ETQP5M is a shielded wirewound surface mount inductor featuring a metal composite core with an inductance of 680nH and a tolerance of ±20%. It supports a maximum DC current of 32.3A and operates reliably up to 150°C, including self heat effects. The design includes a shielded construction that minimizes electromagnetic interference, making it suitable for critical electronics applications.
This inductor uses a ferrous alloy magnetic material that provides excellent inductance stability and is moulded with a metal composite core to ensure high heat and vibration resistance. It meets the AEC-Q200 automotive standard, ensuring durability and reliability under demanding conditions.
The surface mount style package with tape and reel packaging facilitates automated PCB assembly lines. With a pin count of 2 and termination style designed for surface mount technology, it is ideal for compact and efficient circuit board designs. It features a maximum DC resistance of only 1.83 milliohms, supporting high current applications efficiently.
Panasonic ETQP5M inductors are used extensively as noise filters in various drive circuits, especially those requiring high temperature operation and peak current handling capabilities. The component’s low audible noise and temperature stability enhance performance in industrial, automotive, and electronic manufacturing environments.
Constructed with high-quality metal composite core for heat resistance and reliability. Shielded design reduces EMI for cleaner signal processing. Compliant with automotive AEC-Q200 standards ensuring quality. High maximum DC current of 32.3A suitable for demanding applications.
Compact 10.9mm length and 5mm height suitable for space-constrained PCBs. Wirewound inductor construction ensures stable inductance and low resistance. Tape and reel packaging supports efficient surface mount manufacturing.
Operates reliably at temperatures up to 150°C. Ideal for industrial, automotive, and electronic applications requiring noise filters. Explore the Electronics Components category at EnvMart for advanced Surface Mount Inductors and other passive components to enhance your electronic designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ETQP5M inductor has an inductance value of 680nH with a tolerance of ±20%.
This model supports a maximum DC current of 32.3A.
The ETQP5M operates reliably at temperatures up to 150°C, including self-heating effects.
It features a metal composite core, which provides high heat resistance and reliability.
The dimensions of the inductor are 10.9mm in length, 10mm in depth, and 5mm in height.
The ETQP5M has a surface mount termination style, suitable for automated assembly.
Yes, it complies with the AEC-Q200 automotive standard, ensuring quality and durability.
It is packaged in tape and reel format, facilitating efficient surface mount manufacturing.
The maximum DC resistance is 1.83 milliohms, supporting efficient high current applications.
This inductor utilizes a wirewound construction, which ensures stable inductance and low resistance.
The maximum self-resonant frequency for the ETQP5M is 100kHz.
It is extensively used as a noise filter in various drive circuits, particularly in industrial and automotive applications requiring high temperature operation.
