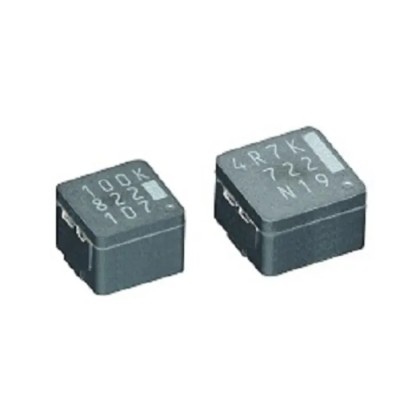

Panasonic Shielded Wirewound Surface Mount Inductor with Metal Composite Core 3.3 μH ±20% 8.2 A Idc ETQP4M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 4.5mm |
| Length | 6.5mm |
| Model | ETQP4M |
| Depth | 6mm |
| Packaging | Tape & Reel |
| Series | ETQP4M |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 3.3μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 8.2A |
| Pin Count | 2 |
| Maximum DC Resistance | 17.71mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Equipped with a metal composite core for enhanced performance.
- Shielded construction reduces electromagnetic interference.
- Surface mount package suitable for automated PCB assembly.
- Complies with AEC-Q200 automotive standard ensuring high reliability.
- Operates reliably between -40°C and 150°C temperature range.
- Features a maximum DC resistance of 17.71 mΩ for efficient operation.
- Designed with wirewound construction for mechanical robustness.
- Available in tape and reel packaging facilitating production efficiency.
Product Description
Panasonic ETQP4M Shielded Wirewound Surface Mount Inductor integrates a metal composite core to provide high heat resistance and operational stability in industrial electronic applications. This inductor features a 3.3 μH inductance with ±20% tolerance and supports a maximum DC current of 8.2 A, making it ideal for high current circuits.
The shielded construction significantly reduces electromagnetic interference, ensuring noise filtering for sensitive drive circuitry requiring high temperature operation and peak current handling capability. Its wirewound design enhances mechanical strength and durability. The product complies with the rigorous AEC-Q200 automotive standard, underscoring its reliability in automotive and automotive-grade industrial environments.
Operating temperature ranges from -40°C to 150°C including self-generated heat. The low DC resistance of 17.71 mΩ ensures minimal power losses. Package dimensions include 6.5 mm length, 4.5 mm height, and 6 mm depth. This surface mount inductor is supplied in tape and reel packaging, supporting efficient automated placement during PCB assembly.
The moulded and RoHS compliant design guarantees environmental sustainability and long-lasting performance in demanding applications. It is suitable for industrial, automotive, HVAC, and manufacturing sectors requiring reliable inductive components.
Equipped with a metal composite core for enhanced performance. Shielded construction reduces electromagnetic interference. Surface mount package suitable for automated PCB assembly. Complies with AEC-Q200 automotive standard ensuring high reliability.
Operates reliably between -40°C and 150°C temperature range. Features a maximum DC resistance of 17.71 mΩ for efficient operation. Designed with wirewound construction for mechanical robustness. Available in tape and reel packaging facilitating production efficiency.
Compact dimensions: length 6.5 mm, height 4.5 mm, depth 6 mm. RoHS compliant and moulded design for durability. Explore a wide range of Surface Mount Inductors and electronic components on EnvMart to meet your project's technical and quality demands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 3.3 μH with a tolerance of ±20%.
It can support a maximum DC current of 8.2 A.
This inductor operates reliably between -40°C and 150°C.
It features a wirewound construction, which enhances its mechanical robustness.
The maximum DC resistance is 17.71 mΩ, ensuring efficient operation.
The dimensions are 6.5 mm in length, 4.5 mm in height, and 6 mm in depth.
It is supplied in tape and reel packaging, facilitating automated PCB assembly.
This model complies with the AEC-Q200 automotive standard, ensuring high reliability.
Yes, it is RoHS compliant, which guarantees environmental sustainability.
The core material is a metal composite, which enhances performance.
It is suitable for industrial, automotive, HVAC, and manufacturing sectors requiring reliable inductive components.
This inductor uses a surface mount termination style.
