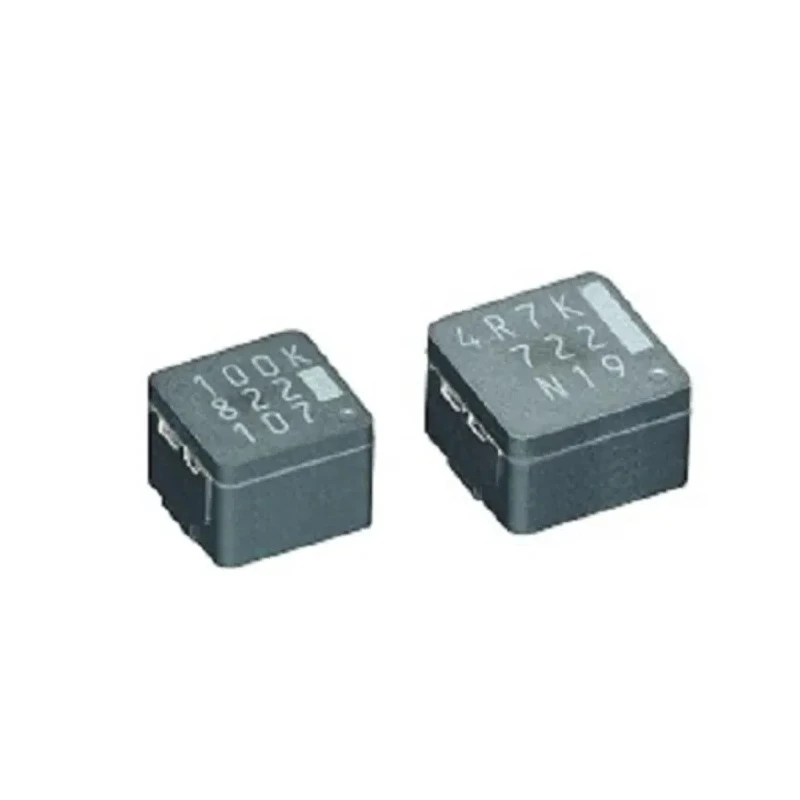

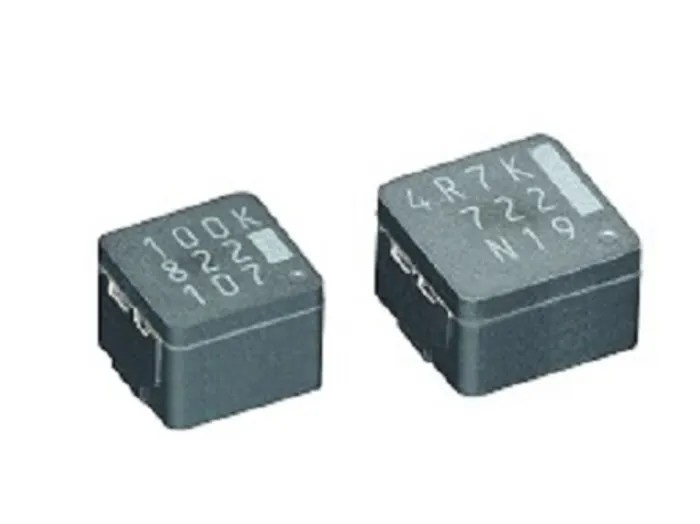

Panasonic Shielded Wirewound Surface Mount Inductor with Metal Composite Core 47 μH ±20% 2.9 A Idc ETQP4M

Panasonic ETQP4M shielded wirewound surface mount inductor features a metal composite core offering stable inductance of 47 μH with ±20% tolerance. It supports a maximum DC current of 2.9 A and operates reliably up to 150°C, making it ideal for industrial, automotive, and high-temperature electronic applications.

This inductor provides excellent high heat resistance and vibration stability due to its newly developed integral construction and moulded wirewound design. The metal composite core material ensures high inductance stability and low audible noise, enabling effective noise filtering in demanding environments.

Its compact surface mount package measures 7.4 mm in length, 4.8 mm in height, and 7 mm in depth, facilitating efficient PCB layout and automated assembly with tape and reel packaging.

The product complies with the automotive AEC-Q200 standard and RoHS directives, ensuring quality and environmental safety. High heat resistance with operation up to 150°C including self heat. Shielded construction reduces electromagnetic interference and noise.

Metal composite core ensures excellent inductance stability with ferrous alloy magnetic material. Compact dimensions: 7.4 mm length, 4.8 mm height, 7 mm depth for easy surface mounting. Automotive standard compliance with AEC-Q200 certification for reliable performance.

Maximum DC resistance of 163.46 mΩ minimizes power losses during operation. Moulded wirewound design for high vibration resistance and durability. Suitable for noise filtering in various drive circuitry requiring high temperature and peak current handling.

Available in tape and reel packaging for efficient automated assembly.

This Panasonic ETQP4M inductor is ideal for electronic component manufacturers, automotive electronics, power supplies, and industrial control circuits. Browse EnvMart’s extensive catalog for high-quality Surface Mount Inductors and related components.
