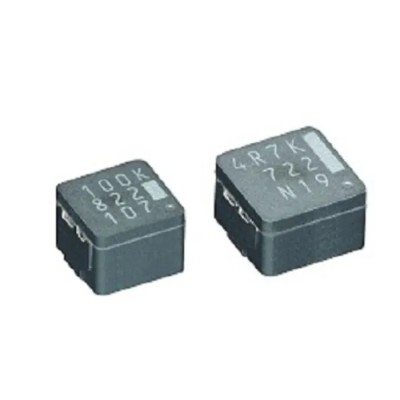

Panasonic Shielded Wirewound Surface Mount Inductor with Metal Composite Core 2.2 μH ±20% 10.2 A Idc ETQP4M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 4.5mm |
| Length | 6.5mm |
| Model | ETQP4M |
| Depth | 6mm |
| Packaging | Tape & Reel |
| Series | ETQP4M |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 2.2μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 10.2A |
| Pin Count | 2 |
| Maximum DC Resistance | 11.44mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- The inductor has a 2.2 μH inductance with ±20% tolerance.
- It supports a maximum DC current of 10.2 A for robust performance.
- Constructed with a metal composite core for high reliability and heat resistance.
- The device features surface mount packaging with a tape and reel format.
- Designed to operate at temperatures up to 150°C with low audible noise.
- Compatible with automotive applications meeting AEC-Q200 standard.
- Shielded construction reduces electromagnetic interference.
- Wirewound construction ensures stable electrical characteristics.
Product Description
Panasonic ETQP4M Shielded Wirewound Surface Mount Inductor with a Metal Composite Core, inductance of 2.2 μH ±20%, and a maximum DC current rating of 10.2 A is designed for demanding industrial and automotive applications. This wirewound inductor offers stable inductance with high bias current capacity and temperature tolerance up to 150°C, making it suitable for high temperature and high vibration environments.
The metal composite core enhances thermal stability and reliability. The shielded construction effectively reduces electromagnetic interference, maintaining signal integrity in power and signal circuits. The component is packaged in a surface mount tape and reel format for automated PCB assembly efficiency.
Its compact size of 6.5 mm length, 4.5 mm height, and 6 mm depth makes it ideal for use in space-constrained designs. This inductor provides low audible noise and is compliant with the automotive AEC-Q200 standard, allowing deployment in automotive electronic systems requiring durability and heat resistance.
Key benefits include high vibration resistance due to integral construction, excellent inductance stability from ferrous alloy magnetic materials, and operation up to 150°C including self-heating. These features make it a robust choice for industrial, automotive, HVAC, and electronic power circuit applications requiring noise filtering and high current handling.
The inductor has a 2.2 μH inductance with ±20% tolerance. Maximum DC current rating is 10.2 A. Metal composite core provides high thermal and mechanical stability. Surface mount termination style ensures reliable PCB mounting.
Meets RoHS standards for environmental compliance. Dimensions are 6.5 mm length, 4.5 mm height, and 6 mm depth. Shielded construction reduces electromagnetic interference. Packaging is tape and reel suited for automated production.
Automotive standard AEC-Q200 certification for high reliability. Wirewound construction offers stable inductance and low noise. Explore Panasonic inductors and related surface mount components on EnvMart for industrial, automotive, and electronic manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ETQP4M inductor has an inductance value of 2.2 μH with a tolerance of ±20%.
This model supports a maximum DC current of 10.2 A.
The dimensions of this inductor are 6.5 mm in length, 4.5 mm in height, and 6 mm in depth.
The maximum operating temperature for this inductor is 150°C.
It is constructed with a metal composite core, which provides high thermal and mechanical stability.
The inductor is packaged in a tape and reel format, suitable for automated PCB assembly.
Yes, it meets the AEC-Q200 automotive standard, ensuring high reliability for automotive applications.
This inductor features a wirewound construction, which ensures stable electrical characteristics.
The minimum operating temperature for the ETQP4M is -40°C.
The maximum DC resistance for this inductor is 11.44 mΩ.
The ETQP4M is compliant with RoHS standards for environmental compliance.
This inductor is suitable for industrial, automotive, HVAC, and electronic power circuit applications requiring noise filtering and high current handling.
