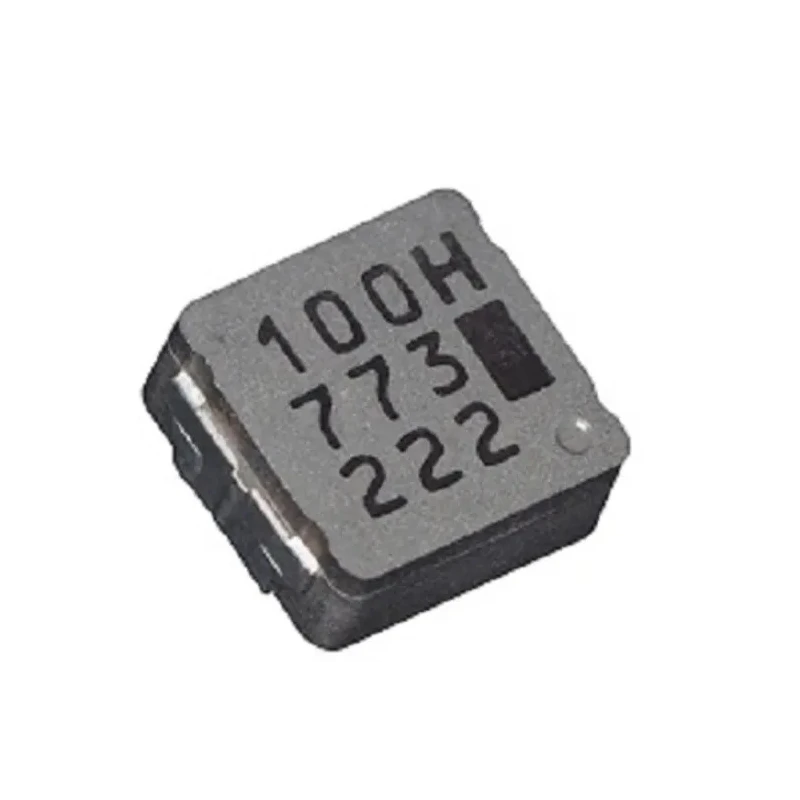

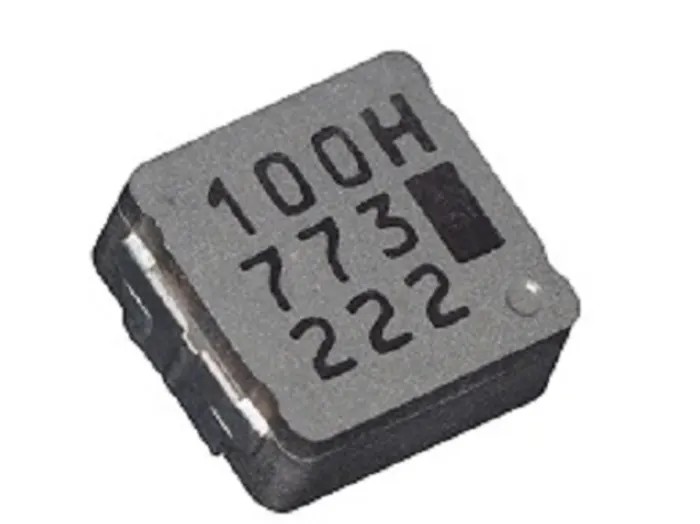

Panasonic Shielded Wirewound Surface Mount Inductor with Metal Composite Core 2.2 μH ±20 % 5.2 A Idc ETQP3M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 3mm |
| Length | 5.5mm |
| Model | ETQP3M |
| Depth | 5mm |
| Packaging | Tape & Reel |
| Series | ETQP3M |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 2.2μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 5.2A |
| Pin Count | 2 |
| Maximum DC Resistance | 21.45mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with a metal composite core providing high heat resistance and reliability.
- Designed with shielding to minimize electromagnetic interference.
- Supports high operating temperatures up to 150°C.
- Manufactured with wirewound construction for excellent inductance stability.
- Supplied in Tape & Reel packaging suitable for surface mount assembly.
- Complies with RoHS standards and meets AEC-Q200 automotive quality standards.
- Compact dimensions with 5.5 mm length, 5 mm depth, and 3 mm height.
- Has a maximum DC resistance of 21.45 mΩ ensuring efficiency in circuits.
Product Description
Panasonic ETQP3M shielded wirewound Surface Mount Inductor utilizes a metal composite core to deliver exceptional heat resistance, vibration resistance, and reliability. With an inductance of 2.2 μH and a tolerance of ±20 %, this inductor supports a maximum DC current of 5.2 A, making it suitable for demanding electronic applications.
Its shielded construction effectively minimizes electromagnetic interference, ensuring signal integrity in sensitive circuit designs. The wirewound construction combined with ferrous alloy magnetic material guarantees excellent inductance stability and low audible noise.
The component meets the AEC-Q200 automotive standard, qualifying it for automotive system applications that require robust performance under harsh conditions. It complies with RoHS environmental standards. The device operates reliably over a wide temperature range from -40°C to 150°C, including self-generated heat.
Compact with measurements of 5.5 mm length, 5 mm depth, and 3 mm height, the component comes with 2 pins and surface mount termination style for ease of integration on PCB assemblies. The maximum DC resistance of 21.45 mΩ contributes to efficient current handling and minimal power loss.
This inductor is ideal for noise filtering in electronic drive circuitry requiring high temperature operation, high bias current capacity, and reliable performance in industrial, automotive, and communication equipment.
Constructed with metal composite core for high heat resistance and reliability. Shielded design reduces electromagnetic interference in circuits. Supports operation up to 150°C including self-heating conditions. Wirewound construction ensures excellent inductance stability.
Meets automotive standard AEC-Q200 for robust applications. Compact surface mount package dimensions: 5.5 mm x 5 mm x 3 mm. Maximum DC current rating of 5.2 A for high bias current applications. Low maximum DC resistance of 21.45 mΩ reduces power loss.
Packaged in Tape & Reel for automated assembly processes. RoHS compliant for environmentally friendly manufacturing.
Explore the Electronics Components category at EnvMart for a wide range of inductors, including surface mount types suited for industrial, automotive, and electronic manufacturing sectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 2.2 μH with a tolerance of ±20%.
It supports a maximum DC current of 5.2 A, making it suitable for high bias current applications.
This unit has compact dimensions of 5.5 mm in length, 5 mm in depth, and 3 mm in height.
It features a wirewound construction, which ensures excellent inductance stability.
The inductor can operate at a maximum temperature of 150°C, including self-generated heat.
Yes, it complies with RoHS standards, ensuring environmentally friendly manufacturing.
It meets the AEC-Q200 automotive quality standards, qualifying it for robust applications in automotive systems.
It is supplied in Tape & Reel packaging, which is suitable for surface mount assembly processes.
The maximum DC resistance is 21.45 mΩ, contributing to efficient current handling.
The inductor can operate at a minimum temperature of -40°C, making it suitable for a wide range of applications.
This model features 2 pins, designed for surface mount termination style.
It utilizes a metal composite core, which provides high heat resistance and reliability.
