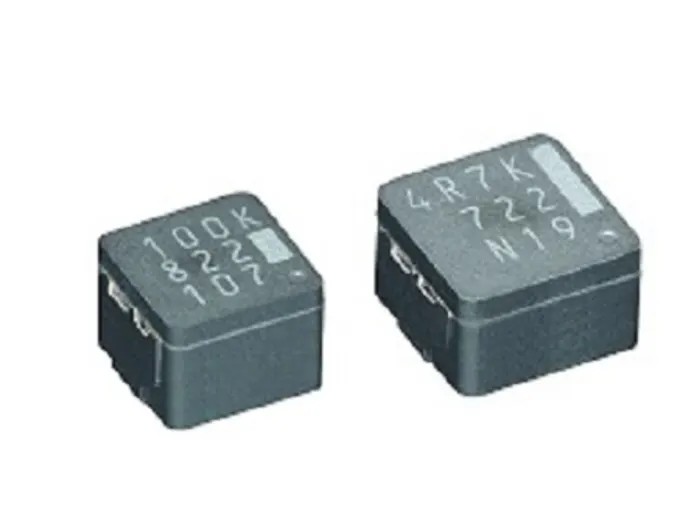

Panasonic Shielded Wirewound Surface Mount Inductor with Metal Composite Core, 10 μH ±20 % 6 A Idc ETQP4M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 4.8mm |
| Length | 7.4mm |
| Model | ETQP4M |
| Depth | 7mm |
| Packaging | Tape & Reel |
| Series | ETQP4M |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 6A |
| Pin Count | 2 |
| Maximum DC Resistance | 39.6mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- High heat resistance and stability up to 150°C operating temperature.
- Shielded construction reduces electromagnetic interference.
- Wirewound technology over metal composite core ensures stable inductance.
- Supports maximum DC current of 6 A, ideal for power circuits.
- Surface mount package supplied on tape and reel for assembly.
- Complies with RoHS and automotive standard AEC-Q200 for reliability.
- Low maximum DC resistance of 39.6 mΩ ensures efficiency.
- Designed for low audible noise and vibration resistance.
Product Description
Panasonic ETQP4M shielded wirewound surface mount inductor features a metal composite core delivering robust inductance of 10 μH with ±20% tolerance, optimized for high current and high temperature environments up to 150°C. This component is designed for reliability and durability, utilizing a wirewound construction that ensures stable inductance through ferrous alloy magnetic materials and a shielded design to minimize noise and electromagnetic interference.
The inductor supports a maximum DC current of 6 A, making it ideal for noise filtering and power circuit applications requiring high bias current and temperature stability. Encased in a molded surface mount package with dimensions of 7.4 mm length, 4.8 mm height, and 7 mm depth, it is supplied in tape and reel format ready for automated PCB assembly.
Manufactured to comply with RoHS directives and automotive standard AEC-Q200, this inductor guarantees high vibration resistance and low audible noise for demanding industrial, automotive, and electronic applications. Its two-pin surface mount termination style facilitates efficient installation in compact electronic assemblies.
High heat resistance and high reliability using metal composite core. Shielded construction reduces electromagnetic interference and noise. Integral construction for high vibration resistance and durability. Low DC resistance of 39.6 mΩ ensures efficient operation.
Optimized for operation up to 150°C including self-generated heat. Compliant with RoHS and AEC-Q200 automotive standards. Compact sizing suitable for surface mount technology (SMT) PCB designs. Wirewound inductor construction improves inductance stability.
Enables noise filtering for various drive circuitry and power supplies. Supplied on tape and reel for manufacturing automation.
This Panasonic ETQP4M surface mount inductor is well-suited for use in industrial electronics, automotive systems, power supplies, and noise suppression filters requiring reliable high temperature and high current performance. Explore more Surface Mount Inductors and related passive components on EnvMart to meet your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ETQP4M has an inductance value of 10 μH with a tolerance of ±20%.
This model supports a maximum DC current of 6 A, making it suitable for high current applications.
The maximum operating temperature for this inductor is 150°C, allowing it to perform in high temperature environments.
The dimensions of this inductor are 7.4 mm in length, 4.8 mm in height, and 7 mm in depth.
It features a metal composite core, which contributes to its high heat resistance and stability.
This inductor is supplied in a tape and reel packaging format, which is suitable for automated PCB assembly.
It complies with RoHS directives and the automotive standard AEC-Q200, ensuring reliability and environmental safety.
The maximum DC resistance is 39.6 mΩ, which ensures efficient operation in circuits.
This inductor utilizes a surface mount termination style, facilitating its installation in compact electronic assemblies.
It is suitable for use in industrial electronics, automotive systems, power supplies, and noise suppression filters.
This model features a wirewound construction, which helps in maintaining stable inductance.
The minimum operating temperature for this inductor is -40°C, allowing for use in cold environments.
